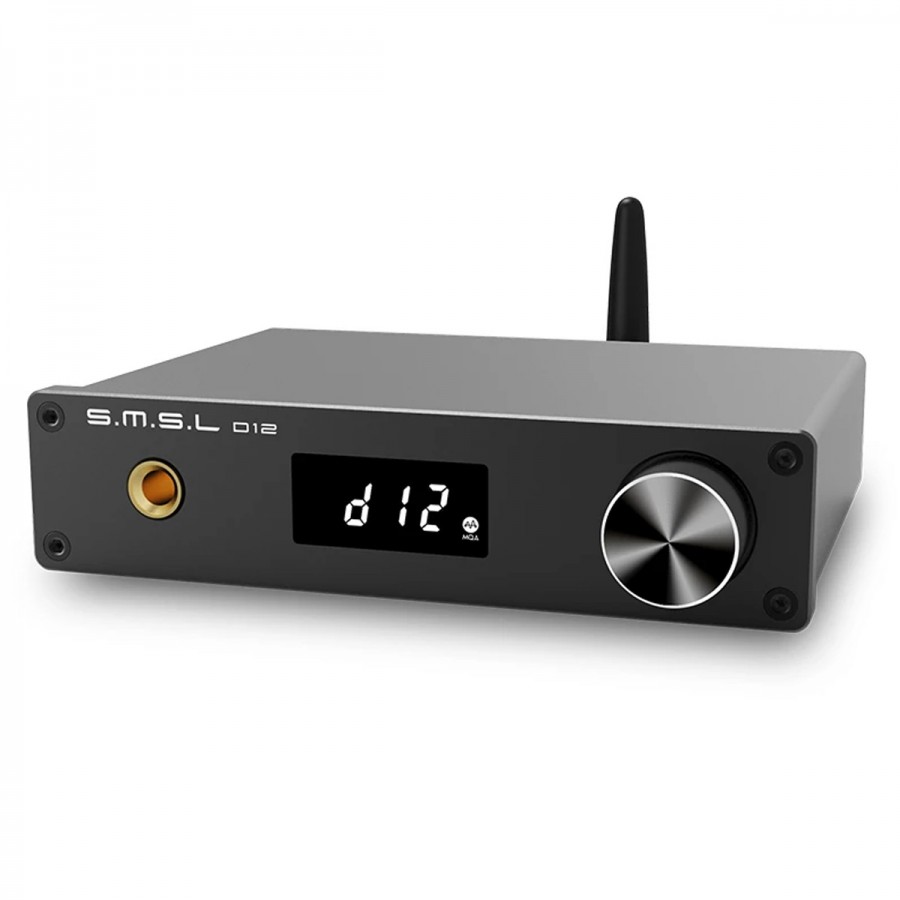

SMSL D12 is a compact and high-performance DAC that uses AKM AK4493S digital-to-analog conversion chip to deliver dynamic, musical and accurate sound. This chip, combined with the advanced XMOS XU316 USB interface, also allows support for high-resolution audio streams up to PCM 32bit 768kHz, DSD512, as well as decoding MQA files.

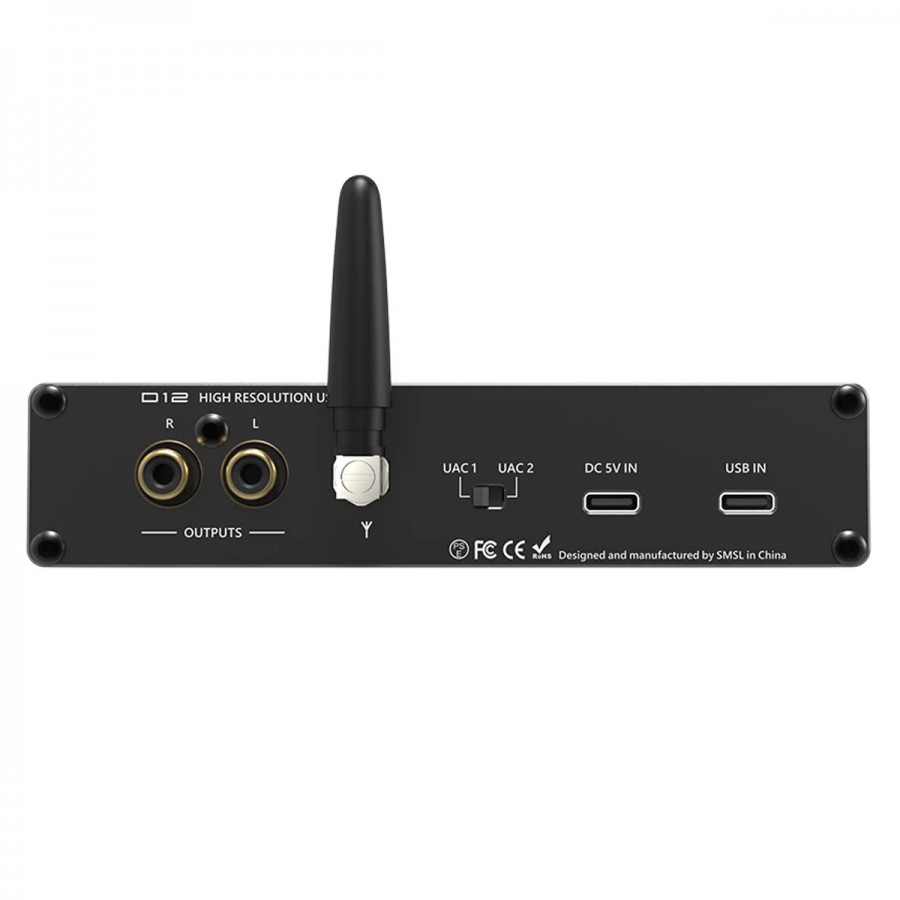

When it comes to connectivity, the D12 is simple and efficient, with USB-C input and Bluetooth 5.0 wireless connectivity. Output is via RCA or via the 6.35mm headphone jack on the front panel.
Characteristics of SMSL D12:
- Product Type: DAC
- Inputs: Bluetooth 5.0/1* USB
- Outputs: 1* stereo RCA/1* headphone output Jack 6.35mm
- DAC chip: AKM AK4493S
- USB interface: XMOS XU316
- Output Level: 2.3Vrms
- Gain: +2.5 dB
- Output power: 400 mW @ 16 ohms / 300 mW @ 32 ohms
- THD+N: 0.00015% (-116 dB)
- Dynamic range: 120 dB
- SNR: 120 dB
- USB Compatibility: Windows 7 / 8 / 8.1 / 10 / 11/Mac OSX10.6 ou ultérieur/Linux/Android/iOS/Sony PS5 (UAC1)/Nintendo Switch (UAC1)
- Supported sampling rates: PCM up to 32 bit 768 kHz/DSD up to DSD512
- Supply Voltage: DC 5V via USB-C
- Consumption: 10W
- Standby consumption: 0.5W
- Dimensions: 139×102.5×33 mm
- Weight: 355 g
