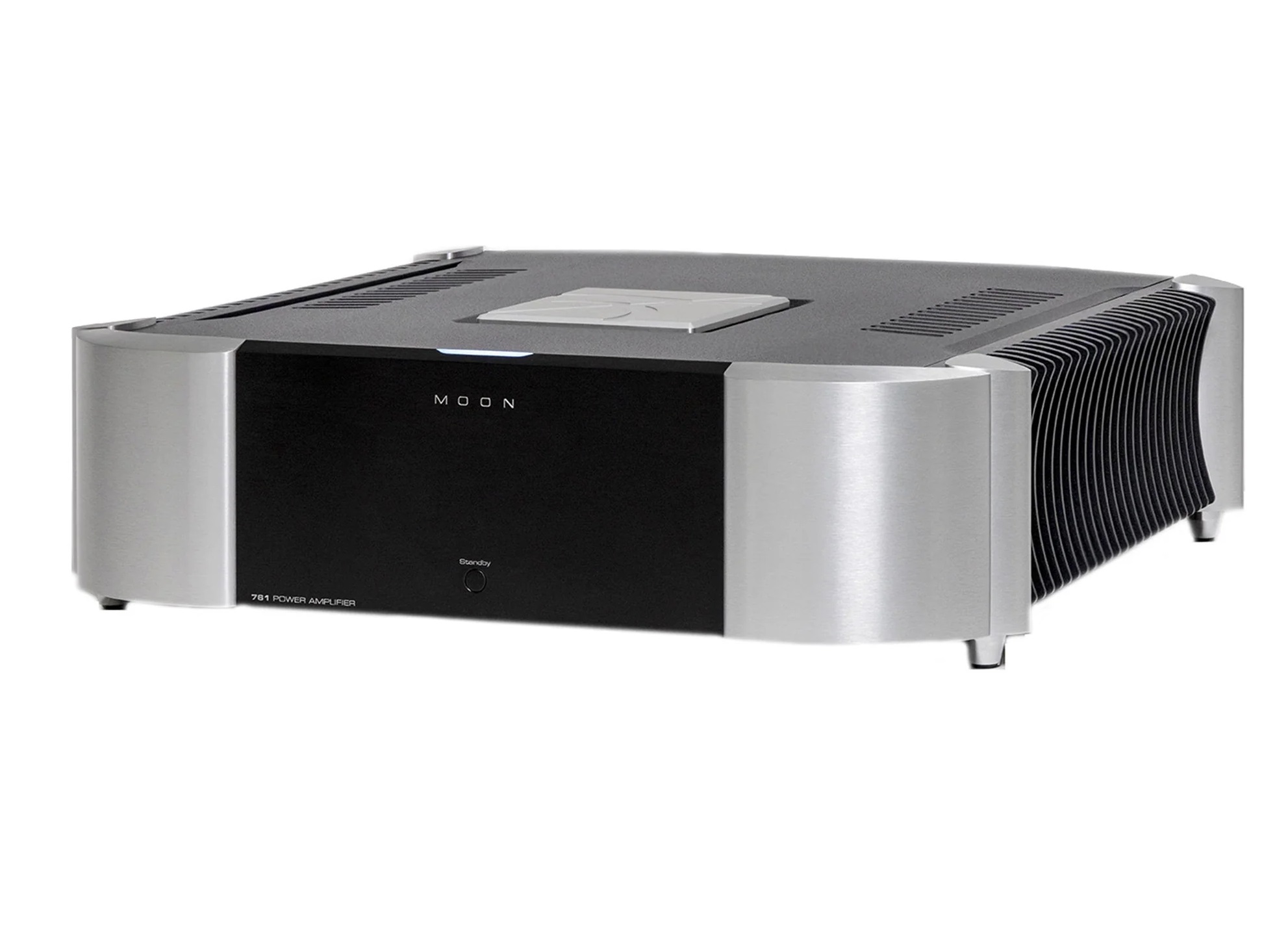

Simaudio MOON 761: Ultimate power amplifier

The Simaudio MOON 761 has one task to do, and it does it with flying colors. This power amplifier effortlessly transfers the finest audio signals from the preamp to the speakers with absolute transparency and grace. This outstanding achievement in design and engineering fully embodies the North Collection ethic, designed to be the foundation of any hi-fi system.

The 761’s front panel LED indicator subtly combines status notifications with the amplifier’s sophisticated MOON styling and exemplary manufacturing standards. The sleek design houses the latest innovations, including MOONLink communications to work in harmony with other MOON products.

The 761 power supply features two custom, low noise 700VA transformers with 152,000uF capacitances and the highest quality semiconductors to ensure consistent performance. This bi-mono amplifier delivers 200 watts per channel into 8 ohms in stereo, doubles the power into 4 ohms, and also has a switch to bridge amps and delivers 600 watts into 8 ohms as a monoblock. The MDCA (MOON Distortion-Cancelling Amplifier) ​​is based on a global feedback-free design philosophy with new circuitry that reduces distortion and noise to previously unattainable levels.

Without a doubt, the 761 is a power amplifier with a rich technical arsenal and a robust design that can stand the test of time.

Characteristics of Simaudio MOON 761 :

• Output power (stereo 8 Ω) 200 W
• Output power (stereo 4 Ω) 400 W
• Output power (mono 8 Ω) 600 W
• Input sensitivity 1.1 V
• Input impedance 47 kOhm
• Gain 31 dB
• Frequency response 2 Hz – 100 kHz (+0 dB / -3 dB)
• Crosstalk -116 dB
• Signal-to-noise ratio 117 dB
• Total harmonic distortion + noise (@ 1 W) 0.002%
• Total harmonic distortion + noise (@ 125 W) 0.001%
• Intermodulation distortion 0.002%
• Damping factor 800
• Power consumption (idle) 55 W
• Power consumption (full standby power) 50 W
• Power consumption (reduced standby power) 1.25 W
• Transport weight 36 kg
• Dimensions 48.1 x 14 x 44.5 cm
