Tonewinner launches SW-D4000 and SW-D6000 active subwoofers

Avatar photoFrancis Adamiak·
Speakers
·
Home
Speakers

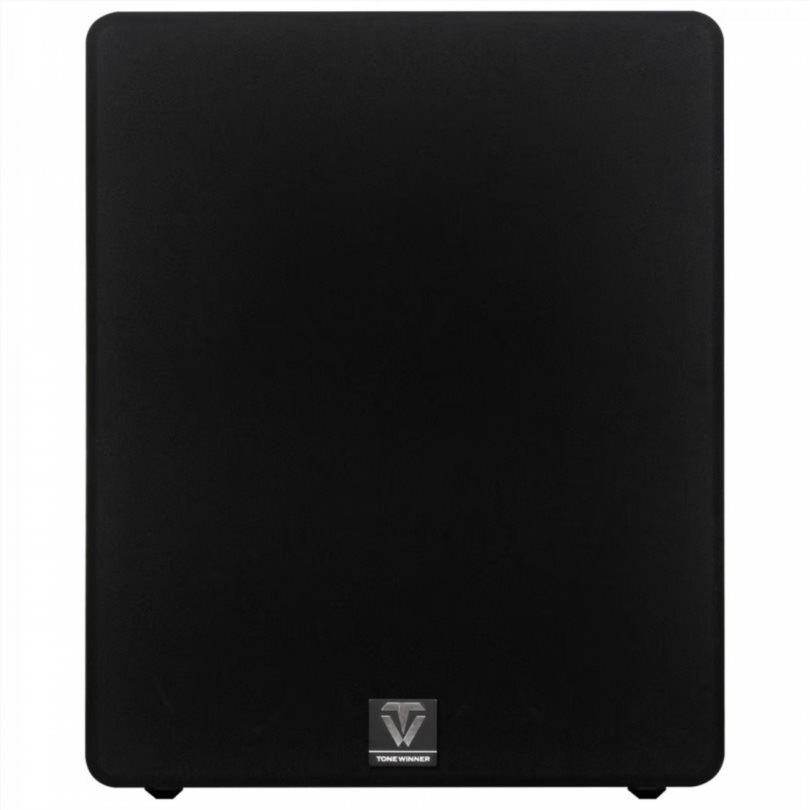

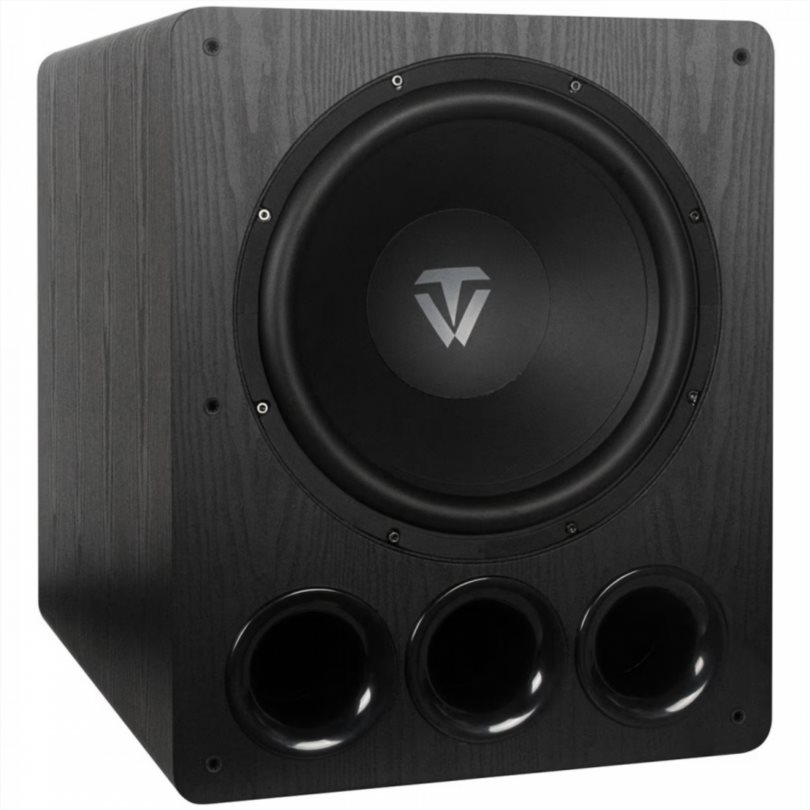

Tonewinner SW-D6000 and Tonewinner SW-D4000 are active subwoofers with a bass reflex. This model is equipped with a large 38 cm speaker, powered by an 800 W amplifier stage. Plus, it features DSP to fine-tune the subwoofer’s parameters to perfectly match your system and listening room. This SW-D6000 is ideal for home theater, delivering deep, punchy bass for complete immersion.

Tonewinner SW-D6000

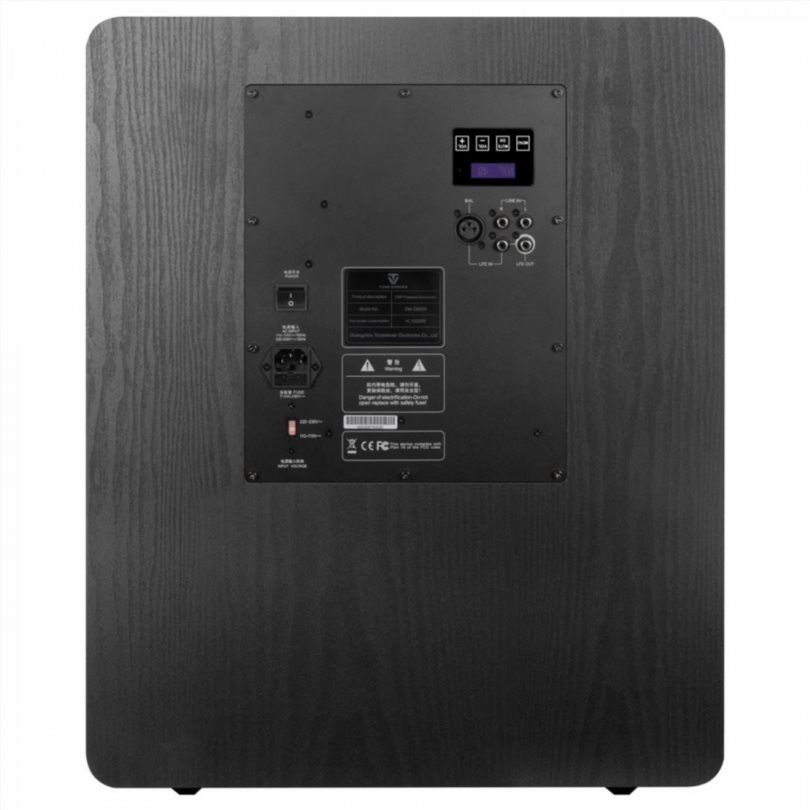

The rear panel of the Tonewinner SW-D6000 features dual RCA unbalanced and XLR balanced LFE inputs, as well as an RCA line input and RCA LFE output. Thus, the SW-D6000 is able to integrate into most home theaters and even HiFi audio systems. Moreover, its output allows you to connect a second subwoofer.

Tonewinner SW-D6000

To perfectly match your audio system and listening room, the SW-D6000 features its own DSP and EQ, accessible directly from the rear panel. The LCD display shows the settings in real time. These settings can also be accessed remotely through the free Tonewinner mobile app. There are several preset DSP modes available, but you can go further and customize the subwoofer’s EQ yourself.

Tonewinner SW-D6000

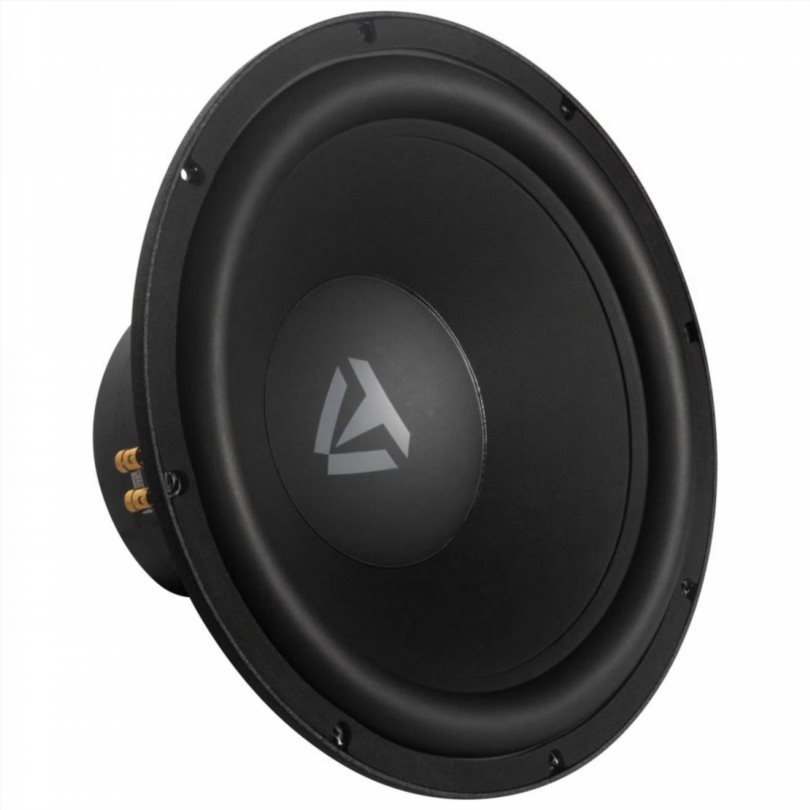

The Tonewinner SW-D6000’s large 38cm speaker can go very low and without distortion to more than convincingly reproduce the bass of your music and movies. It features a rigid diaphragm that limits distortion even when the driver is driven significantly.

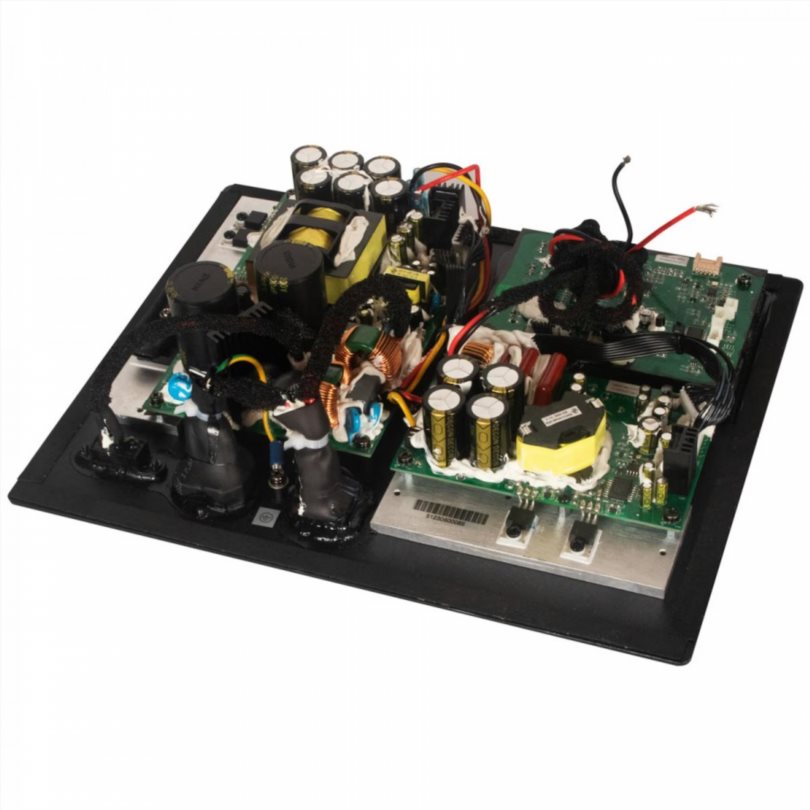

The 800W amplifier stage provides powerful and dynamic bass response, allowing the subwoofer to respond effectively to the input signal. Thus, the SW-D6000 is able to go down to 15 Hz without any problems.


Characteristics of Tonewinner SW-D6000:

  • Product Type: Active Subwoofer
  • Loudspeaker diameter: Ø38 cm
  • Amplification Type: Class D
  • Output power: 800W
  • Frequency response: 15 Hz – 220 Hz
  • Phase adjustment: 0 – 180°
  • Impedance: 3 ohms
  • Body material: MDF
  • DSP/EQUALIZER
  • Inputs: 1x LFE XLR/1x LFE RCA/1x RCA line input
  • Output: 1x LFE RCA
  • Dimensions: 480 x 598 x 628 mm
  • Weight: 43 kg



Characteristics of Tonewinner SW-D4000:

  • Product Type: Active Subwoofer
  • Loudspeaker diameter: Ø30 cm
  • Amplification Type: Class D
  • Output power: 800W
  • Frequency response: 16 Hz – 240 Hz
  • Phase adjustment: 0 – 180°
  • Impedance: 3 ohms
  • Body material: MDF
  • DSP/EQUALIZER
  • Inputs: 1x LFE XLR/1x LFE RCA/1x RCA line input
  • Output: 1x LFE RCA
  • Dimensions: 440 x 533 x 558 mm
  • Weight: 33 kg
