Esoteric’s New XE Duo Packs Flagship DAC Tech and Pure Class-A Power into One Stunning High-End System

Japanese high-end audio specialist Esoteric has introduced a new generation of electronics under the XE series banner. The launch includes two core components: the N-05XE network player with integrated DAC and preamplifier, and the S-05XE Class-A stereo power amplifier. Both models are scheduled to reach the market in March 2026.

Rather than reinventing the concept from scratch, Esoteric describes the XE series as a thoroughly refined evolution of its predecessors. The new models retain the core design philosophy that defines the brand—massive construction, dual-mono architecture, and uncompromising circuit integrity—while introducing updated digital platforms, improved analog stages, and greater system flexibility.

Available in both silver and black finishes, the XE components are positioned as a compact, reference-level two-box system for listeners who want flagship-inspired performance without stepping into the cost and complexity of the Grandioso series.

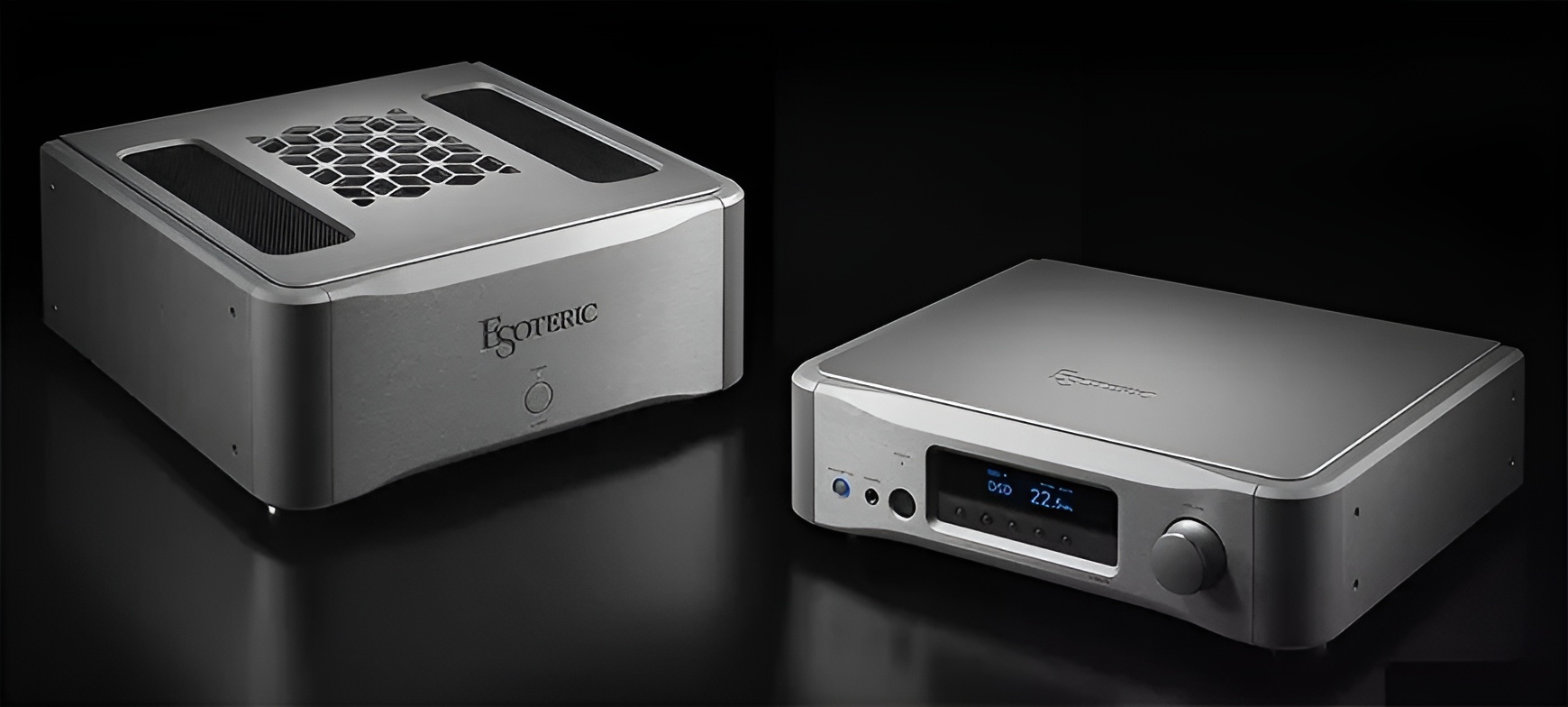

The Esoteric N-05XE and S-05XE form a compact two-box system built around discrete DAC technology and pure Class-A amplification.

Esoteric N-05XE: Network Player, DAC, and Balanced Preamplifier in One Chassis

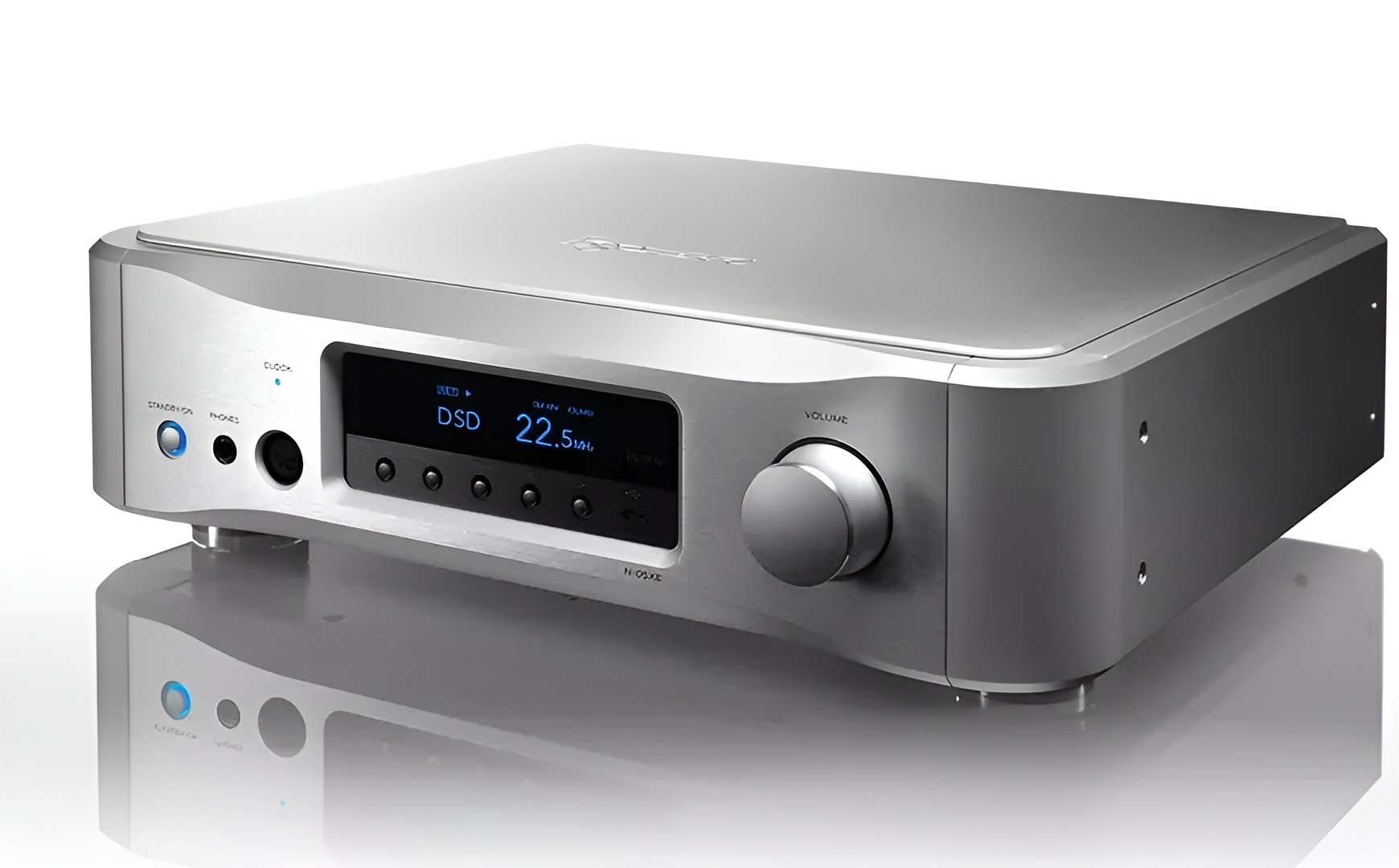

The N-05XE combines streaming, discrete DAC conversion, and a balanced preamp in a single precision-built chassis.

At the heart of the new lineup sits the Esoteric N-05XE, a single-chassis solution that combines network streaming, a discrete DAC, a fully balanced preamplifier, and a dedicated headphone stage.

The most significant upgrade lies in its digital architecture. The N-05XE employs Esoteric’s new G4 network platform, now with support for optical SFP connections, alongside the Master Sound Discrete DAC G2—a design derived from technologies first developed for the flagship Grandioso N1.

Unlike conventional DAC designs built around off-the-shelf chips, the N-05XE uses a fully discrete FPGA-based conversion architecture. Esoteric’s proprietary algorithms handle PCM and DSD processing, with a 64-bit delta-sigma modulator operating at 512 fs. Low-noise register networks and precision MELF resistors are said to improve linearity, reduce noise, and stabilize spatial imaging.

Clocking duties are handled by a Master Sound Discrete Clock module, with the option to connect an external 10 MHz master clock for even greater timing accuracy.

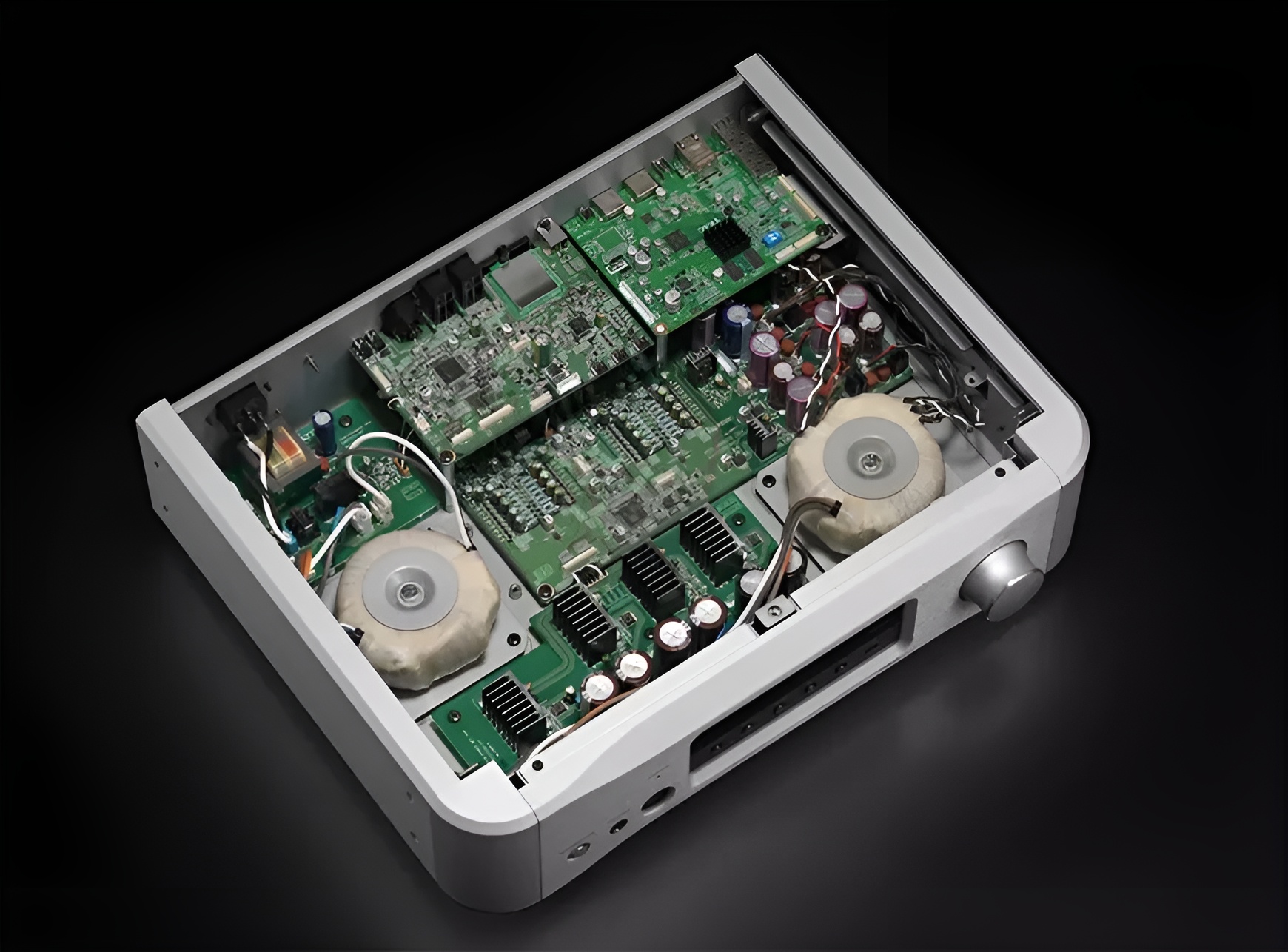

The N-05XE brings Master Sound Discrete DAC technology and advanced network streaming into one elegant component.

Streaming and connectivity

The N-05XE is designed to serve as the digital hub of a high-end system. It supports:

Native DSD playback up to 22.5 MHz
Two directly connected USB storage devices
TIDAL Connect, Qobuz Connect, Spotify Connect, Roon, and QQ Music
Control via the Esoteric Sound Stream app or OpenHome-compatible apps

Bluetooth is included for convenience, supporting LDAC, LHDC, aptX HD, aptX, AAC, and SBC, though the design clearly prioritizes high-quality wired connections.

Fully balanced analog stage and headphone amplifier

Internally, the N-05XE follows a strict dual-mono layout, with independent channels and power supplies. The balanced preamplifier section borrows circuit concepts from the Grandioso series and uses a separate power supply for the volume control stage. A proprietary HCLD buffer ensures stable drive capability across connected amplifiers.

For headphone listeners, the N-05XE includes a balanced dual-mono headphone amplifier delivering up to 1.2 watts per channel into 32 ohms. Outputs include:

4-pin XLR (balanced)
6.35 mm single-ended jack

Supported headphone impedance ranges from 16 to 600 ohms, making it suitable for everything from sensitive in-ears to demanding planar designs.

Esoteric S-05XE: Pure Class-A Stereo Power Amplifier

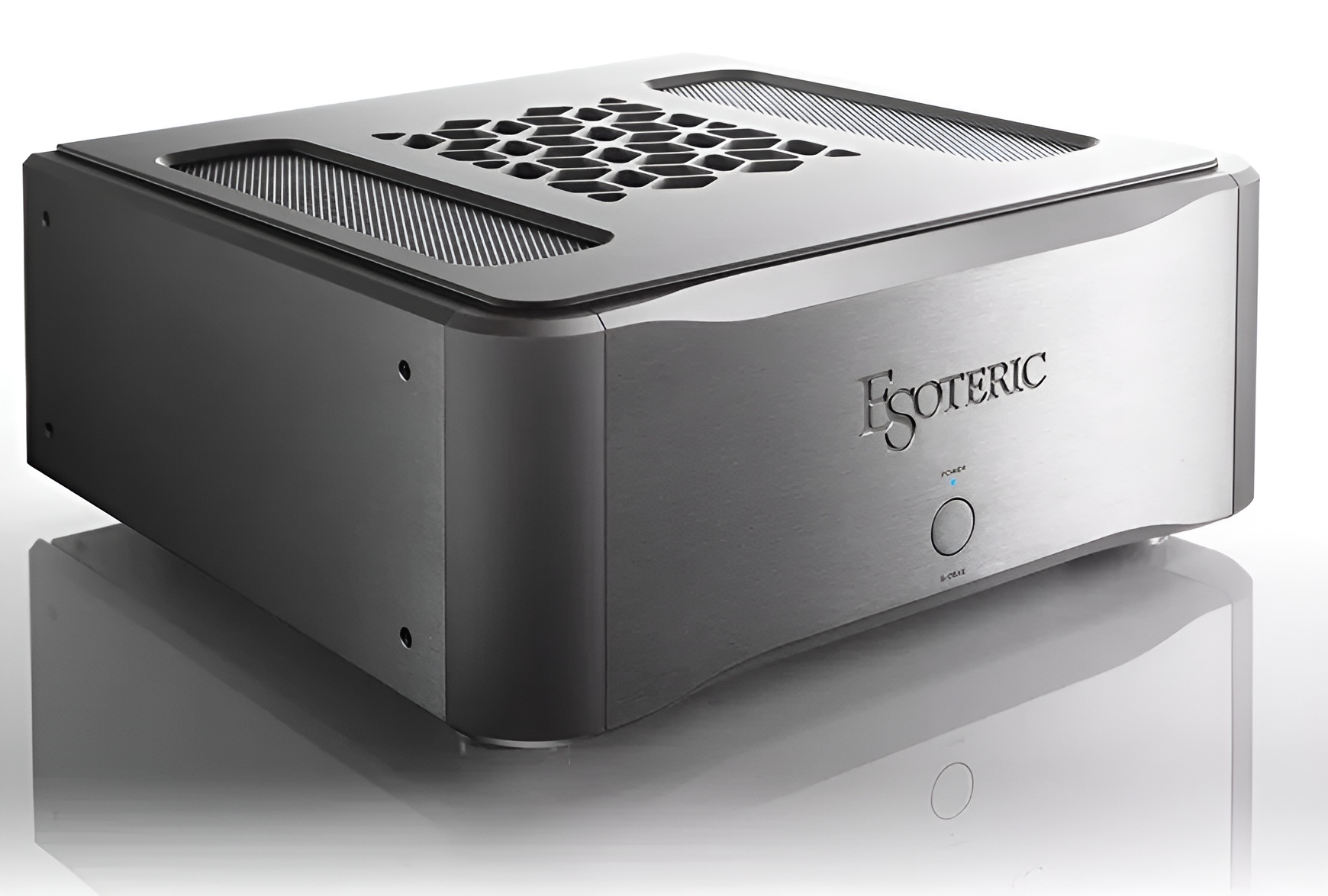

Esoteric’s S-05XE delivers pure Class-A power with a dual-mono layout and custom toroidal transformer

Designed as the natural partner to the N-05XE, the S-05XE is a pure Class-A stereo power amplifier built around Esoteric’s long-standing principles: channel independence, low noise, and tonal purity over raw output figures.

The amplifier delivers:

30 watts per channel into 8 ohms (Class A)
60 watts per channel into 4 ohms
120 watts in bridged BTL mode into 8 ohms

Its internal structure follows a true dual-mono topology, with independent power supplies and a large custom toroidal transformer. The S-05XE also supports bi-amp and bridged configurations, allowing it to adapt to a wide range of system layouts while maintaining Class-A operation.

Built Like Flagships

Both XE components continue Esoteric’s obsession with mechanical integrity and vibration control. Key construction features include:

Semi-floating top panels
Extremely rigid chassis structures
Proprietary Pinpoint isolation feet

These design elements aim to reduce mechanical resonance and preserve spatial accuracy. As with all Esoteric electronics, both models are manufactured in Tokyo.

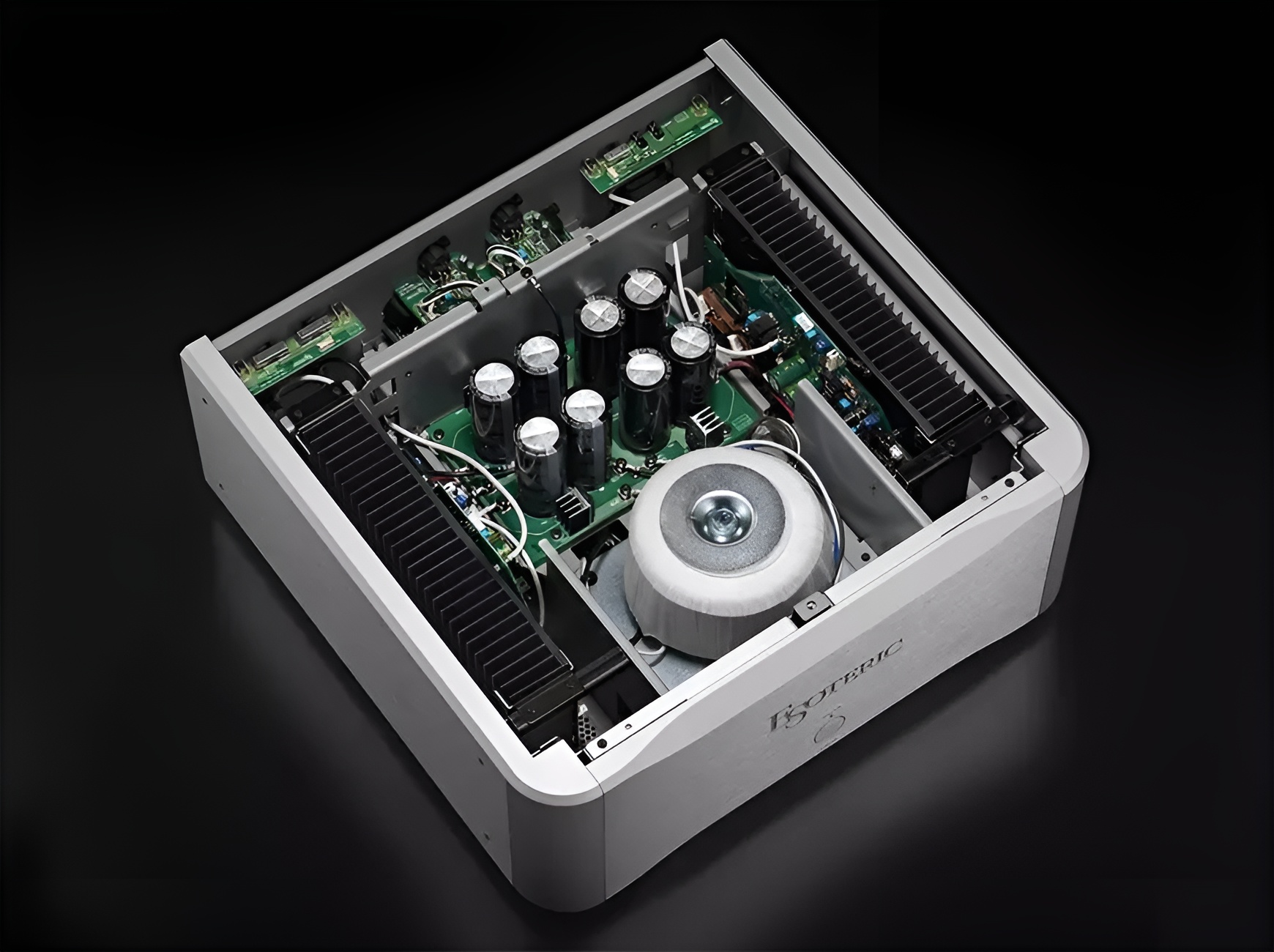

A reference-grade digital front end and Class-A amplification define the philosophy behind the new XE series.

A Compact Reference-Class System

With the XE series, Esoteric is effectively distilling flagship technology into a more compact, two-box solution. The N-05XE handles streaming, conversion, preamplification, and headphone duties, while the S-05XE provides pure Class-A amplification for speakers.

The approach is clearly aimed at listeners who want reference-level digital playback and Class-A sound in a simpler, space-efficient system—without stepping up to the cost or scale of the Grandioso line.
