Marantz NR1711: AV receiver equipped with advanced sound optimization

Marantz NR1711 supports 8K video at 60 Hz, and the 4K display frequency can reach 120...

Marantz NR1711
Marantz NR1711

The new product from Marantz — the NR1711 AV receiver — supports 8K video at 60 Hz, and the 4K display frequency can reach 120 Hz. The AV receiver is equipped with advanced sound optimization taking into account the acoustic characteristics of the room using Audyssey MultEQ XT 9. Marantz NR1711 occupies the top position in the NR line of AV receivers with low-profile cases, the height of which is half the height of conventional full-size devices. The model supports object-oriented 3D sound formats DTS:X and Dolby Atmos in 5.1.2-channel version. The DTS Virtual:X codec and Dolby Atmos Height Virtualization Technology are available to simulate the sound of ceiling or specialized speakers in multi-channel systems not equipped with such speakers. There is also a 4K upscaling function on board.


Seven high-current discrete amplifiers provide 90 W per channel at 6 Ohms, and the AV receiver works confidently even with a 4-Ohm load. The Audyssey MultEQ system helps calibrate the speakers. In addition, the model uses technologies for optimizing volume and frequency response – Dynamic Volume and Dynamic EQ. The receiver is compatible with personal assistants Google Assistant, Apple Siri and Amazon Alexa, allowing you to give it voice commands. To control the Marantz NR1711, you can use the proprietary application or the standard remote control.


The Marantz NR1711 receiver can be used as a streamer, which allows you to listen to audio (including Hi-Res formats ALAC, FLAC and WAV up to 24 bit/192 kHz and DSD up to 5.6 MHz) from computers/servers on a local network or via a USB port located on the front. With a web connection, you can access streaming services Deezer, Spotify Connect, Tidal, TuneIn, etc. The model is equipped with Bluetooth and Wi-Fi circuits with two ranges, which allows the Marantz NR1711 to feel confident even in busy Wi-Fi networks. Support for the AirPlay 2 protocol helps organize a wireless multi-room system based on iOS devices. The AV receiver can also work as part of the HEOS wireless ecosystem. All components of the HEOS system can be controlled using a single application and broadcast audio from smartphones, streaming services and local networks to them. You can synchronize playback of the same audio track in different rooms or ensure the transmission of selected content to a selected group of HEOS devices.

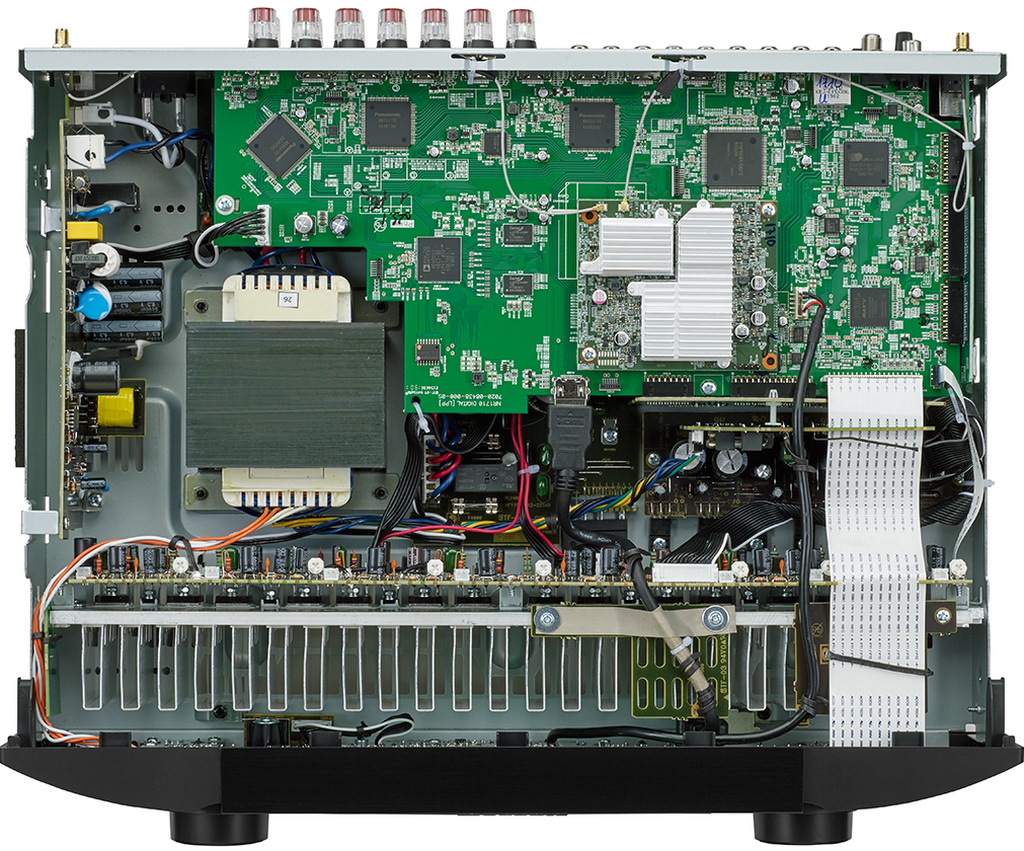

marantz nr1710 gold 2.jpg

The device received six HDMI ports with support for the HDCP 2.3 protocol, 8K resolution, as well as Dolby Vision, HLG and HDR10 video standards. There is support for the ALLM low-latency gaming auto mode for Xbox One consoles. There is an HDMI output with an extended eARC return channel that works with DTS:X, Dolby Atmos, Dolby TrueHD and other codecs. It is worth noting the presence of S / PDIF inputs, 2.2-channel Pre Out and Pre Out for zone 2. The model is equipped with an MM phono preamplifier, and for the speakers there are seven pairs of color-coded screw terminals.

Marantz NR1711 Specifications

Number of channels 7.2
Seven high-current discrete amplifiers
Output power 50 W per channel (8 ohms, 20 Hz – 20 kHz, THD: 0.08%, 2 channels driven), 70 W per channel (6 ohms, 1 kHz, THD: 0.7%, 2 channels driven), 90 W per channel (6 ohms, 1 kHz, THD: 1%, 1 channel driven), 100 W per channel (6 ohms, 1 kHz, THD: 10%, 1 channel driven)
Input sensitivity 130 mV (analog line input), 2.5 mV (MM phono equalizer)
Frequency response 10 Hz – 100 kHz (+ 1, – 3 dB, Direct mode, analog connectors)
Signal-to-noise ratio 98 dB (analog line connectors, Direct mode) Direct)
AM / FM tuner
Built-in decoders (main) DTS:X (up to 5.1.2), DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Digital Surround, DTS 96/24, DTS Express, Dolby Atmos (up to 5.1.2), Dolby Atmos Height Virtualization Technology, Dolby Digital Plus, Dolby TrueHD, Dolby Surround
Pure Direct, Direct modes
Support for wireless multi-room network HEOS
Supported audio formats (via local network and USB) MP3, WMA, AAC, FLAC, FLAC HD (24 bit / 192 kHz), ALAC (24 bit / 192 kHz), WAV (24 bit / 192 kHz), DSD (up to 5.6 MHz)
MDAX2 compressed audio enhancer
Gapless playback mode for FLAC, WAV, ALAC, DSD
Supported web services TuneIn, Spotify Connect, Tidal, Deezer, Amazon Prime Music and others.
Network audio streaming is supported .
Audyssey MultEQ speaker calibration system.
Audyssey Dynamic EQ/Dynamic Volume technologies are supported.
Support for the paid Audyssey MultEQ Editor App for more precise adjustment of speaker calibration settings is available.
ISF certification for professional video calibration yes
ISF (day) / ISF (night) modes yes
Wi-Fi support IEEE 802.11a / b / g / n, 2.4 / 5 GHz
Bluetooth support version 4.1, maximum range: up to 30 m
AirPlay / AirPlay 2 support
8K, 4K support (50 / 60 Hz, 4: 4: 4 Pure Color)
HDMI pass-through in standby mode
8K resolution pass-
through 3D video pass-through
Control with the Marantz AVR Remote app via iOS, Android devices and Amazon Kindle Fire tablets yes
IP address control yes
Voice control supported via Amazon Alexa, Google Assistant, Apple Siri
Setup Assistant
Number of add. Zone 1
Inputs 6 x HDMI (8K, HDCP 2.3, HDR10, Dolby Vision, HLG, BT.2020), 3 composite, 2 component, 3 line RCA, MM phono input (RCA), coaxial, optical, USB for external storage (on the front panel), LAN interface
Outputs HDMI (8K, HDCP 2.3, ARC, eARC, CEC), composite, component, 2.2-channel Pre Out (RCA), Pre Out (RCA) for zone 2, 6.3 mm headphone jack
Other connections 3.5 mm for calibration microphone, 2 system bus connectors, trigger output (12 V), jacks for AM / FM antennas, 2 jacks for Wi-Fi / Bluetooth antennas, ground terminal
Support for gaming automatic low latency mode ALLM (Auto Low Latency Mode) for Xbox One consoles
Support for the CEC control protocol for working with Smart TV yes
Terminals for AC 7 pairs of color-coded screw terminals (4–16 Ohm)
Eco mode
Power consumption 250 W, standby: 0.2 W
Power consumption in idle mode without sound 30 W (eco mode), 40 W (without eco mode)
Remote control RC035SR
Dimensions (WxHxD) 440x105x368 mm
Weight 8.4 kg
