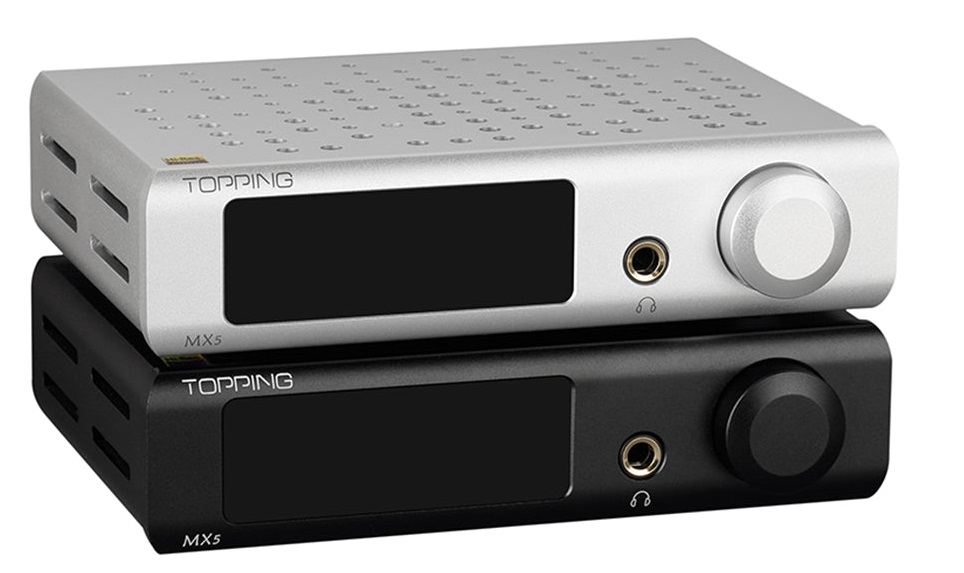

Topping needs no introduction when it comes to desktop HiFi audio products . They are leading manufacturers of both budget and high-end desktop devices, including DACs and amplifiers. Topping has announced its latest desktop universal DAC/Headphone Amplifier/Power Amplifier, bringing you the all-new Topping MX5 . The MX5 is the successor to the well-known Topping MX3. It is equipped with top-notch ESS Saber DAC chip paired with XMOS USB processor and high-performance Qualcomm QCC Bluetooth chip for high-resolution audio decoding and support Bluetooth wireless input.
Topping equipped the MX5 with an NFCA headphone amplifier, delivering up to 1.6W of output power into 32 ohms. They also equipped the MX5 with the Infineon Merus Class D Power Amplifier chipset, delivering 70W of clean power output to your speakers at 4Ω load and 10% THD+N, even at high quality 1% THD+N it produces 55W of clean power. Topping MX5 is an all-in-one device.
Peculiarities
- Premium ESS Saber DAC chip.
- XMOS USB processor.
- Merus Class D power amplifier chipset.
- NFCA headphone amplifier chipset.
- Supports digital and analog inputs.
- The latest Bluetooth chip from Qualcomm.
- Low and high frequency equalizer.
- Two-stage amplification for headphone amplifier and power amplifier.
- Automatic on/off.
- User settings memory.
- Remote control.
- Hi-Res Audio Certified.
Your All-In-One Desktop HiFi Audio Solution with One Device

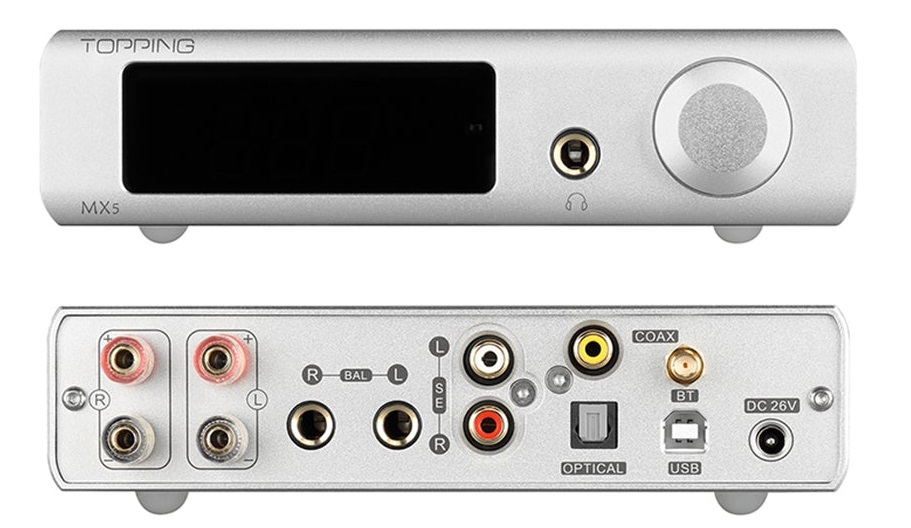

Topping MX5 is the single device you need in your desktop HiFi audio system. It is equipped with a top-notch ESS Saber DAC chip, which is supported by a high-quality XMOS USB processor, providing high resolution 32-Bit/384kHz PCM, as well as support for DSD256 decoding. Additionally, it features a high-performance headphone amplifier circuit as well as a Class D power amplifier circuit. Whatever use case you choose, headphones or speakers, Topping MX5 is designed for you.
Topping MX5-2
Merus Class D Power Amplifier
Designed specifically for your HiFi speaker systems, the Topping MX5 features a Class D power amplifier from Infineon Menus. It achieves an output power of 70Wx2 into a 4 ohm load (THD+N 10%). With a high quality THD+N of 1%, the MX5 produces up to 55Wx2 pure power (4Ω). With an 8Ω load, the Topping MX5 delivers up to 42Wx2(10% THD+N), and 35Wx2(1% THD+N). This is quite enough to power your speakers and revitalize their sound.
NFCA Headphone AMP Circuit.
Topping MX5 features an optimized NFCA headphone amplifier circuit that delivers clean, powerful output with ultra-low noise and distortion. It works equally well with high-sensitivity IEMs and power-hungry headphones, with an output power of up to 1600mW@32ohm load.
Price: $299
