The Marantz PM5005 amplifier, positioned as an entry-level option, shares several similarities with its predecessor, the PM5004, which is also an affordable model. Notably, both amplifiers utilize current feedback technology, a feature that was previously reserved for higher-end models. This innovation facilitates precise and rapid processing of audio signals, resulting in exceptionally detailed and well-balanced stereo sound with an expansive soundstage. Furthermore, both models deliver the same output power of 40 W per channel when paired with 4-ohm speakers, and they can achieve 2 × 55 W at an 8-ohm load.
The Marantz amplifier offers several features that set it apart from the previously mentioned PM5004 model. Notably, it incorporates proprietary HDAM-SA3 modules and comes with the RC002PMCD remote control. This remote allows users to manage not only the amplifier but also a CD player and a network player from the same brand.

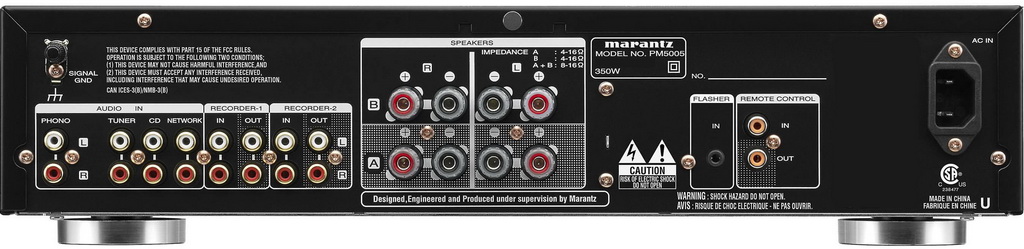

The Marantz PM5005 amplifier features five linear inputs along with a pair of recording outputs. It includes a built-in phono preamplifier and offers four pairs of speaker terminals, allowing for the connection of two pairs of speakers in separate rooms. Additionally, all the RCA connectors are equipped with gold-plated contacts.
The Marantz PM5005 amplifier features a current feedback circuit designed to provide compatibility with a range of loads while maintaining a consistent frequency response. Key areas of the amplifier’s circuitry that impact sound quality are outfitted with carefully selected audiophile-grade components. This model delivers up to 55 W when driving a 4-ohm load, making it suitable for medium-sized rooms. It is highly compatible with a variety of well-known speaker brands, including both bookshelf and compact floor-standing options, positioning it as an excellent foundation for a high-quality stereo system.
Marantz PM5005 Specifications
- Number of channels: 2
- Power: 2 x 40 W (8 Ohm), 2 x 55 W (4 Ohm)
- Harmonic distortion: 0.01%
- Damping factor: 100
- Input sensitivity/impedance:
- 2.2 mV/47 kOhm (Phono)
- 200 mV/20 kOhm (linear)
- Frequency range: 10 Hz – 50 kHz (+0, -1 dB)
- Signal-to-noise ratio:
- 83 dB (Phono)
- 103 dB (linear signal)
- Tone control: LF, HF (+/- 10 dB)
- Inputs:
- Phono
- CD
- Tuner
- Network
- 2 Recorders
- Control system
- Outputs:
- 2 Recorders
- Headphones
- Control system
- 2 pairs of speakers
- Power consumption: 110 W
- Minimum power consumption in standby mode: 0.3 W
- Dimensions (WxHxD): 440 x 105 x 370 mm
- Weight: 6.7 kg
Price: $350
