Tonewinner AD-60: Class AB integrated power amplifier

The Tonewinner AD-60 is an integrated power amplifier that delivers 2x80W of power into 4Ω while maintaining very low distortion and response time thanks to its Class AB design. Plus, its wide selection of connectors allows it to be used in a...

Tonewinner AD-60
Tonewinner AD-60

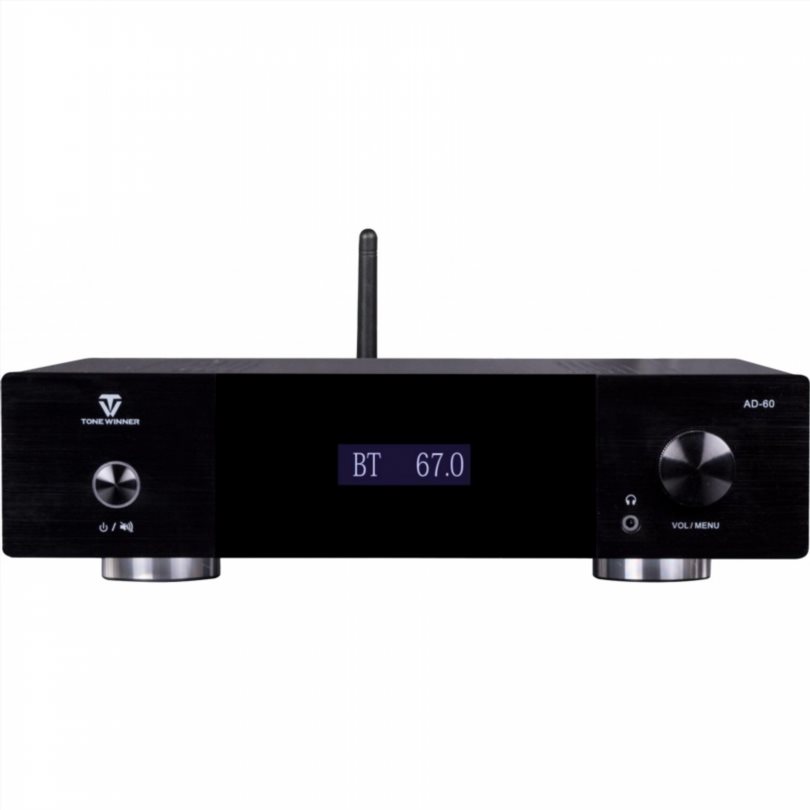

The Tonewinner AD-60 is an integrated power amplifier that delivers 2x80W of power into 4Ω while maintaining very low distortion and response time thanks to its Class AB design. Plus, its wide selection of connectors allows it to be used in a variety of configurations, from home theater with HDMI/ARC to remote use with a simple Bluetooth 5.0 connection.

Tonewinner AD-60

The Tonewinner AD-60 is powered by up to 100W of toroidal transformer combined with high-performance capacitors to produce a clean, constant electrical signal ideal for hi-fi use.

Tonewinner AD-60

As for the amplifier stage, the Tonewinner AD-60 can output 2x80W into 4Ω and 2x50W into 8Ω while delivering amazingly transparent sound. Its volume control, combined with coupling and filtering capacitors, ensures minimal signal change, with total output harmonic distortion of just 0.025% and an impressive frequency response of 20 Hz to 100 kHz.

Tonewinner AD-60

Characteristics of Tonewinner AD-60:

  • Product Type: Integrated Amplifier
  • Amplification Type: Class AB
  • Number of channels: Stereo (2)

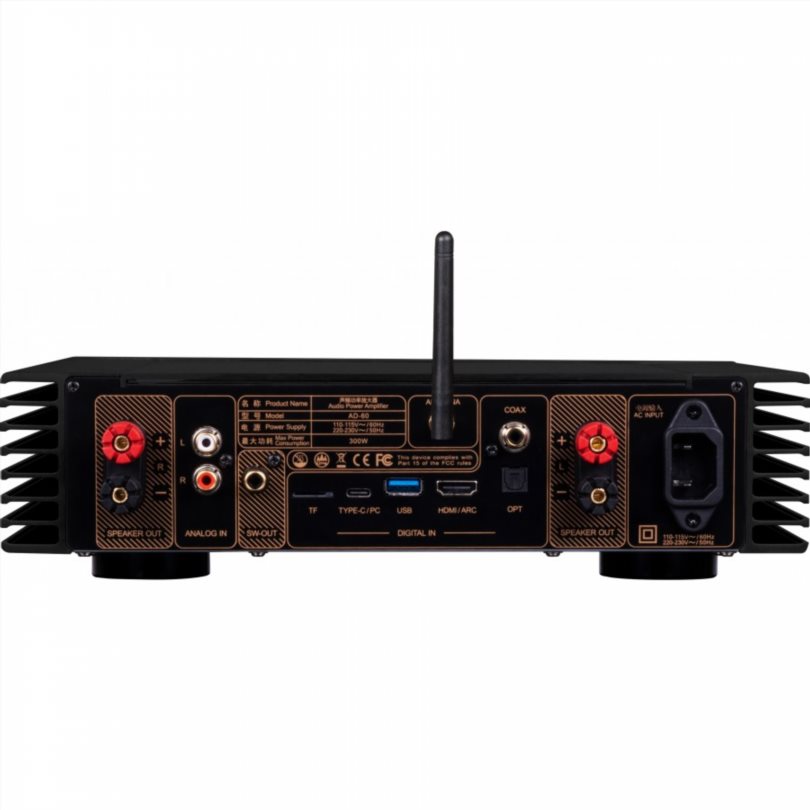

  • Inputs: 1x USB-A/1x USB-C/1x Slot card TF/1x HDMI ARC/1x Optical Toslink/1x Coaxial/1x Stereo RCA/1x Bluetooth 5.0
  • Outputs: 1x Stereo Speaker/1x 3.5mm Jack Headphone Out/1x Subwoofer Out
  • Output Power: 80W @ 4Ω / 50W @ 8Ω
  • Total Harmonic Distortion (THD): ≤ 0.025% @1kHz
  • Input impedance: 20kΩ
  • Signal to Noise Ratio (SNR): 100 dB
  • Frequency response: 20 Hz – 100 kHz (+1/-3 dB)
  • Gain: 23.9 dB
  • Supply voltage: 115V/60Hz/230V/50Hz
  • Dimensions: 300 x 335 x 83 mm
  • Net weight: 5.5kg
  • Color: black or silver
