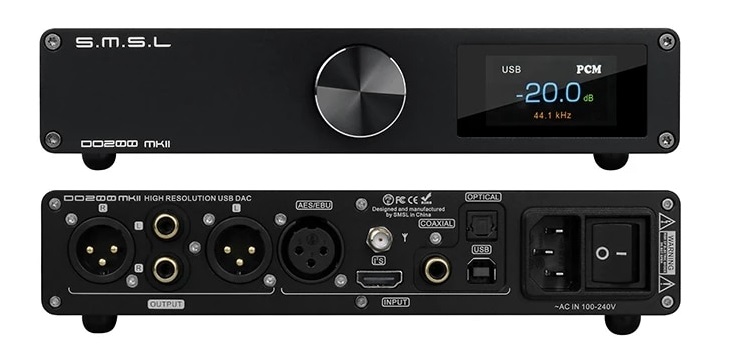

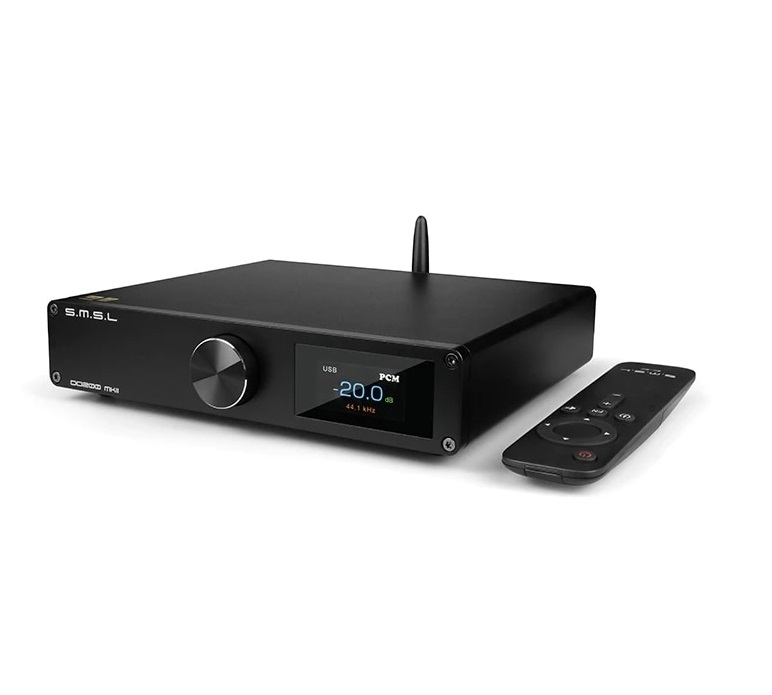

SMSL has updated its popular Bluetooth DAC to the DO200 MKII . The device is based on two high-quality ES9068AS DAC chips from ESS. Bluetooth also supports APTX/APTX HD/LDAC codecs.
High-tech decoding chips
The SMSL DO200 uses two excellent ES9068AS chips from the American company ESS, paired with five high-end OP1612A dual op-amps and a large number of audio-grade components. ES9068AS is used in some high-end products, has excellent technical performance, MQA hard solution function and relatively low power consumption performance. This chipset delivers distortion-free, high-quality sound rich in detail, and USB and SPDIF support MQA and MQA-CD decoding function.
Superior CNC aluminum alloy body
DO200 MKⅡ has superior appearance with tempered glass display panel on the screen and integrated aluminum alloy body, which effectively prevents oxidation. The use of non-magnetic raw materials allows not only to shield interference from external magnetic fields, but also to be free of magnetic fields. At the same time, the screen has a higher transmittance and a longer service life. It is also worth noting that the DO200 MKII features exquisite craftsmanship and a gentle touch.
Low Noise Power Supply
The DO200 MKII features a low noise power supply with a specially designed discrete component. Thanks to the built-in shielding, the power supply can be stabilized. This improves energy efficiency and reduces energy consumption.
Firmware Upgrade Function
The SMSL DO200 MKII USB interface has a built-in firmware upgrade function, which means you can upgrade the firmware at your convenience. Last but not least, the firmware can be updated independently! The SMSL DO200 MKⅡ
full-featured remote control features a functional knob with a high-resolution IPS color display on the front panel with a screen mute function.
It also comes with the new SMSL remote control, which is more convenient to operate and has better quality.
Characteristics of SMSL DO200 MKII:
- THD+N: 0.00008% (-122 dB)
- Dynamic Range：XLR 129 dB
- RCA:125dB
- SNR：128dB
- Output impedance: 100Ω
- Input: USB/Optical/Coaxial/Bluetooth/2S/AES/EBU
- Output: RCA/XLR
- USB Transfer: Asynchronous
- USB bit depth: 1 bit, 16-32 bit
- Optical/Coaxial/AES/EBU: 1bit, 16~24bit
- DSD 2.8224-22.5792 MHz
- Optical/Coaxial/AES/EBU
- PCM: 44.1-192 kHz
- DSD:DSD64(DoP)
- Bluetooth Specification
- BT 5.0 (support SBC/AAC/APTX/APTX HD/LDACN)
- Power consumption: 5W
- Standby power: <0.5W
- Size: 210 x43×185 mm (WxHxD)
- Machine weight: (including remote control) 1.2kg
- Package weight: 1.9 kg
