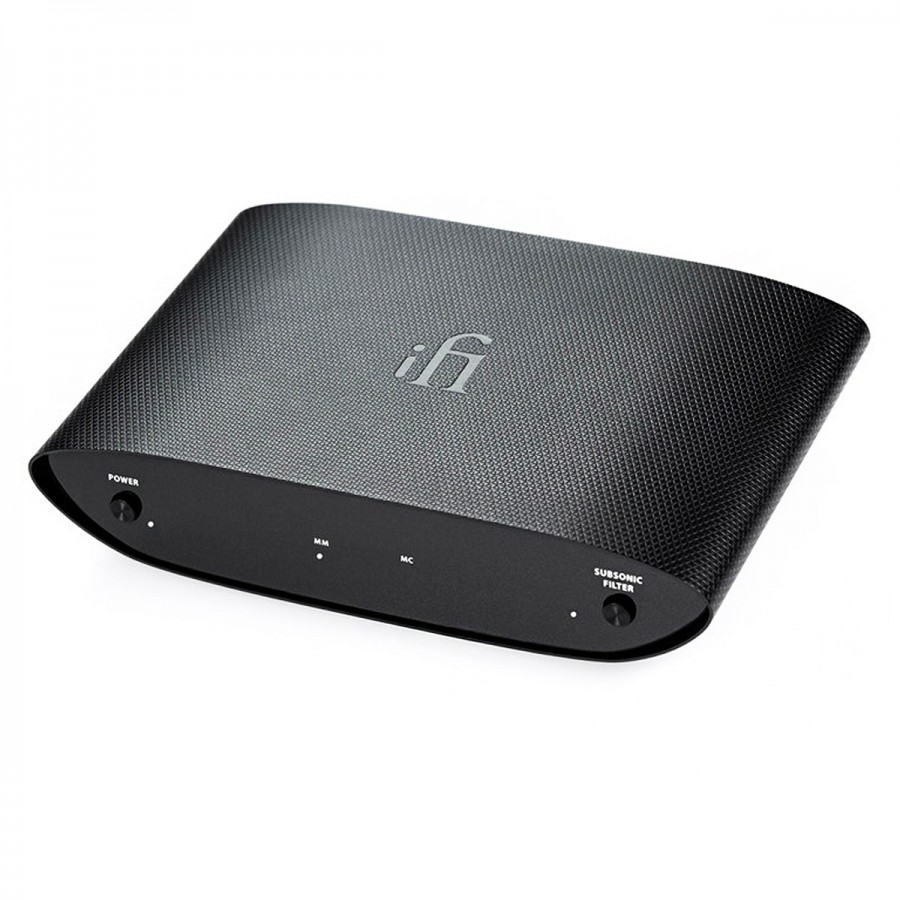

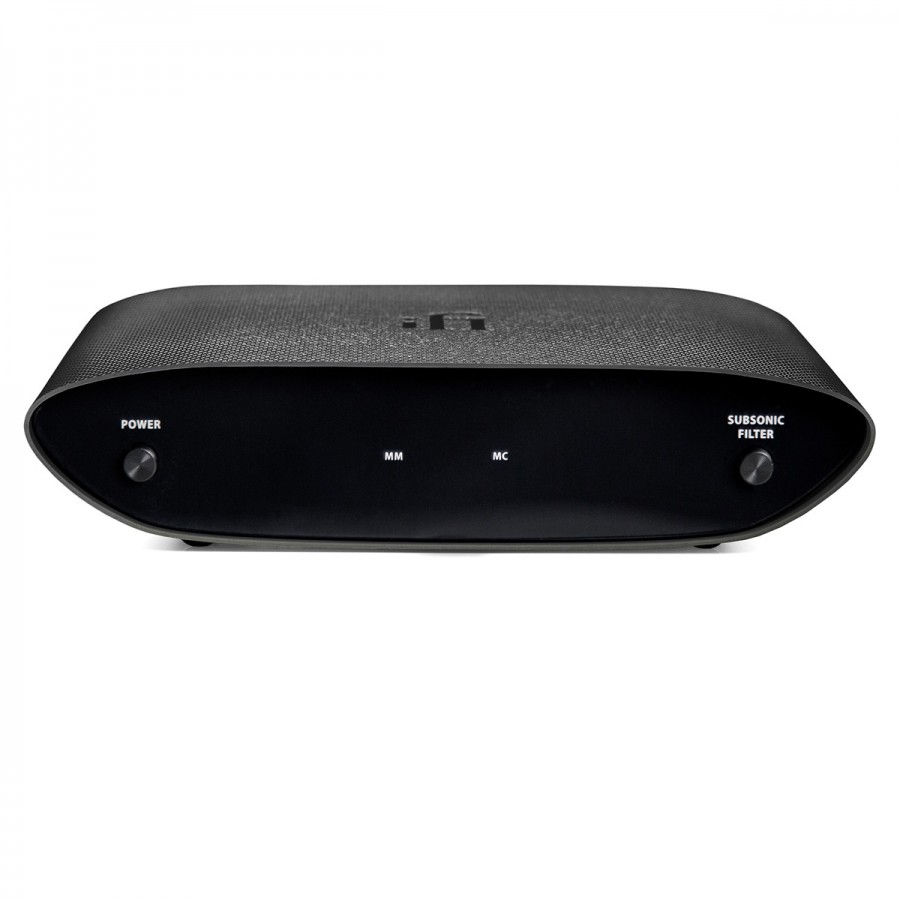

iFi Audio Zen Air Phono: MM/MC phono stage

With the Zen Air Phono , iFi Audio offers an affordable yet powerful phono stage. It will allow you to connect a player to the input and an amplifier to the output to enjoy your favorite recordings in high quality. A good phono preamp is a must for any vinyl lover, and the Zen Air Phono is the perfect solution for those who want to enjoy high-quality sound reproduction at a low price.

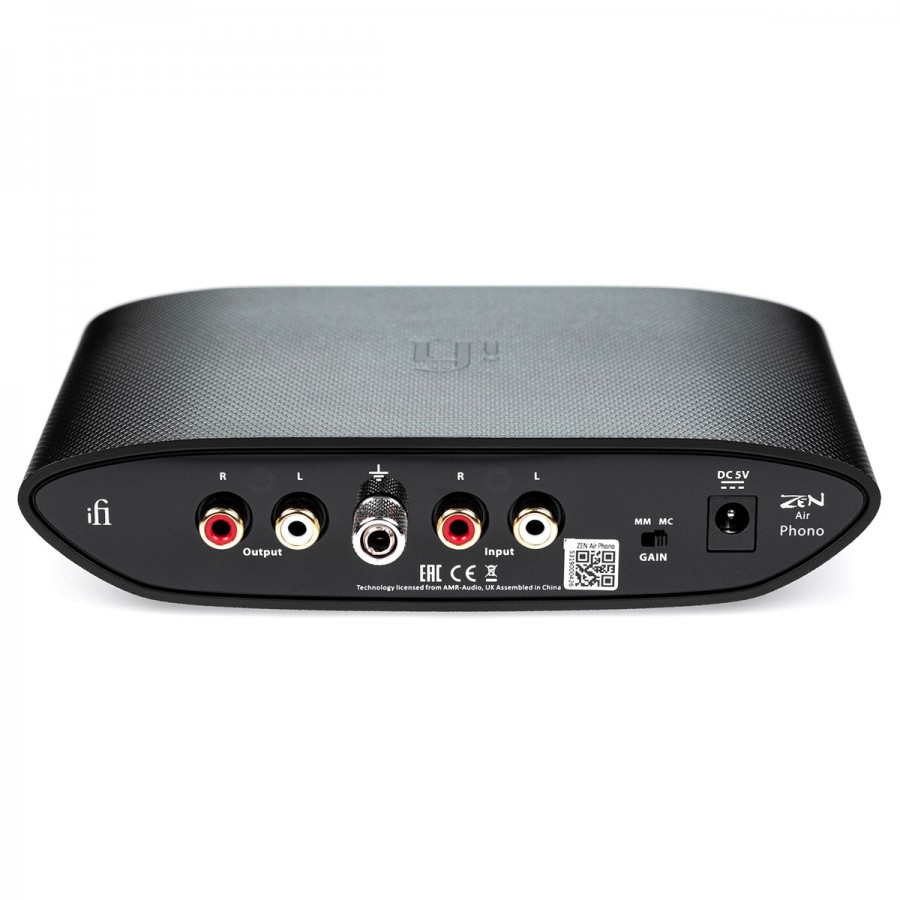

Zen Air Phono fits all turntables and is compatible with both MM (Moving Magnet) and MC (Moving Coil). A switch on the back of the device allows you to select the type of cell your spinner is equipped with. In addition, the preamplifier is equipped with RIAA equalization to satisfy the most demanding vinyl lovers.

The subsonic filter built into the iFi Audio Zen Air Phono eliminates vibration noise that may be associated with the condition of the record.

iFi Audio Zen Air Phono Specifications:

• Product Type: Phono Preamplifier
• Input: 1x stereo RCA
• Output: 1x stereo RCA
• Compatible Cartridge Type: MM MC
• Frequency response: 20Hz-20kHz (±0.15dB)
• Channel Separation: > 75 dB (1 kHz, all modes)
• Maximum output voltage: 6.5 V RMS 600 ohms (1% THD+N)
• Gain: MM: 40 dB MC: 64 dB
• Input impedance: MM: 47k ohm MC: 1k ohm
• Output impedance: 100 ohms
• SNR: MM (40dN ±1dB) : 86dB (A-Weighted) re 1V MC (64dB ±1dB) : 82dB (A-Weighted) re 1V
• Equivalent Input Noise: MM: -130 dBV (A-weighted) MC: -151 dBV (A-weighted)
• THD: MM: -90dB / 0.005% at 1V MC: -80dB / 0.01% at 1V
• Supply Voltage: DC 5V 1A (USB-A to DC cable included, AC adapter sold separately)
• Consumption: 1.8W
• Dimensions: 158 x 117 x 35 mm
