GUSTARD DAC-R26: A unique digital-to-analog converter

Avatar photoMarcus Carlsen·
Hi-fi
·
Home
Hi-fi

Gustard introduces the DAC-R26 , a completely unique digital-to-analog converter. It uses R2R architecture using very high quality discrete components that are perfectly optimized to deliver exceptional sound. Practical, it features not only full connectivity, but also Bluetooth and network connectivity, allowing you to control the reading of your music from a distance. All this is integrated into a modern and luxurious chassis of the most beautiful appearance.

GUSTARD DAC-R26

The R2R discrete
DAC used in the Gustard DAC-R26 relies on high-precision resistor switching to perform digital-to-analog conversion. Compared to delta-sigma DAC, R2R provides cleaner and more natural sound. More expensive and demanding design, but it provides unparalleled performance.

GUSTARD DAC-R26

Synchronous Clock Technology
The principle of this technology is that the original clock generator is used only as a reference frequency. The clock signal provided by the ultra-low noise K2 module is then used to replace the original clock signal. This way, the original clock can be dispensed with and the DAC uses only the extremely accurate femtosecond clock, so the conversion is independent of the original clock. Thus, this architecture can significantly reduce jitter.

LPF
Gustard DAC-R26 low-pass filter parameters have been optimized. The use of discrete components rather than integrated circuits allows each element to be independently adjusted to achieve the best operating conditions.

Network Connectivity

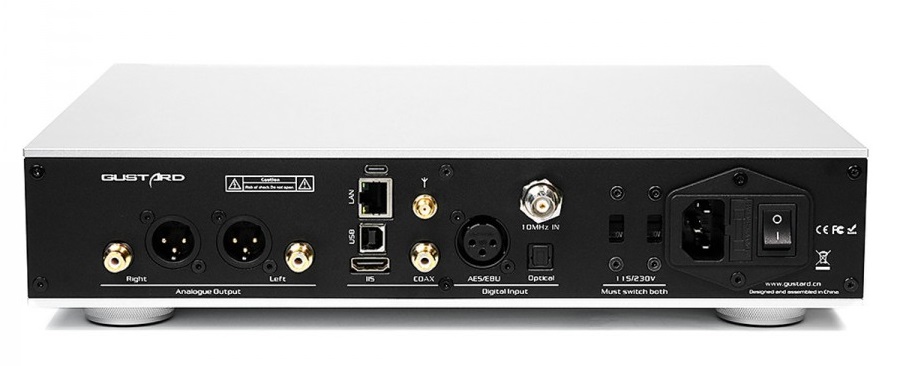

The DAC-26 has network connectivity thanks to its RJ45 port. It supports UPnP, AirPlay and Roon Bridge protocols. This will allow you to enjoy music stored on your network devices.

Bluetooth 5.0
In addition to network connectivity, the DAC-26 is also equipped with a Bluetooth 5.0 receiver chip. This makes it possible to control the reading of your music remotely, directly from your smartphone.

XMOS USB Interface
Another high quality component built into the DAC-26 is its XMOS USB interface. It allows it to decode high-resolution audio streams through the USB input, up to PCM 32bit 768kHz and DSD512.

GUSTARD DAC-R26

Sampling rates supported by digital input channels:

  • COAX/AES/OPT :pCM 16-24bit/44.1-192kHz; DSD DOP64
  • USB:
  • PCM 16-32bit/44.1-768kHz
  • DSD DOP64-DOP256
  • NATIVE DSD: DSD64-DSD512
  • OS support: Windows 7~11 32/64bit; macOS; Linux
  • IIS: PCM 16-32bit/44.1-768kHz; DSD DOP64-DOP256
  • NATIVE DSD: DSD64-DSD1024
  • LAN: more in the future
  • 10M Clock in: 50 ohm BNC, 0dBm-20dBm
  • square wave 0.2V-3.3V, sine wave 0.5-3.3V

Analog output characteristics:

  • Frequency response: 20 – 20 kHz /+ -0.2 dB (oversampling)
  • Dynamic range: >115 dB
  • Signal to noise ratio: > 122 dB
  • Crosstalk: -134 dB @ 1 kHz
  • THD+N: <=0.003% @ 1kHz
  • IMD: ≈0.008% @ Odbfs
  • RCA: 2.5Vrms (VOLUME FIXED) 100Ω
  • XLR: 5.0Vrms VOLUME FIXED) 100Ω
  • XLR pinout: 1 – ground 2 – hot 3 – cold

Other Specifications:

  • Power supply: AC 115V/230V 50/60Hz
  • Power consumption < 30 W
  • Size: 330mm (width) * 260mm (length) * 65mm (height) (protrusions not included)
  • Package size: 420 mm (width) * 360 mm (length) * 175 mm (height);
  • Weight: 7 kg (with packaging)

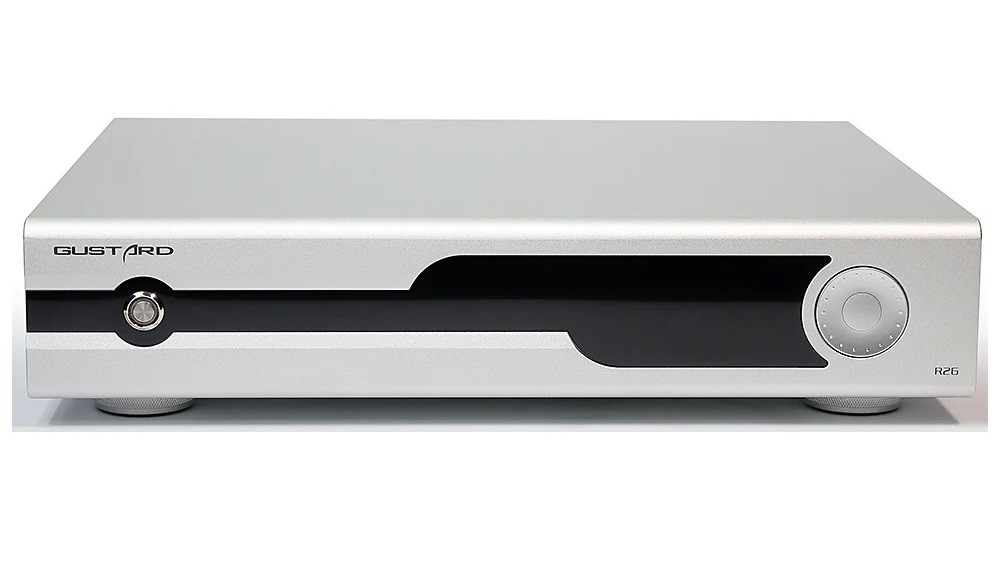

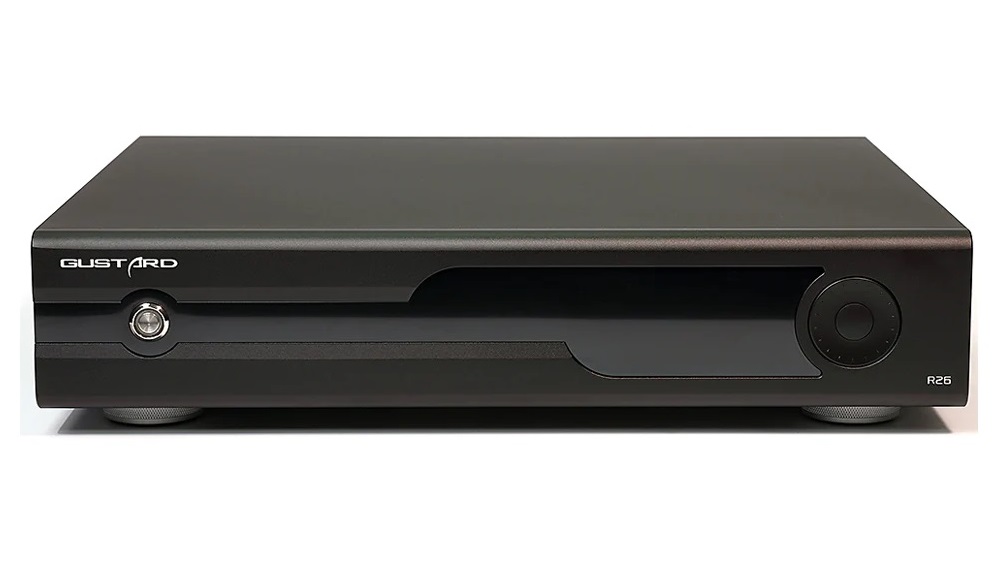

  • Sandblasted aluminum alloy body: Silver or black version

Price: $1650
