Few loudspeaker manufacturers enjoy the kind of global credibility that Canton has built over decades. Known for meticulous engineering, in-house driver production, and an unmistakably refined design language, Canton has become one of Europe’s most consistently praised and commercially successful hi-fi brands. For many listeners, the brand’s true identity is defined by one range above all others: the Reference series.
At the very center of that lineup sits the Canton Reference 5, a model that doesn’t chase extremes, but instead captures the essence of the Reference philosophy in a more attainable, room-friendly form.

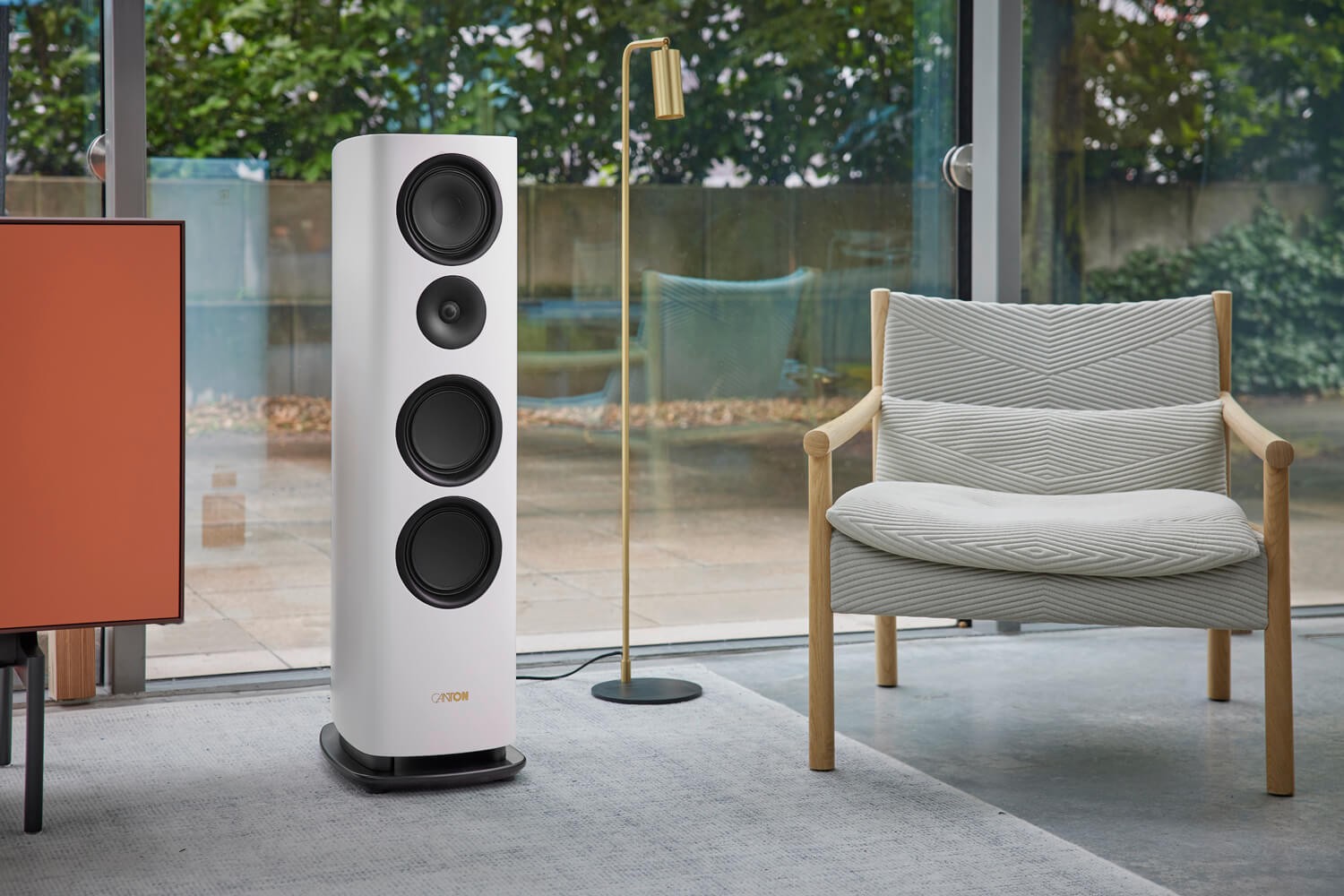

One of the Reference series’ greatest strengths is its visual and technical coherence. From the flagship models down to the more compact floorstanders, Canton has maintained a unified design concept. The Reference 5 mirrors the overall proportions, driver layout, and sculpted silhouette of the larger Reference 2 and Reference 3 so closely that, at a glance, they’re nearly indistinguishable.
The differences lie in scale rather than intent. Cabinet volume and driver sizes are adjusted to suit more realistic living spaces, but the visual identity—and the sonic DNA—remain intact. This approach ensures that stepping down in size does not feel like stepping away from the Reference experience.
Craftsmanship
Canton’s cabinet finishing has long been regarded as exemplary, and the Reference 5 fully lives up to that reputation. Each enclosure undergoes an extensive, largely hand-finished process involving repeated sanding, polishing, and surface refinement. The result is a finish of remarkable depth and purity—less like furniture, more like sculpture.
The cabinet’s tapered form is not merely aesthetic. It follows carefully calculated golden-ratio proportions, chosen for both visual balance and acoustic performance. Inside, Canton goes far beyond conventional damping materials. A complex internal bracing system, combined with specially selected polyfiber filling, minimizes resonances and standing waves, allowing the drivers to operate in a tightly controlled acoustic environment.

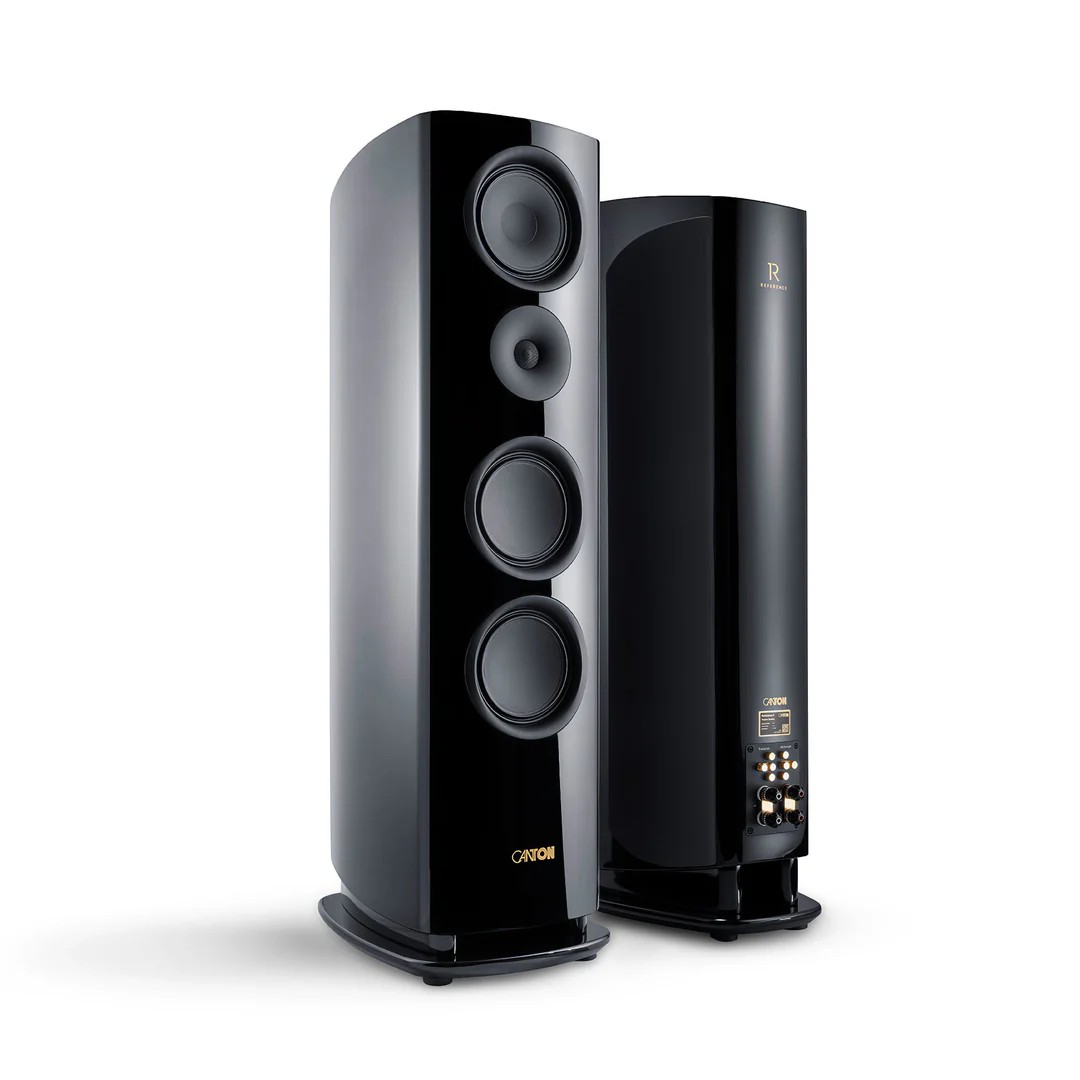

At the base, a solid stainless-steel plinth provides mechanical stability, while a down-firing bass reflex port—what Canton calls a “bass guide”—makes placement less sensitive and bass response more evenly integrated into real rooms.
Drivers

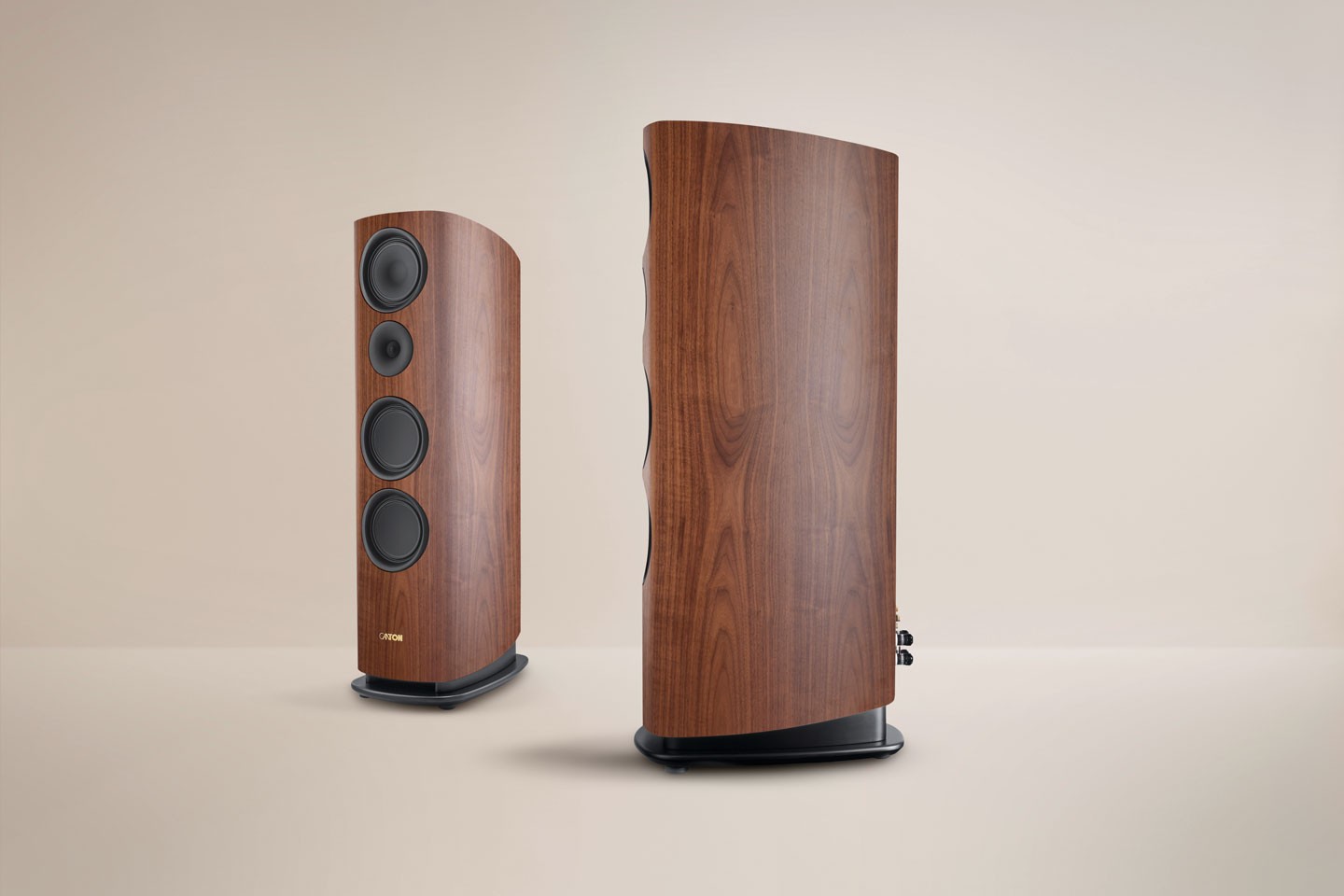

The Reference 5 is a 3-way, 4-driver floorstanding loudspeaker, sharing its layout with the higher Reference models. At the top sits Canton’s BC tweeter, a 25 mm aluminum ceramic oxide dome known for its extended bandwidth and low distortion. Below it is a 174 mm BCT midrange driver with a black ceramic tungsten cone and wave-optimized surround, designed for speed, neutrality, and tonal precision.
Bass duties are handled by two additional 174 mm BCT woofers—slightly smaller than those used in the Reference 2 and 3, but built on the same technological foundation. Canton’s insistence on producing all drivers in-house pays dividends here. Instead of adapting third-party units, every driver is optimized as part of a complete system, balancing cost efficiency with uncompromising performance.
Technologies such as the BCT membrane, Wave Surround 3.0, absorbent sealing rings, low-resonance POM components, and carefully tuned motor systems all contribute to a sound that is fast, controlled, and remarkably coherent from top to bottom.
Room adaptability

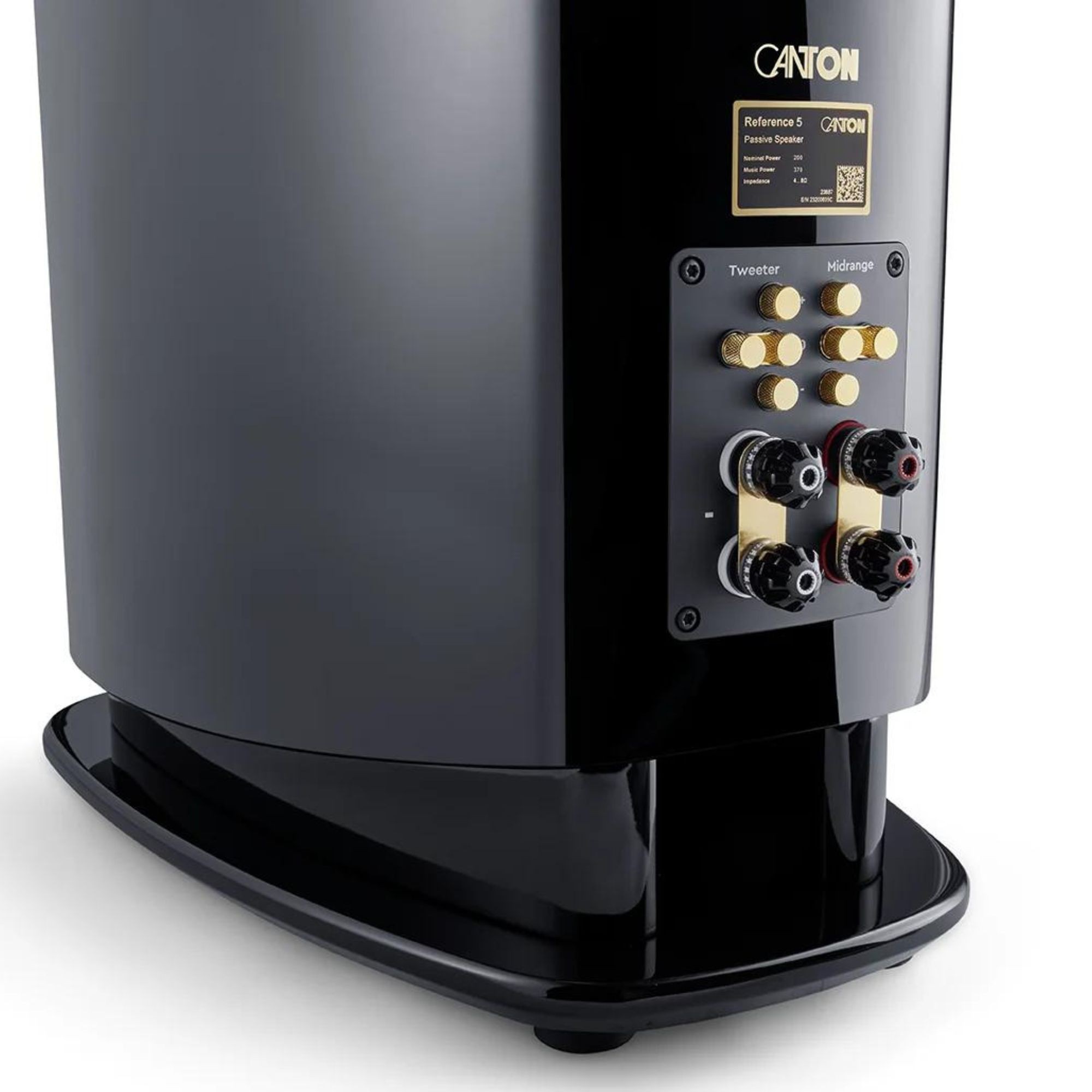

On the rear panel, the Reference 5 features high-quality WBT Nextgen bi-wiring terminals, along with Canton’s RC (Room Compensation) controls. These allow the tweeter and midrange output to be adjusted in 1.5 dB steps, making it easier to tailor the speaker’s balance to different rooms, placements, and personal preferences—an unusually practical feature in this class.
Crossover points are set at 170 Hz and 3 kHz, and the quoted frequency response spans an impressive 21 Hz to 40 kHz. With a sensitivity of 88 dB and nominal impedance options of 4 or 8 ohms, the Reference 5 remains compatible with a wide range of quality hi-fi amplifiers, rather than demanding extreme electronics.

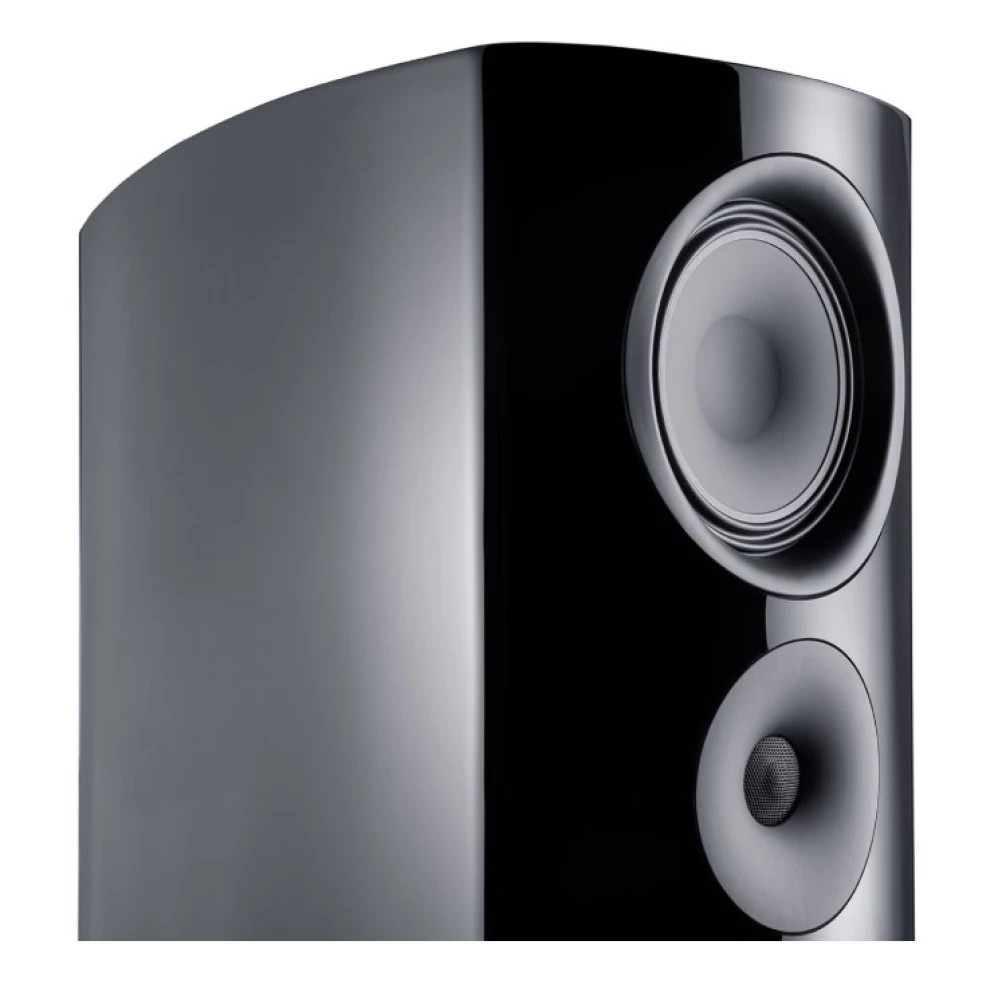

Internationally, the Canton Reference series has already earned widespread acclaim for delivering genuine high-end performance without drifting into unattainable pricing. The Reference 5, in particular, has been praised for striking a near-ideal balance between size, cost, and sonic ambition.
Elegant yet understated, technically advanced yet approachable, it captures the refinement of its larger siblings while remaining realistic for modern living spaces. Positioned at the very heart of the Reference lineup, the Canton Reference 5 offers a clear window into the brand’s design philosophy—bridging the gap between ultimate statement speakers and everyday high-end listening.
