SMSL has expanded its VMV line with the D2R MK2, a full-size desktop DAC designed for both wired digital sources and wireless playback. The new model combines a ROHM BD34302EKV conversion stage with XMOS-based USB handling, broad high-resolution format support and a clocking system centered on an internal 10 MHz OCXO oscillator.
ROHM-based conversion with high-resolution format support
At the heart of the SMSL VMV D2R MK2 is the ROHM BD34302EKV DAC chip, a component choice that places the unit firmly in the company’s higher-end desktop digital lineup. USB processing is handled by an XMOS XU-316 interface operating over asynchronous USB 2.0, with the DAC specified to decode PCM up to 768 kHz at 32-bit resolution via USB and I²S.
Native DSD playback is supported up to DSD512 over USB, while DoP is available up to DSD256 through USB and up to DoP64 through optical and coaxial inputs. For users with disc transports, streamers or digital outputs limited to conventional S/PDIF bandwidth, the optical, coaxial and AES inputs support PCM up to 192 kHz at 24-bit resolution.
The D2R MK2 is also specified for full MQA and MQA-CD decoding across USB, optical, coaxial and AES inputs. That gives the DAC a consistent decoding feature set across several wired digital routes rather than limiting MQA handling only to USB.

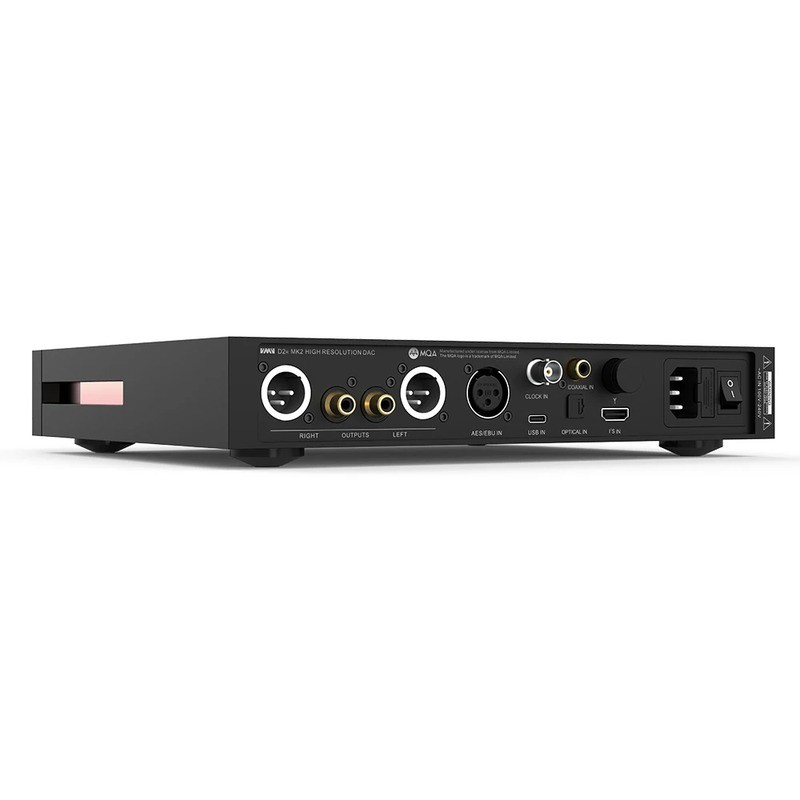

Wired inputs, Bluetooth 5.4 and balanced outputs
The VMV D2R MK2 is equipped for a wide range of digital front ends. Its input selection includes USB, I²S, optical, coaxial and AES, covering typical connections from computers, streamers, CD transports and dedicated digital audio interfaces. For wireless playback, SMSL has added Bluetooth 5.4 with support for SBC, AAC, aptX, aptX HD and LDAC codecs.
Analog output is provided through both balanced XLR and unbalanced RCA connectors. SMSL specifies output levels of 5.0 V RMS from the XLR outputs and 2.5 V RMS from the RCA outputs. The quoted THD+N figures are 0.00013 percent via XLR and 0.00017 percent via RCA, with dynamic range listed at 123 dB for XLR and 122 dB for RCA.
The connectors use gold-plated contacts, and the unit is offered in a black finish. Power consumption is specified at less than 30 W, while the chassis measures 279.8 x 50.8 x 255.1 mm and weighs 3.25 kg.
OCXO clocking and external 10 MHz input
Clocking is a major part of the D2R MK2’s specification sheet. SMSL uses its CK-04 clock system and integrates a 10 MHz oven-controlled crystal oscillator, or OCXO, with stated stability of ±5 ppb. The inclusion of an internal OCXO gives the DAC a temperature-controlled timing reference within the chassis.
For systems built around a master clock, the DAC also includes a 10 MHz external clock input. That allows the VMV D2R MK2 to be connected to an outboard clock generator where such a setup is already part of the digital chain.
The power supply arrangement is described as a low-noise linear design with adaptive voltage. SMSL says the supply works with multiple regulators to feed different circuits inside the DAC, separating power delivery across the unit’s internal stages.

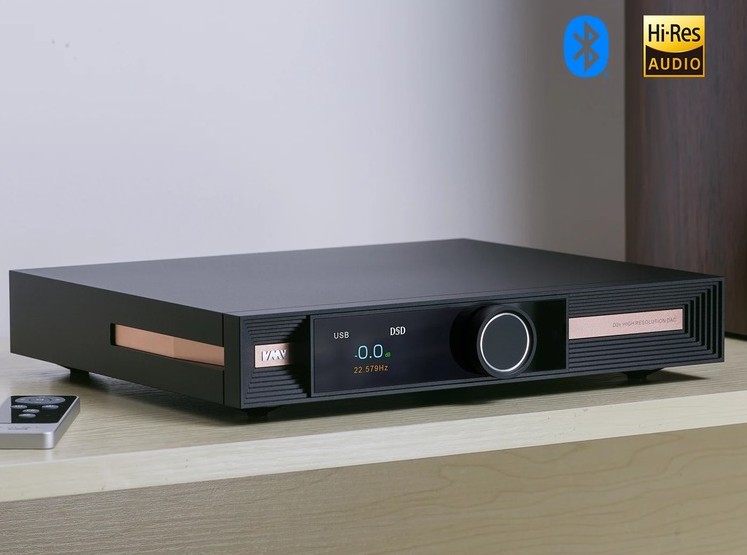

Display, controls and user interface
The front panel features a 1.9-inch tempered-glass display. According to the product information, the screen can show track information and lyrics text, and the interface supports multiple languages. That gives the DAC a more informative front-panel experience than a simple input-and-sample-rate readout.
Control is handled by the front-panel interface and a remote control. SMSL also notes a one-button function for selecting an optimal sound effect, although detailed operating modes for that feature were not specified in the supplied material.
Positioning and availability
The VMV D2R MK2 is positioned as a stationary DAC for users who need broad digital compatibility in a desktop or hi-fi system. Its combination of balanced and unbalanced outputs, high-resolution USB and I²S capability, S/PDIF and AES connectivity, Bluetooth reception and external clock support makes it suitable for systems with multiple digital sources.
The DAC has been listed through AliExpress. No USD price was provided in the supplied product information.
With the VMV D2R MK2, SMSL is pairing ROHM conversion with XMOS USB, extensive wired and wireless input options, MQA decoding and a serious clocking architecture. For listeners building a digital front end around a standalone DAC, it is a feature-rich addition to the VMV range.
