SMSL has introduced the D100, a compact desktop DAC and headphone amplifier designed to serve as a digital hub for computer audio, digital transports and headphone listening. The unit combines an ESS-based conversion stage, multiple digital inputs, RCA line output and two front-panel headphone connections in a small aluminum case.

ESS DAC platform with high-resolution format support

At the core of the SMSL D100 is an ESS ES9081 DAC configured with eight-channel parallel summing. SMSL specifies a 127 dB dynamic range for the chip, while the D100’s published capabilities include PCM playback up to 32-bit/768 kHz, DSD up to DSD512 and MQA support.

USB audio is handled by an XMOS XU-316 interface, a current-generation USB platform widely used in high-resolution DACs. The USB input supports both DoP and Native DSD operation, with DoP listed up to DoP256. For optical and coaxial digital inputs, the stated ceiling is PCM up to 24-bit/192 kHz, alongside DoP64 and MQA support.

SMSL also notes the use of multiple low-noise voltage regulators in the analog section. The D100 is therefore positioned as more than a simple USB dongle alternative: it is a fixed desktop component intended for systems where a computer, streamer or digital transport feeds an external DAC and headphone stage.

Digital inputs, display controls and MQA indication

The D100 provides three digital input options: USB-C, optical and coaxial. USB, optical and coaxial inputs all support MQA, and when MQA material is played the display can show the original sampling frequency of the recording.

Operation is handled from the front panel, with hardware control over input selection, line-output or headphone-amplifier mode, digital filter choice, display brightness and display auto-off timing. Eight digital filter settings are available, giving users a degree of adjustment within the DAC’s conversion behavior without relying on a software control app.

A 1.66-inch display sits behind a fully laminated tempered-glass panel. The compact front-panel interface is designed to make the D100 usable as a desk-based DAC, where quick switching between input and output modes can be useful when moving between powered speakers, an external amplifier and headphones.

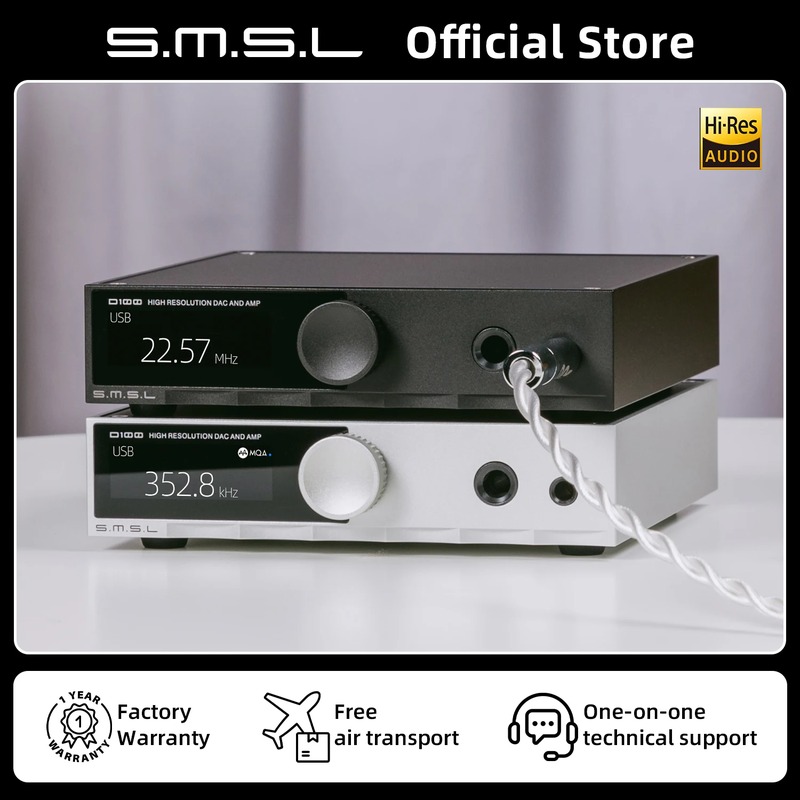

SMSL D100 desktop DAC and headphone amplifier in a compact aluminum enclosure — The SMSL D100 combines an ESS ES9081 DAC, USB-C audio input, RCA line output and 4.4 mm balanced headphone connection.

Balanced headphone amplifier and RCA line output

The SMSL D100 includes a fully balanced headphone amplifier and two headphone outputs on the front panel: a 6.35 mm single-ended jack and a 4.4 mm balanced connector. The balanced output is specified at up to 400 mW per channel into 32 ohms.

The published output-power figures are 350 mW x 2 into 16 ohms, 400 mW x 2 into 32 ohms, 105 mW x 2 into 150 ohms, 50 mW x 2 into 300 ohms and 26 mW x 2 into 600 ohms. That range of specifications gives prospective users a clearer idea of how the D100 is intended to handle headphones across different impedance loads.

For use in a broader hi-fi system, the rear-panel RCA output provides a 2 V RMS line-level signal. This allows the D100 to feed an external integrated amplifier, headphone amplifier, preamplifier or active speakers, while the front-panel controls let the user switch between line-output and headphone-amplifier operation.

Compact aluminum build and USB-C power arrangement

The enclosure is made from CNC-machined aluminum alloy and is offered in silver and black finishes. SMSL lists the D100’s dimensions as 127 x 31.7 x 126.7 mm, with a weight of 338 g. Gold-plated input and output connectors are fitted for the analog and digital connections.

Two USB-C ports are used on the device. One serves as the USB audio input, while the second is provided for auxiliary power. When the D100 is connected to a phone, the auxiliary USB-C port requires a 5 V power supply. Power consumption is listed at less than 5 W.

The D100 is listed for purchase through AliExpress, with no official USD price included in the supplied information. The two finish options give buyers a choice between a lighter desktop look and a more traditional black component appearance.

With the D100, SMSL is targeting listeners who want a small desktop DAC that can handle high-resolution USB audio, optical or coaxial sources, balanced headphone output and fixed line-level system integration from a single compact unit.
