Lotoo PAW GT2 seeks to establish a new benchmark in portable music players, designed with the discerning audiophile in mind. This device combines remarkable technical specifications with a thoughtfully designed aesthetic, providing an exceptional listening experience.
Main Features:

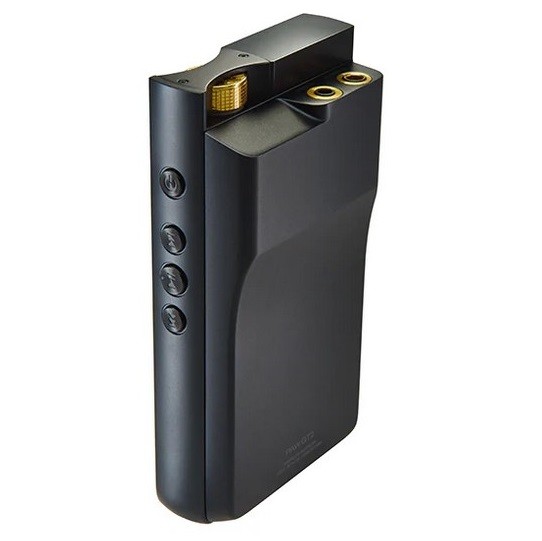

- DAC and Upsampling : PAW GT2 is equipped with flagship AK4191EQ and dual AK4499EX DACs, providing support for PCM 768kHz and DSD512 for impeccable sound quality. A dedicated AK4137EQ upsampling chip provides conversion and upsampling between DSD and PCM for maximum flexibility.
- LTTP Protocol : Lotoo’s proprietary Teleport Protocol (LTTP) enables wireless audio transmission with high bitrates and minimal latency. Support for transmission at resolutions up to 96 kHz/24 bits and up to 1.5 Mbps ensures high-quality sound and precise signal synchronization.
- Powerful Amplification : The PAW GT2 offers up to 1000 mW of output power, allowing it to easily drive a wide range of headphones. The high signal-to-noise ratio (133 dB) and low noise level (0.8 μV) provide clear and dynamic sound.
- Multi-processor architecture : Each device subsystem (audio, digital and wireless) has its own processor and power supply, ensuring stability and minimizing interference.
- Body : Made of aircraft-grade aluminum with a multi-layer PVD coating, the device body combines durability with an elegant appearance. The durable design and Corning Gorilla Glass 5 coating protect the screen and prevent fingerprints.
- Screen : The device is equipped with a 4-inch IP5 Retina LCD display with crystal clear images, protected from scratches and fingerprints.
- Additional modes and filters : Support for asynchronous USB decoding, LDAC and other Bluetooth protocols, the ability to work as a DAC for PCs and mobile devices with PMEQ, ATE filters and upsampling support.
PAW GT2 is not just a portable player, but a complete solution for high-quality audio that will provide true listening pleasure in any format and environment.
Lotoo PAW GT2 Specifications:
- Formats : DSD 64/128/256/512 DFF/DSF/ISO, WAV, MP3, FLAC, APE, OGG, M4A, AAC
- Sampling frequency : DSD up to DSD512, PCM up to 768kHz
- Processor : Freescale i.MX 6, ADI Blackfin BF706 DSP, Ingenic X1000
- Screen : 4 inches, 800×480, touch
- DAC : AK4191EQ + 2 x AK4499EX
- XRC : AKM4137EQ
- Headphone Amplifier : BUF634A x 4
- Headphone jacks : 3.5mm (unbalanced), 4.4mm (balanced)
- USB Ports : USB 3.1 Gen2 Type-C OTG (USB Storage/DAC Modes) x 1
- Storage : SD UHS-II 4.0 up to 2TB, speed up to 300MB/s
- Battery : 3.7V, 8300mAh Li-Po
- Bluetooth Audio : SBC, AAC, LDAC
- Lotoo Wireless Protocol : LTTP
- Wi-Fi : supported
- Streaming : DLNA
- Dimensions : 70.8 x 132.8 x 32.4 mm (excluding protrusions)
- Weight : 388 g
- Firmware update : supported
Audio Specifications
Headphones – 4.4mm balanced
- Maximum output level: +20.3 dBu (S Mode)
- Maximum power: 1000 mW/channel (32Ω), 620 mW/channel (100Ω), 210 mW/channel (300Ω), 104 mW/channel (600Ω)
- Channel separation: 122 dB
- Frequency response: +0.006/-0.04dB (20~20kHz)
- SNR: 133 dB (20~20kHz, A-weighted)
- THD+N: 0.00013% @1kHz
- Noise level: 0.9 µV
Headphones – 3.5 mm unbalanced
- Maximum output level: +14.2 dBu (S Mode)
- Maximum power: 460 mW/channel (32Ω), 156 mW/channel (100Ω)
- Frequency response: +0.004/-0.05dB (20~20kHz)
- SNR: 129 dB (20~20kHz, A-weighted)
- THD+N: 0.00020% @1kHz
- Noise level: 0.8 µV
Line output – 4.4 mm balanced
- Maximum output level: +20.3 dBu
- Channel separation: 122 dB
- Frequency response: +0.006/-0.04dB (20~20kHz)
- SNR: 133 dB (20~20kHz, A-weighted)
- THD+N: 0.00013% @1kHz
Line output – 3.5 mm unbalanced
- Maximum output level: +14.2 dBu
- Frequency response: +0.004/-0.05dB (20~20kHz)
- SNR: 129 dB (20~20kHz, A-weighted)
- THD+N: 0.00020% @1kHz
