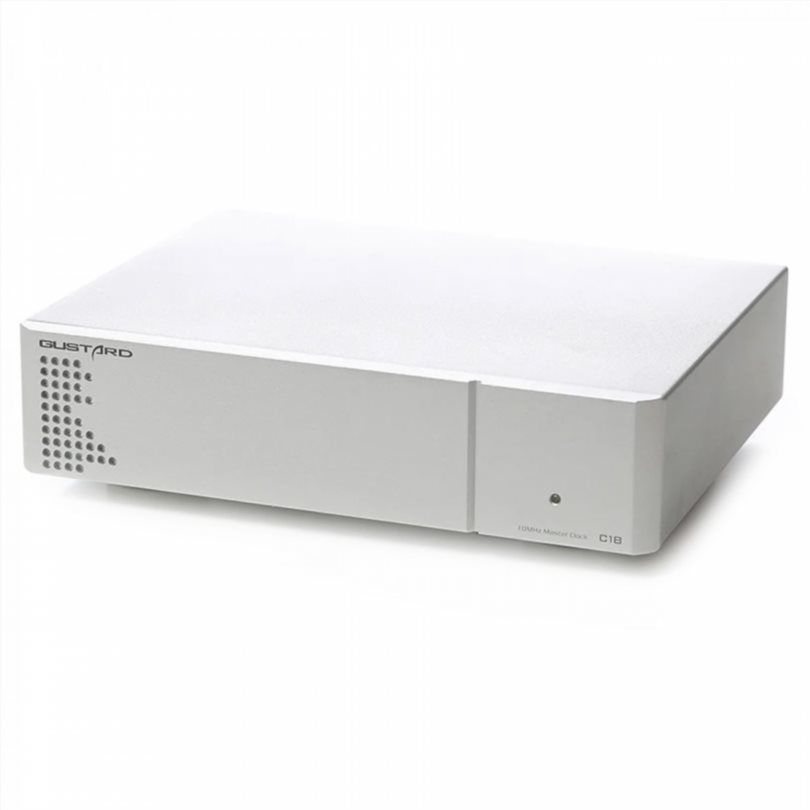

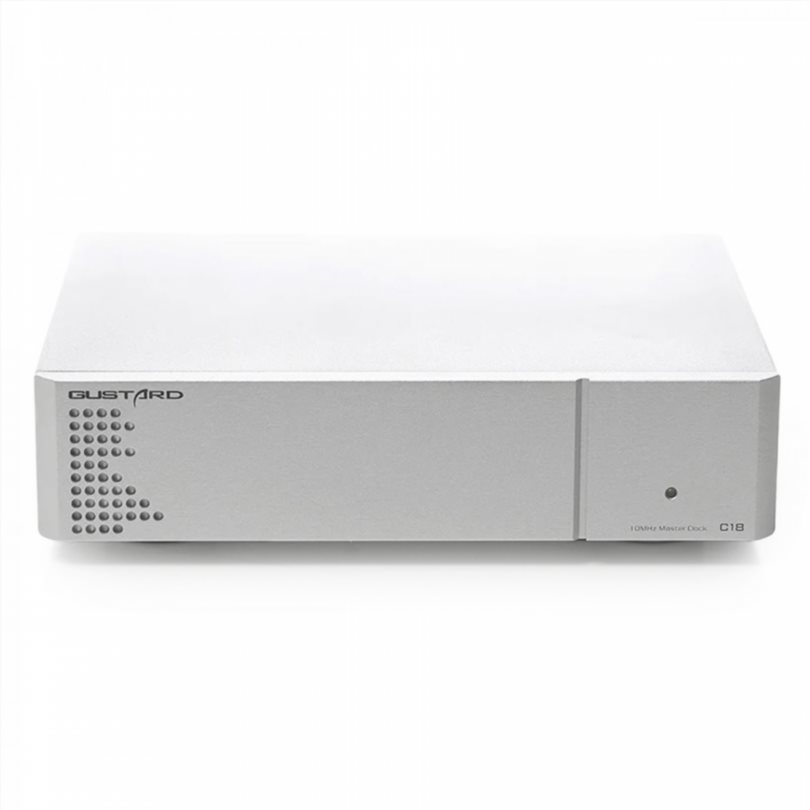

Gustard C18: Clock for 10 MHz DAC
This high-performance Gustard C18 external synchronizer is ideal for ensuring perfect synchronization of digital audio signals to improve the sound quality of your HiFi system. The C18 features an ultra-low noise oscillator. The C18 output circuit maintains and does not degrade the low phase noise signal provided by the main oscillator. The GDRV-P1 can also output both sine and […]
This high-performance Gustard C18 external synchronizer is ideal for ensuring perfect synchronization of digital audio signals to improve the sound quality of your HiFi system. The C18 features an ultra-low noise oscillator.
The C18 output circuit maintains and does not degrade the low phase noise signal provided by the main oscillator. The GDRV-P1 can also output both sine and square wave signals, allowing it to be used in a variety of applications.
The oscillator used here is a 10 MHz OCXO designed to maintain a constant temperature and thus minimize changes in output frequency caused by temperature changes. Specifically designed for audio, it achieves higher levels of detail, more realistic sound and higher dynamic range.
The C18 uses a discrete Class A power design that is highly efficient, low ripple, and fast response.
Characteristics of Gustard C18:
- Product Type: Master Watch
- Output frequency: 10 MHz
- Frequency accuracy: <±300ppb
- Frequency stability: <±50ppb
- Output amplitude: 7dBm @ 50Rz

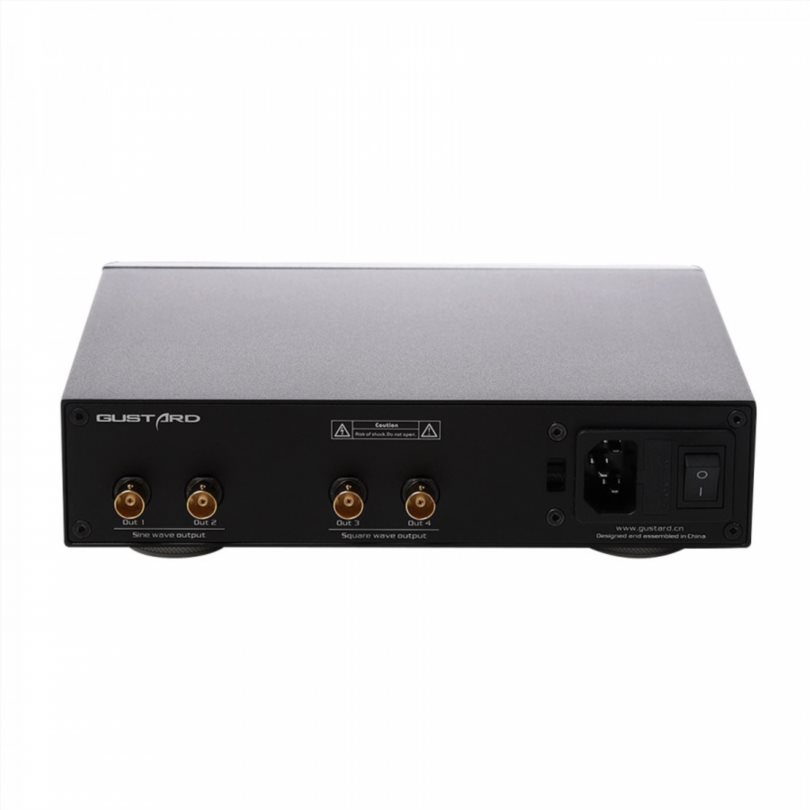

- Output Waveform: Sine/Square
- Output impedance: 50 ohms
- Noise @ 1Hz (TYP): -110dBc
- Supply voltage: 115-230 VAC 50/60 Hz
- Consumption: <15W
- Dimensions: 220 x 170 x 50 mm
- Weight: 2.5 kg
VS
VS
VS
VS
VS
VS
VS
VS
J’ai acquis la Gustard C18 pour compléter le dac Gustard ,R26. Il manque le mode d’emploi. Comment choisir entre l’entrée sur les signaux carrés et celle pour les signaux sinusoïdaux?
