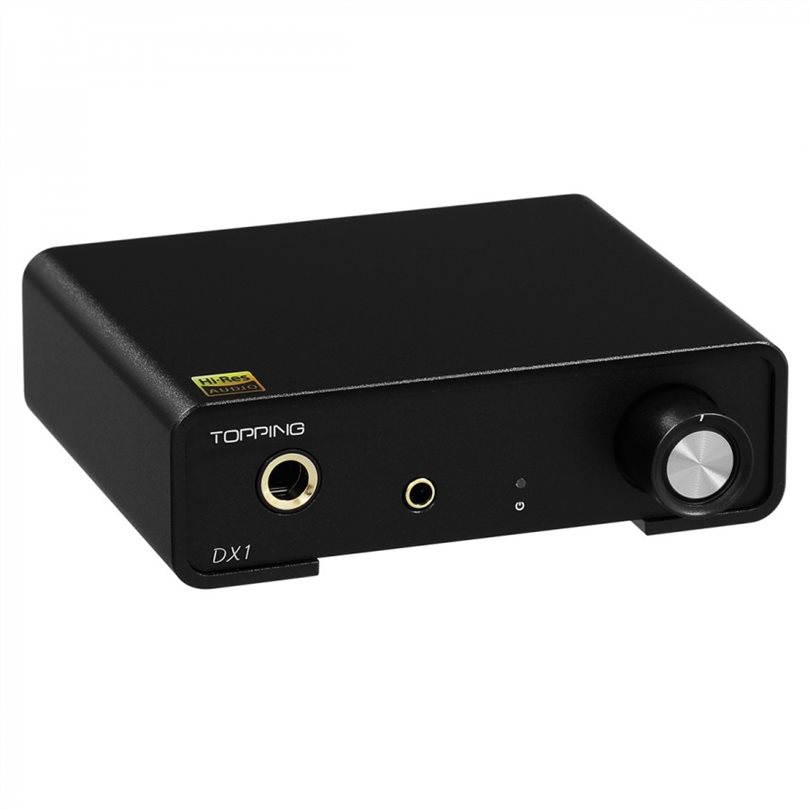

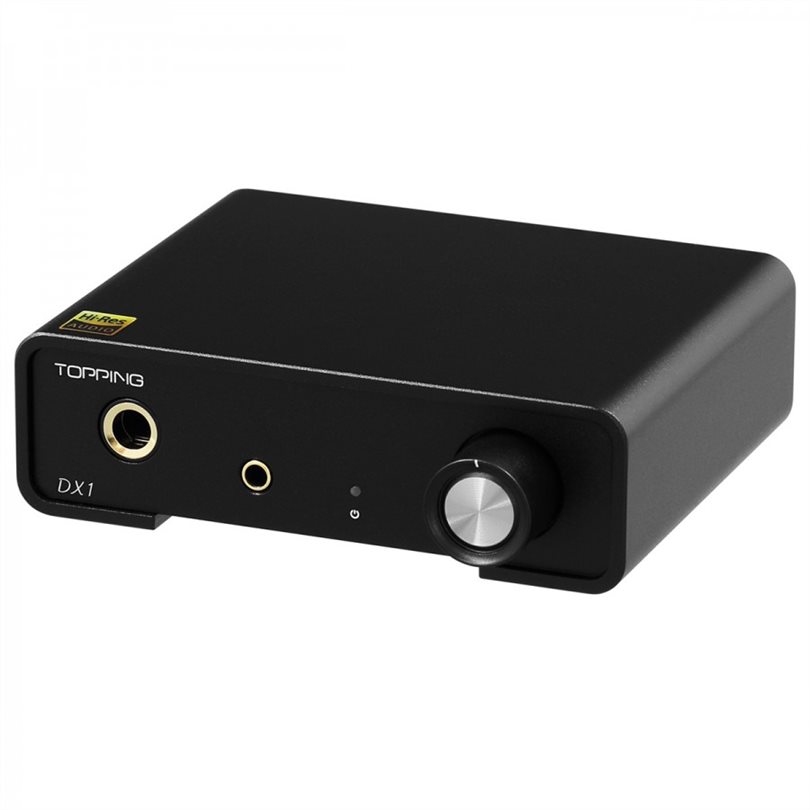

Topping introduces the DX1 , a compact , affordable yet powerful DAC and headphone amplifier. It features an optimized design that provides efficient digital-to-analog conversion as well as reliable headphone amplification.
The Topping DX1 uses a discrete LNRD (Low Noise Reference Driver) circuit to effectively filter out noise and interference from the USB power supply. As a result, the power stage is able to provide the DX1 audio circuit with a clean and stable electrical signal.
The DX1 is equipped with the brand new AKM AK4493S DAC chip. It provides accurate and musical conversion, allowing, in combination with the XMOS XU208’s USB interface, to support high-resolution audio streams up to PCM 32bit 384kHz and DSD256.
Topping DX1 Features:
- Product Type: DAC and Headphone Amplifier
- DAC chip: AKM AK4493S

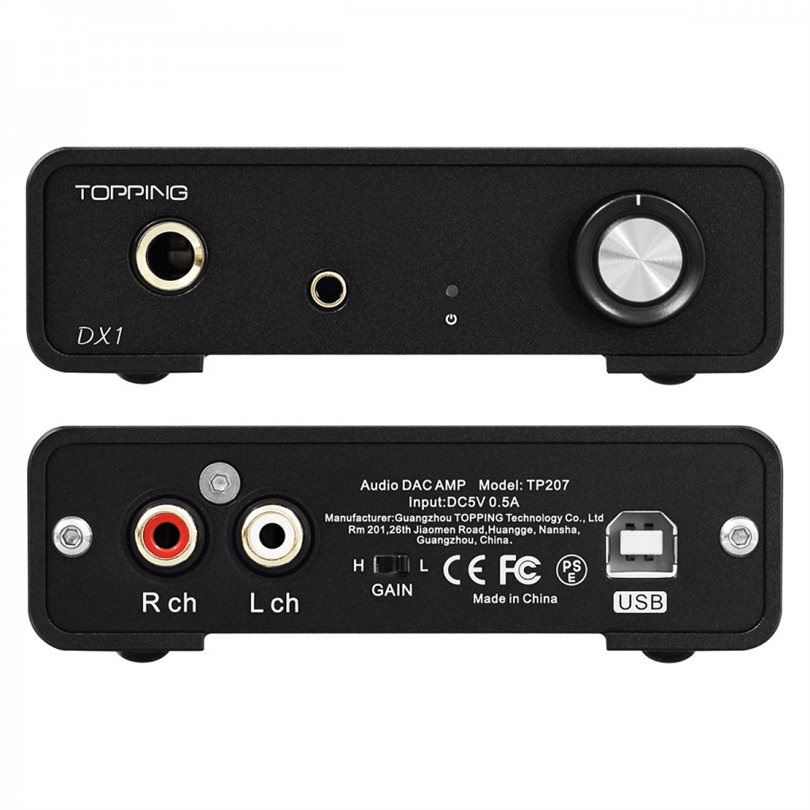

- Input: 1x USB-B
- Outputs: 1x Stereo RCA Line Out (fixed volume)/1x Jack 3.5mm headphone out/1x Jack 6.35mm headphone out
- Supported sampling rates: PCM up to 32-bit 384 kHz/Native DSD up to DSD256/DSD DoP up to DSD128 DAC parameters (USB input @ 44.1 kHz) THD+N @ 1 kHz, A-weighted: 0.0002%
- THD @ 20Hz-20kHz, 90kBw: 0.0006%
- SNR @ 1 kHz, A-weighted: 120 dB
- Dynamic range @ 1 kHz, A-weighted: 120 dB
- Frequency Resonance: 20Hz – 20kHz (±0.3dB) / 20Hz – 40kHz (±0.7dB)
- Output Level: 2.0Vrms @ 0dBFS
- Crosstalk @ 1kHz: -112 dB
- Channel balance: 0.3 dB
- Output impedance: 22 Ohm Headphone amplifier parameters THD+N @ 1kHz, A-Weighted: 0.0003% @ 200mW, 32 Ohm / 0.0002% @ 45mW, 300 Ohm
- THD @ 20Hz-20kHz, 90kBw: 0.003% @ 200mW, 32 ohms / 0.001% @ 45mW, 300 ohms
- SNR @ Max Out, 1kHz, A-Weighted: 118 dB
- Dynamic range @ 1 kHz, A-weighted: 118 dB
- Frequency response: 20Hz – 20kHz (±0.3dB) / 20Hz – 40kHz (±0.7dB)
- Output level: 2.2Vpp @ G=L/11Vpp @ G=H
- Noise @ A-weighted: 1.0µVrms
- Crosstalk @ 1 kHz: -86 dB
- Gain: -2 dB (Vrms/FS) @ G=L/12 dB (Vrms/FS) @ G=H
- Output impedance: 0.5 ohm
- Output Power: 2x 280 mW @ 32 ohms, THD+N 0.1%/2x 190 mW @ 64 ohms, THD+N 0.1%/2x 51 mW @ 300 ohms, THD+N 0.1%
- Load impedance: > 8 ohms
- Dimensions: 100 x 98 x 32 mm
- Color: black or silver
Price: $99
