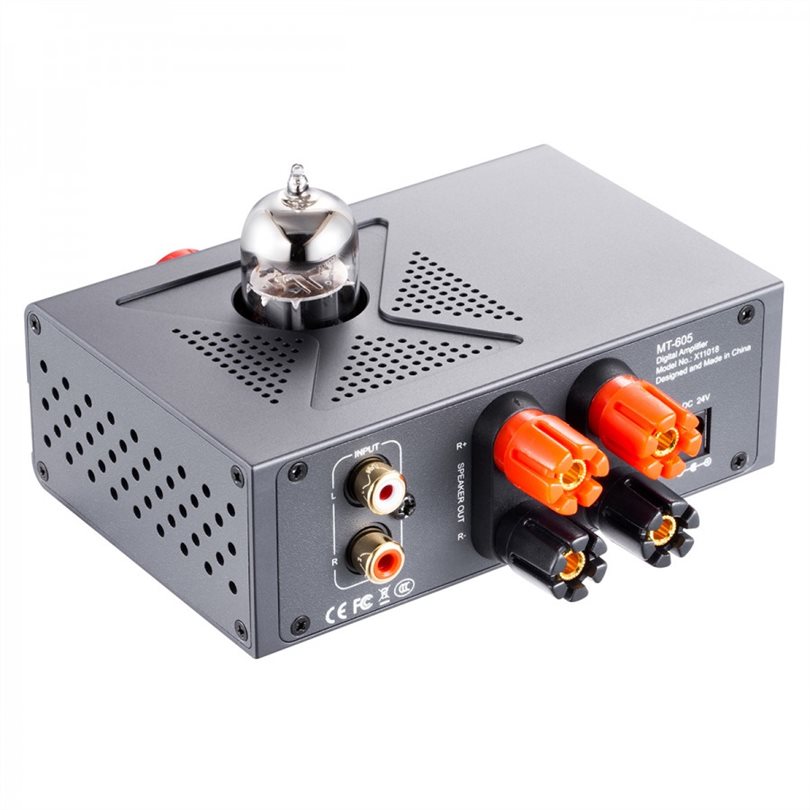

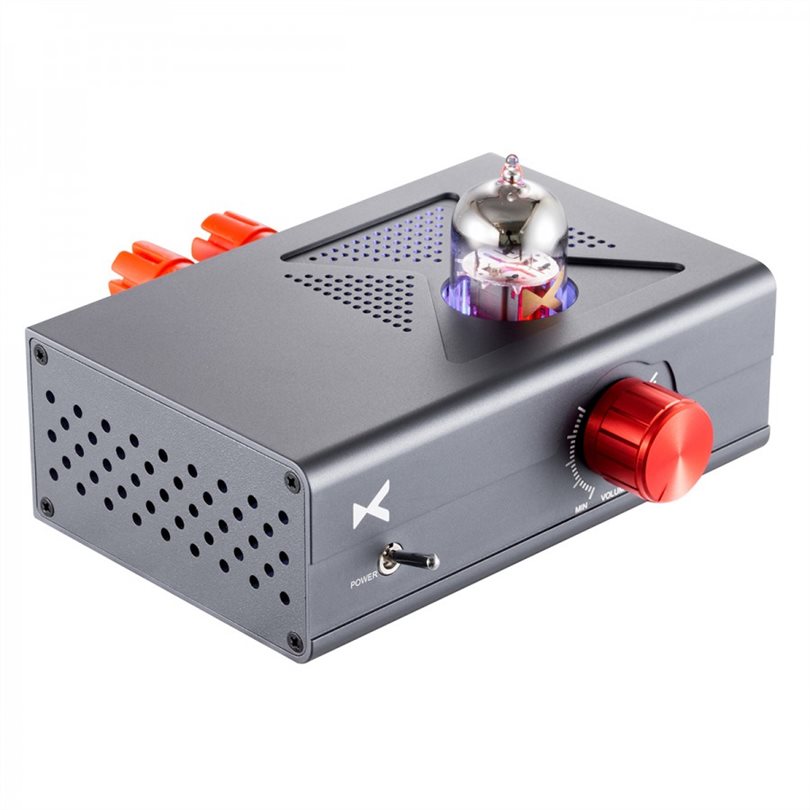

The MT-605 from xDuoo is a small and affordable amplifier that combines Class D performance with the musicality of a tube system.
Its amplifier stage is indeed based on the TI TPA3116 chip, which allows it to provide an output power of 2×30 W under a 4Ω load with high efficiency. However, a 12AU7 tube is also integrated into the circuit, allowing you to enjoy the soft and delicate sound of this design. The power stage is also not far behind, with a filter circuit using quality Rubycon and Nichicon capacitors to ensure that the audio circuits receive a clean electrical signal. When it comes to connections, the MT-605 goes for the bare essentials: a stereo RCA input and speaker terminals on the output.
xDuoo MT-605 Specifications:
- Product Type: Amplifier
- Amplification chip: TI TPA3116
- Tube: 12AU7
- Input: 1x stereo RCA
- Output: Acoustic terminals
- Output power: 2x 30 W at 1 kHz, 4 ohms
- THD+N: 0.1% @ 1 kHz
- SNR: 85 dB (A-weighted)
- Crosstalk: 60 dB
- Frequency response: 20 Hz – 40 kHz
- Dimensions: 120 x 114 x 67 mm
- Weight: 390 g
