The Suca Audio Tube-T5C tube preamplifier is compact, affordable and efficient. It is equipped with two 61N tubes, allowing it to exhibit musical and warm sound reproduction.
The Tube-T5C is equipped with advanced connectivity, including USB-B and Bluetooth 5.0 reception in addition to RCA, allowing you to connect the Tube-T5C to a computer or, for example, stream music wirelessly from a smartphone or tablet.

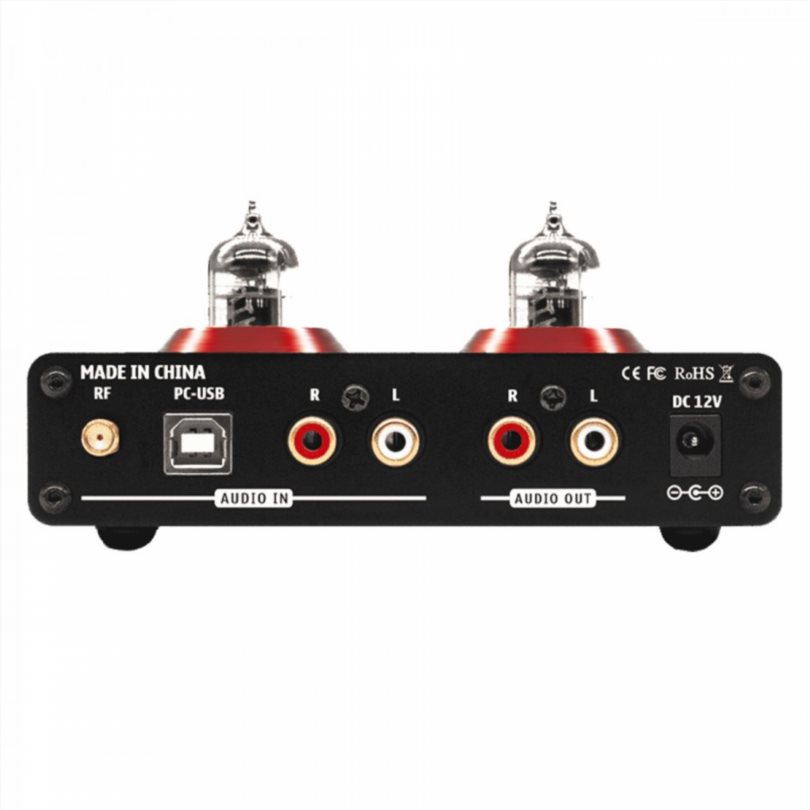

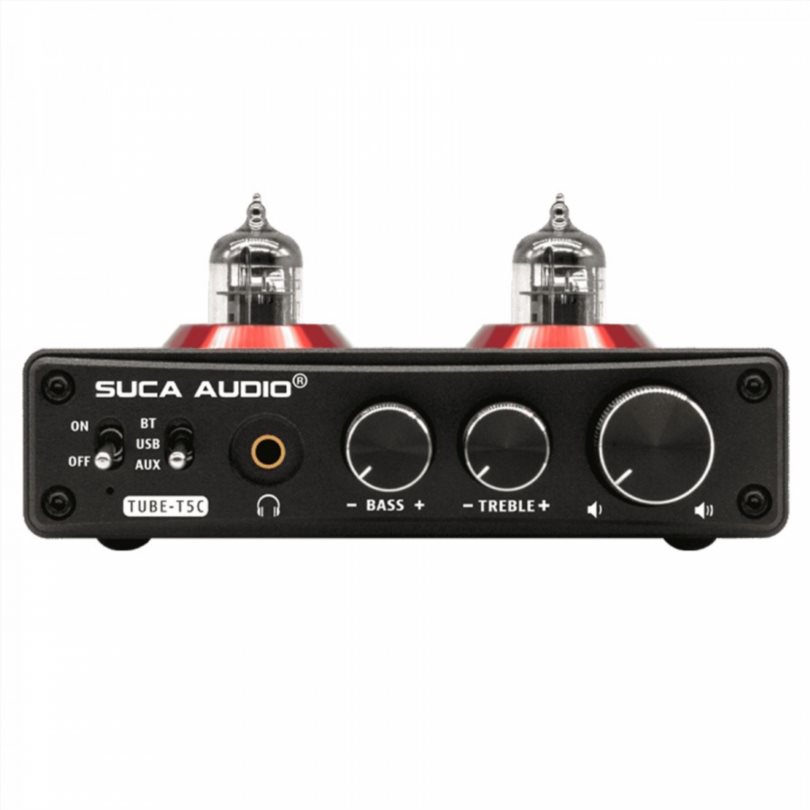

USB input uses CM4462 interface, Bluetooth reception uses Qualcomm QCC3008 chip. On the output side we find a stereo RCA, as well as a 3.5mm headphone output on the front panel. Additionally, for added versatility, the Tube-T5C features a tone control that lets you adjust the level of bass and treble to suit your listening style and your audio system.
Characteristics of Suca Audio TUBE-T5C:
- Type: Tube Preamp
- Tubes: 2*6N1
- Inputs: Bluetooth 5.0/USB-B/1x stereo RCA
- Outputs: 1x stereo RCA/1x headphone output Jack 6.35mm
- Frequency response: 20Hz-20kHz (±3dB)
- Bluetooth chip: QCC3008
- USB interface: CM4462
- OPA: NE5532P
- SNR: ≥ 110 dB
- THD: 0.02%
- Supported sampling rates (USB): PCM jusqu’à 24bit 192kHz
- Recommended headphone impedance: 16-300 ohms
- Headphone output power: 150 mW @ 32 ohms
- Input sensitivity: 0.775V
- RCA output level: 1.4Vrms
- Bass/treble boost adjustment: ±6 dB Dimensions: 133 128 33 mm
- Weight: 480 g
