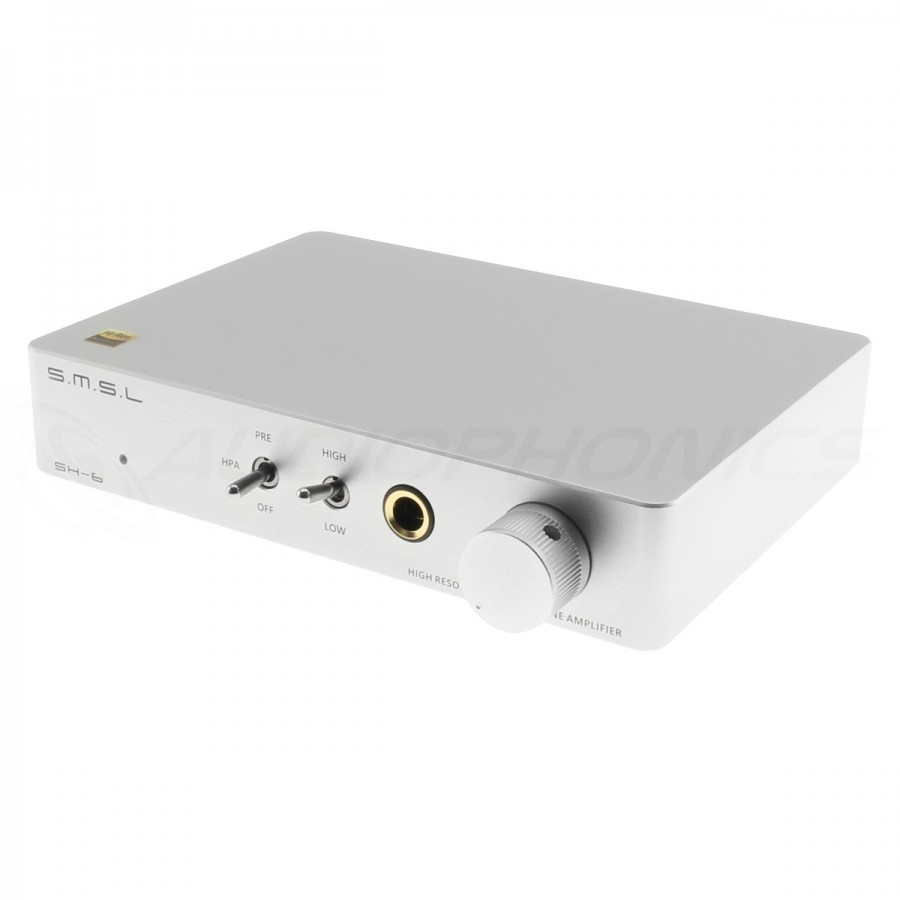

The SMSL SH-6 is a compact, affordable and powerful desktop headphone amplifier. The rugged aluminum chassis hides a variety of high-quality components to provide excellent musicality and richness of sound. The SH-6 also has a convenient power headroom, allowing it to adapt to a wide range of headphones, even high impedance ones, with an output power of 2×1.3W under a 32Ω load.
The gain control also allows you to take advantage of increased power for the most demanding headphones. When it comes to connectivity, the SH-6 is simple and efficient. It has a stereo RCA input, a 6.35mm headphone output, and an RCA pre-out.
Characteristics of SMSL SH-6:
- Product Type: Headphone Amplifier
- Input: 1x stereo RCA
- Outputs: 1x Stereo RCA Pre-out/1x Jack 6.35mm headphone output
- Output Power: 2x 2.6W @ 16 ohms/2x 1.3W @ 32 ohms
- SNR: 134 dB
- Output noise: 1.3 µV
- THD+N: -123 dB, 0.00006%% (1 kHz, 32 ohms)/-118 dB, 0.00012%% (20-20 kHz, 32 ohms, 0 dB)
- THD: -125 dB, 0.00006%
- Input impedance: 47 kOhm
- Output Impedance: Amp: about 0 ohms/pre-out: 22k ohms
- Frequency response: 20 Hz – 500 kHz (-3 dB)
- Gain: Low: 0dB/High: 15.5dB
- Consumption: 30W
- Standby consumption: 0.1W
- Dimensions: 140 x 115 x 28 mm
- Weight: 380 g
- Color: silver
