The Sabaj A20A 2022 is a powerful, high-performance Class D stereo amplifier. With 2x170W of power at 4Ω, it will enable you to accompany even the most demanding speakers while delivering a particularly compelling sound reproduction that is both accurate and rich. Moreover, it can operate in BTL mono mode, delivering 350W of power, and will be able to fully control the subwoofer thanks to a special mode.
Sabaj A20A can be used in BTL mode. This way you can get a mono amplifier capable of delivering 350 watts of power, ideal for accompanying demanding loudspeaker systems.
In addition to RCA and XLR inputs, Sabaj A20A is equipped with a Bluetooth 5.0 receiver, which allows you to stream and control music remotely, for example, from a smartphone or tablet.
The Sabaj A20A Class D amplifier stage uses the highly efficient Infineon MA5332M chip, capable of delivering significant power of 2x170W at 4Ω or 350W in BTL mono. It also offers sound restitution with great precision and excellent dynamics, overall with great fidelity.
Characteristics of Sabaj A20A (2022):
- Product Type: Amplifier
- Amplification Type: Class D
- Amplification chip: Infineon MA5332M
- Number of channels: Stereo (2) or mono BTL (1)
- Output Power: 2 170 W @ 4 ohms / 2 90 W @ 8 ohms / 1 * 350 @ 4~8 ohms (BTL)

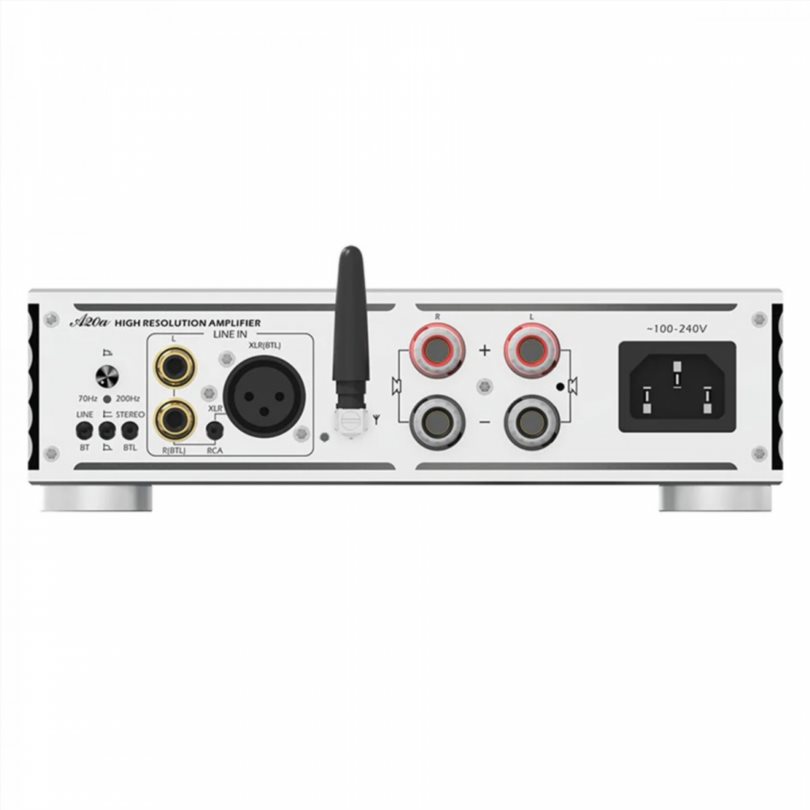

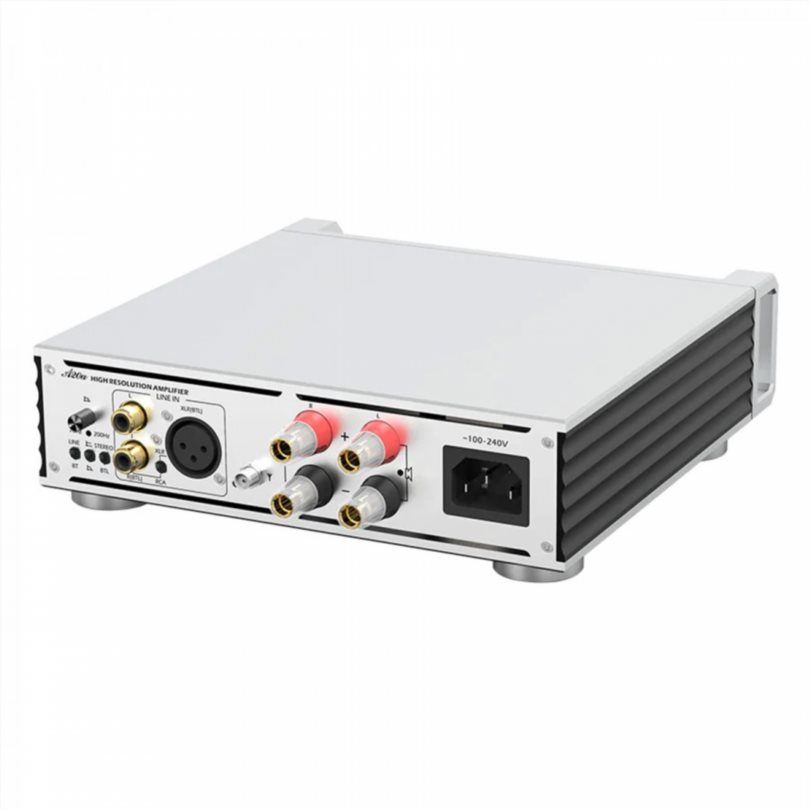

- Inputs: 1* stereo RCA/ 1* XLR
- Output: Acoustic terminals
- THD+N: 0.004%
- SNR: 103 dB
- Channel separation: 90 dB
- Low cut frequency range: 70~200Hz
- Input sensitivity/impedance: 430mV/22k ohms
- Supply voltage: 100-240VAC
- Dimensions (WH): 200x187x60 mm
- Weight: 1.8 kg
- Housing material: aluminum
