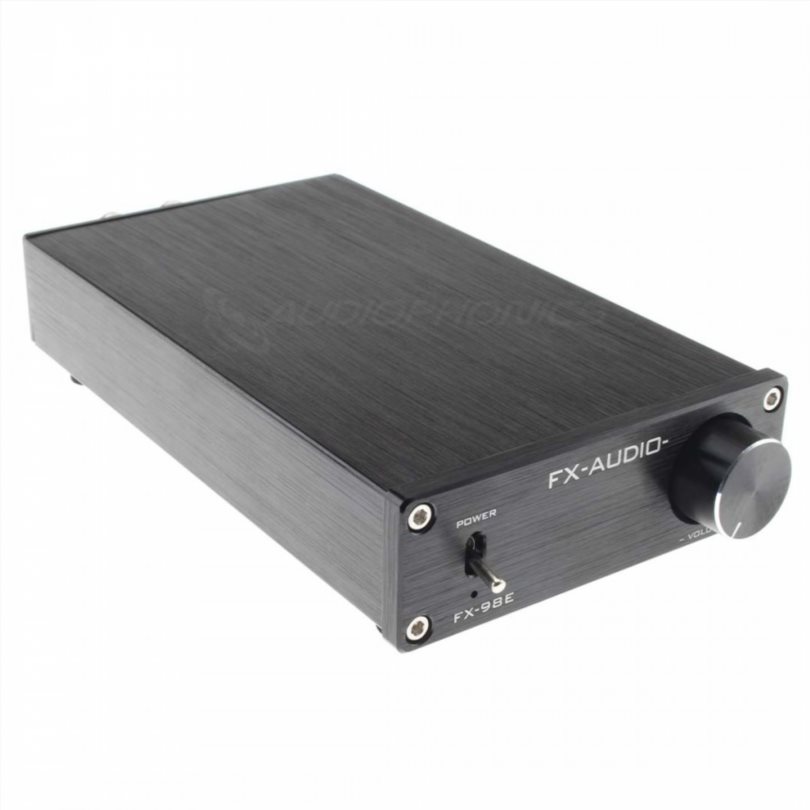

FX-Audio FX98E: Class D amplifier based on the TDA7498E chip
The integrated amplifier FX-AUDIO FX98E is a class D amplifier based on the TDA7498E chip, which allows it to develop power up to 2×100 W @ 4 Ohms (THD+N = 1%). This means it can drive the most demanding bookshelf or floorstanding speaker systems on a budget. FX-AUDIO FX98E is equipped with high-quality circuits and components such as […]
The integrated amplifier FX-AUDIO FX98E is a class D amplifier based on the TDA7498E chip, which allows it to develop power up to 2×100 W @ 4 Ohms (THD+N = 1%). This means it can drive the most demanding bookshelf or floorstanding speaker systems on a budget.

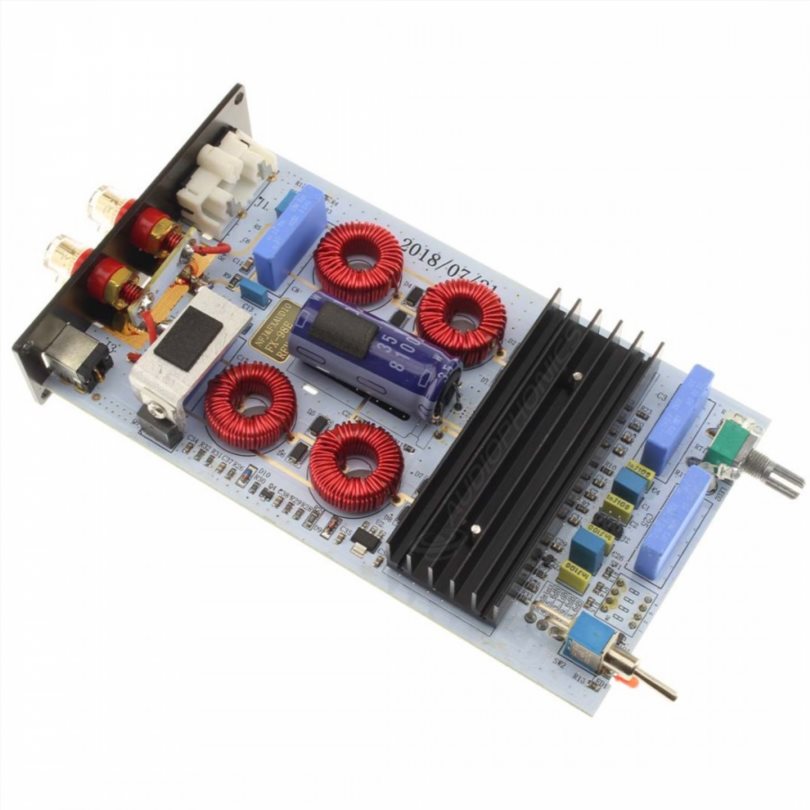

FX-AUDIO FX98E is equipped with high-quality circuits and components such as 8100uF 35V capacitor, 4 power inductors, AMS1117 voltage regulator, F9530N MOSFET and TDA7498E amplifier IC, placed under the heatsink for efficient heat dissipation.
The gain of the FX-Audio FX98E is adjusted using a DIP switch located on the underside of the case. Possible values: 23.6 dB, 29.6 dB, 33.1 dB, 35.6 dB.
Characteristics of FX-Audio FX98E:
- Item Type: Integrated Amplifier
- Amplifier chip: TDA7498E
- Amplification Type: Class D

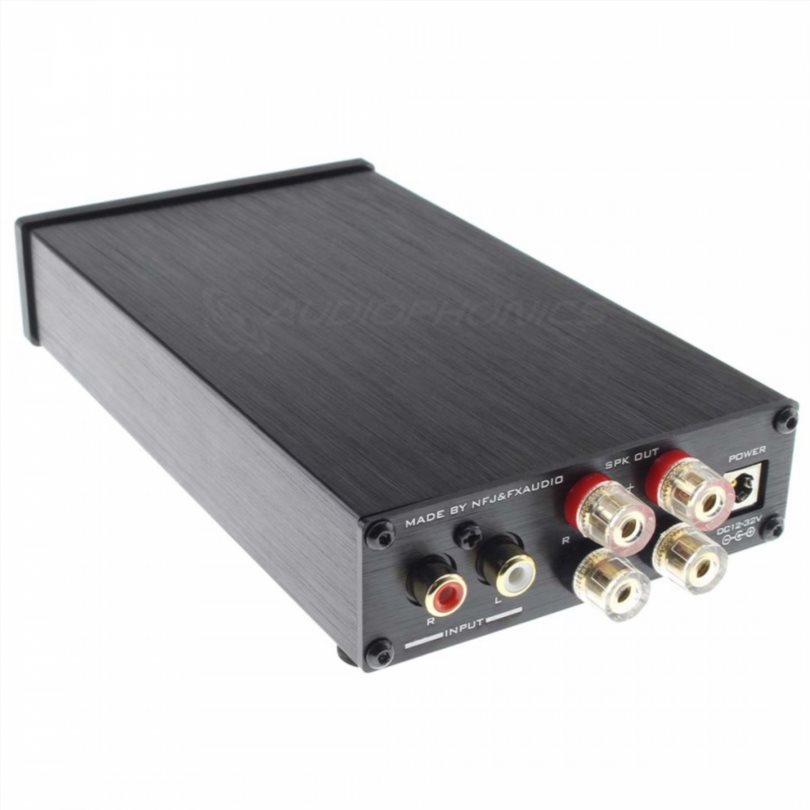

- Input: 1x RCA stereo
- Output: Speaker terminal
- Output power: 2x 100 W 4 ohms (THD+N = 1%)
- SNR: 92 dB
- Clamp impedance: 4 Ω -8 Ω
- Power: DC 12V-32V on DC 5.5 x 2.5 mm connector
- Dimensions: 96 x 168 x 33 mm
- Weight: 462 g
- Black color
