Denon DNP-F109 belongs to the classic generation of Denon network players and is one of the components of the Denon D-F109 mini-system, which includes a stereo receiver and two speakers. However, it can work separately and is easily integrated into any modern stereo system. There is a built-in Wi-Fi module on board, allowing you to connect to the network wirelessly.
This device is assembled in a small vibration-proof case with a front aluminum panel, which has a slightly curved profile. In the central part there is a three-line organic electroluminescent display (OLED). On the left is a miniature source selection button, and then there is a power key with an LED. On the right is a joystick menu navigator with a central ENTER key, which is also responsible for the play/pause function. The kit includes a compact remote control with conveniently located buttons that allow you to control playback, select signal sources, adjust the display brightness, configure the network connection, etc.

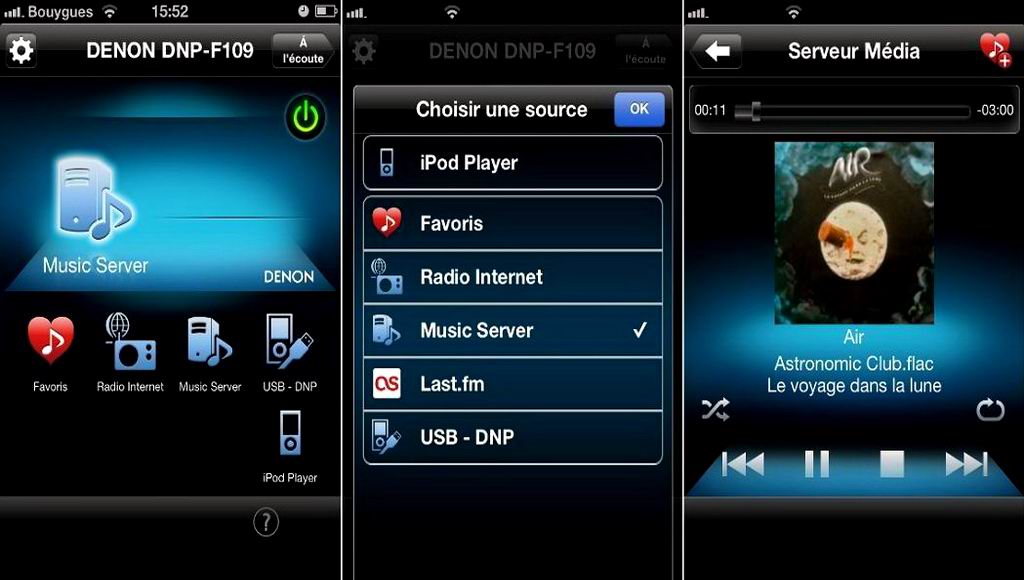

The circuit topology of this unit provides the shortest path for the incoming signal. This helps to avoid distortions introduced by additional circuits. The model is certified according to the DLNA 1.5 protocol, which allows it to connect to a local computer network using a LAN interface and listen to audio files from a PC and NAS servers, as well as streaming content from the Internet, including web radio and music libraries of various popular services such as Last.fm. Thanks to the AirPlay function support, the player can play music from iTunes libraries or Apple gadgets without using a wired connection. The Denon Remote App application allows you to control this device using smartphones with the iOS or Android operating system.
The Denon DNP-F109 model is equipped with a USB port compatible with iPod and iPhone. With its help, the “apple” gadgets can be recharged even when the device is in standby mode. Outputs: linear RCA and coaxial. There is an Ethernet port and two 3.5 mm jacks for connecting via the system bus when the DNP-F109 is used as part of a system consisting of branded components of the F109 series. Thanks to its compact size, functionality and high sound quality, the Denon DNP-F109 will appeal to fans of modern technology with audiophile inclinations.
Denon DNP-F109 Specifications
DAC resolution 24-bit/192 kHz
Frequency range 2 Hz – 50 kHz (at 192 kHz), 2 Hz – 20 kHz (at 44.1 kHz)
Dynamic range 98 dB
Signal-to-noise ratio 110 dB
Total harmonic distortion 0.0035% (1 kHz)
DLNA 1.5 certified yes
Wi-Fi Multimedia (WMM) certified yes
Supported file formats MP3, WMA, AAC, FLAC HD (24-bit/192 kHz), WAV (24-bit/192 kHz), ALAC
Display OLED, three-line
AirPlay function yes
Supports Denon Remote App for iPod/iPhone and Android Phone yes
Built-in Wi-Fi antenna yes
Supports vTuner Internet radio (MP3 / WMA)
Inputs Ethernet port, USB port (compatible with iPod, iPhone)
Outputs linear RCA, coaxial
Other two 3.5 mm jacks for connection via the system bus
Remote control RC-1164
Power consumption 16 W
Power consumption in standby mode less than 0.2 W
Dimensions (WxHxD) 250x82x257 mm
Weight 2 kg
