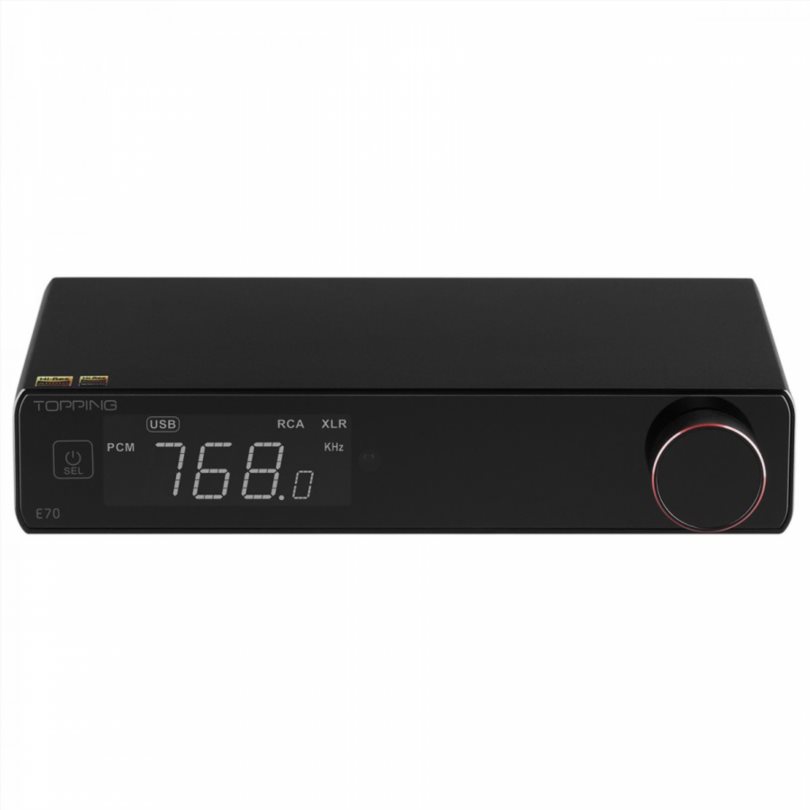

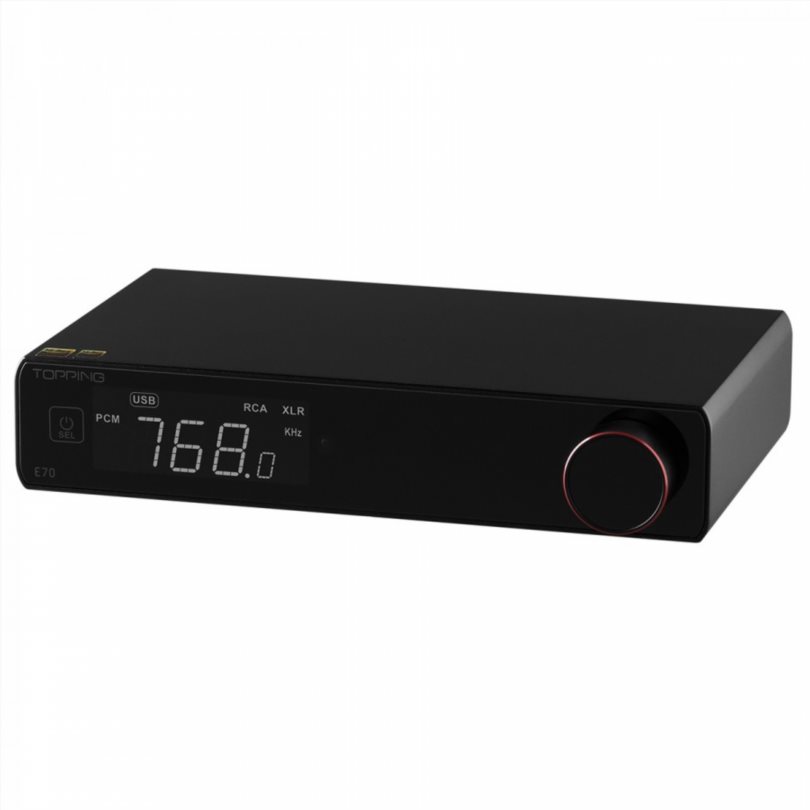

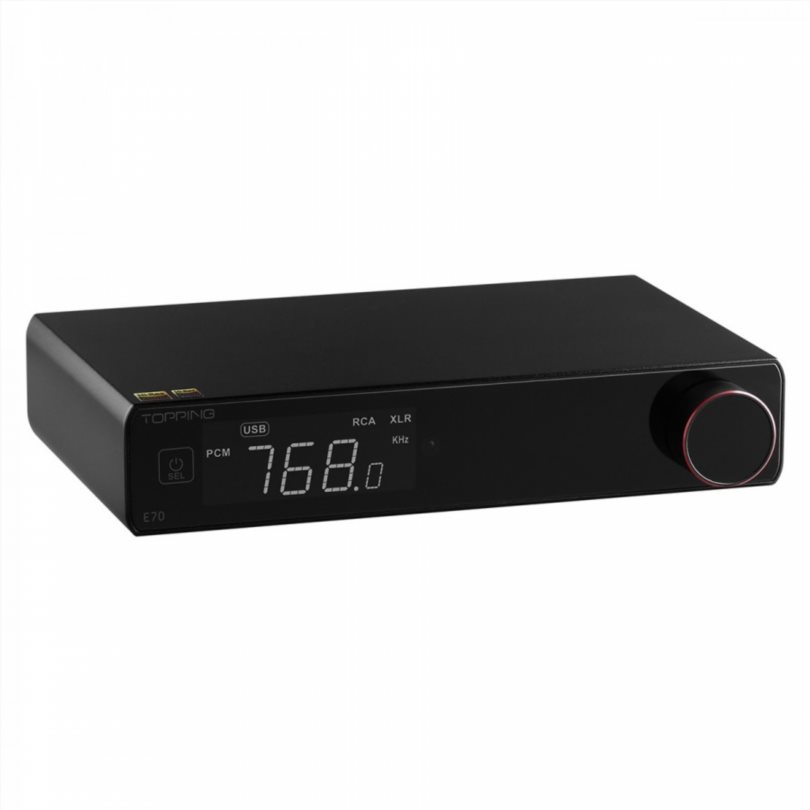

Topping E70 is a powerful DAC with a nice design. The model is able to offer rich and accurate sound reproduction combined with smart and practical features such as Bluetooth, 12V trigger or adjustable output level.
The E70 provides balanced XLR and single-ended RCA output. The input is selectable and allows you to use only one or both at the same time. Additionally, Topping offers a smart feature that allows you to adjust the level of these outputs based on usage and desired integration. Thus, the XLR output level can be changed from 4 V to 5 V, and the RCA output level can be changed from 2 V to 2.5 V.
The Topping E70 has a built-in digital-to-analog conversion stage based on the ESS ES9028Pro chip. This eight-channel, 32-bit DAC uses HyperStream II architecture to deliver high-quality audio reproduction with excellent clarity and fidelity.
Equipped with a Qualcomm QCC5125 Bluetooth 5.1 receiver chip, the E70 allows you to remotely stream music directly from your smartphone or tablet. It also supports aptX, aptX HD, aptX Adaptive and LDAC high-definition transmission codecs, ensuring high-quality playback over Bluetooth.
The E70 also benefits from an all-new I/V conversion circuit designed to provide low distortion and noise in a smaller footprint. It is pushed to the limit to allow the DAC to reach its full potential.
The Topping E70’s USB input is linked to the latest generation XMOS XU316 interface with a custom Thesycon driver. This powerful interface supports high-resolution audio streams up to PCM 32bit 768kHz and DSD512, providing a very high-quality listening experience.
Characteristics of Topping E70:
- Product Type: DAC
- Inputs: Bluetooth 5.1/1x USB-B/1x coaxial/1x optical Toslink
- Outputs: 1x single-ended stereo RCA/1x balanced stereo XLR
- DAC chip: ES9028Pro
- Bluetooth Receiver: QCC5125
- USB Interface: XMOS XU316
- Supported Bluetooth codecs: AAC, SBC, aptX, aptX HD, aptX LL, aptX Adaptive, LDAC
- Supported sampling rates: USB: PCM up to 32 bit 768 kHz, Native DSD up to DSD512, DSD DoP up to DSD256/Optical / Coaxial: PCM up to 24 bit 192 kHz, DSD DoP up to DSD64 Measurements Paramètres DAC E70 (Sortie ligne / Entrée USB à 96kHz )
- RCA XLR
- THD+N @ 1kHz, A-Weighted 0.00008% 0.00006%
- THD @ 20Hz-20kHz, 90kBw, no weighting 0.0007% 0.0002%
- SNR @ 1 kHz, A-weighted 126 dB 132 dB
- Dynamic range @ 1 kHz, A-weighted 126 dB 132 dB
- Frequency response 20Hz-20kHz (±0.2dB)/20Hz-40kHz (±0.4dB) 20Hz-20kHz (±0.2dB)/20Hz-40kHz (±0.4dB)
- Output Level 2.1Vrms @ 0dBFS (4V Mode)/2.5Vrms @ 0dBFS (5V Mode) 4.2Vrms @ 0dBFS (4V Mode)/5Vrms @ 0dBFS (5V Mode)
- Noise (A-weighted) 1.3 µVrms 1.3 µVrms
- Crosstalk -133 dB @ 1 kHz -149 dB @ 1 kHz
- Channel balance 0.3 dB 0.3 dB
- Output impedance 50 ohms 100 ohms
- Color: black or silver
- Dimensions: 200x138x40 mm
