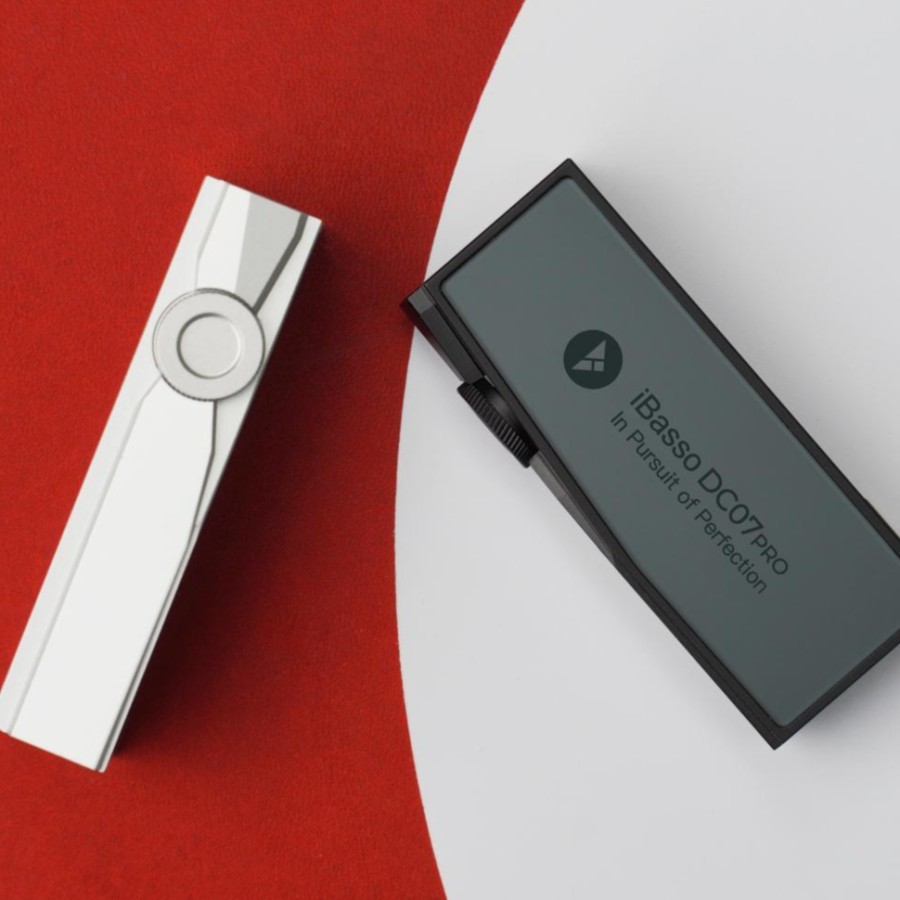

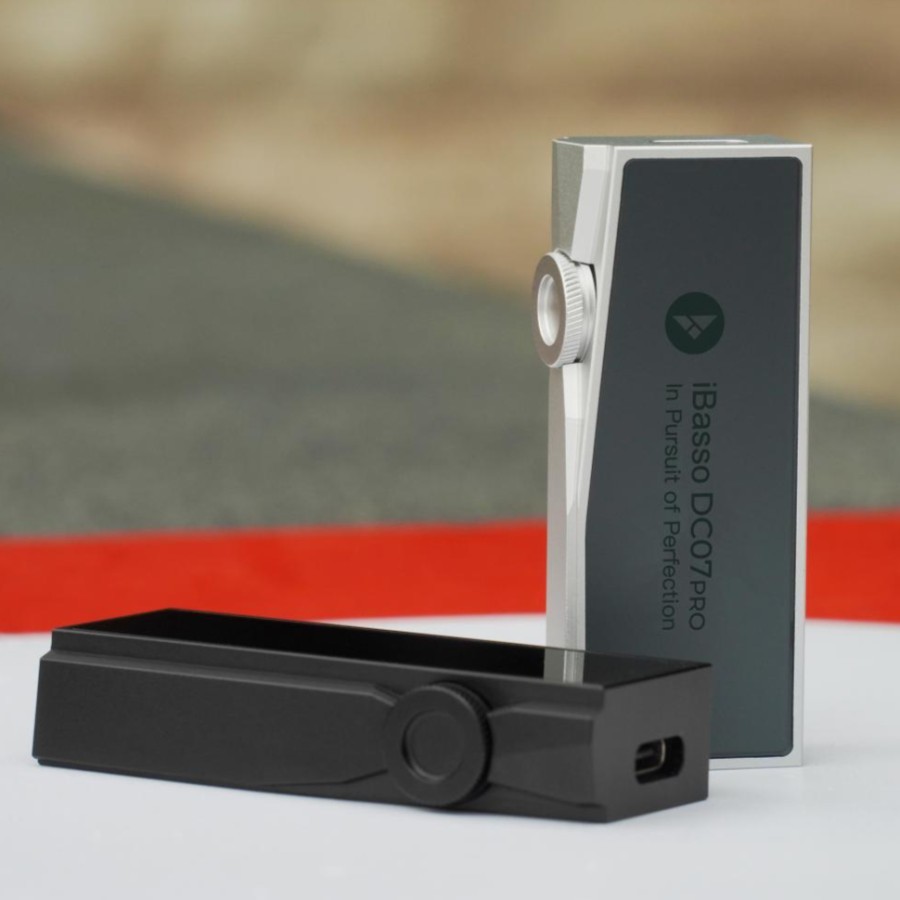

iBasso DC07 Pro: DAC and headphone amplifier powered by 4 CS43131 chips

The iBasso DC07 Pro features 4 CS43131 chips from Cirrus Logic, enhancing sound quality with minimal jitter thanks to iBasso's FPGA technology. With low power consumption and high output power, this DAC and headphone amplifier is compatible with a wide range of headphones.

Equipped with a 0.96″ OLED screen and a multi-function rotary control, the DC07 Pro allows for easy control and configuration without the need for additional applications. It supports both Android and iOS devices, offering universal compatibility and ease of use.

Specifications of the iBasso DC07 Pro:

– THD+N: 4.4 mm: -120.2 dB (0.000098%) at 1 kHz with 300 ohm load / 3.5 mm: -116 dB (0.00017%) at 1 kHz with 300 ohm load
– Output Voltage: 4.4 mm: 2.8Vrms (Low) / 3.5Vrms (Mid) / 4Vrms (High) / 3.5 mm: 1.4Vrms (Low) / 1.73Vrms (Mid) / 2Vrms (High)
– Output Power: 4.4 mm: 510mW + 510mW at 16 ohms / 430mW + 430mW at 32 ohms / 3.5 mm: 210mW + 210mW at 16 ohms / 118mW + 118mW at 32 ohms
– SNR: 4.4 mm: 134 dBA / 3.5 mm: 129 dBA
– Dynamic Range: 4.4 mm: 134 dBA / 3.5 mm: 129 dBA
– Channel Separation: 4.4 mm: 142 dB / 3.5 mm: 136 dB
– Frequency Response: 4.4 mm: 10 – 80000 Hz (-0.5 dB) / 3.5 mm: 10 – 75000 Hz (-0.5 dB)
– Low Noise: 4.4 mm: 0.85 μV / 3.5 mm: 0.76 μV
– Dimensions: 59 × 23.5 × 12.5 mm
– Weight: 23 g.
