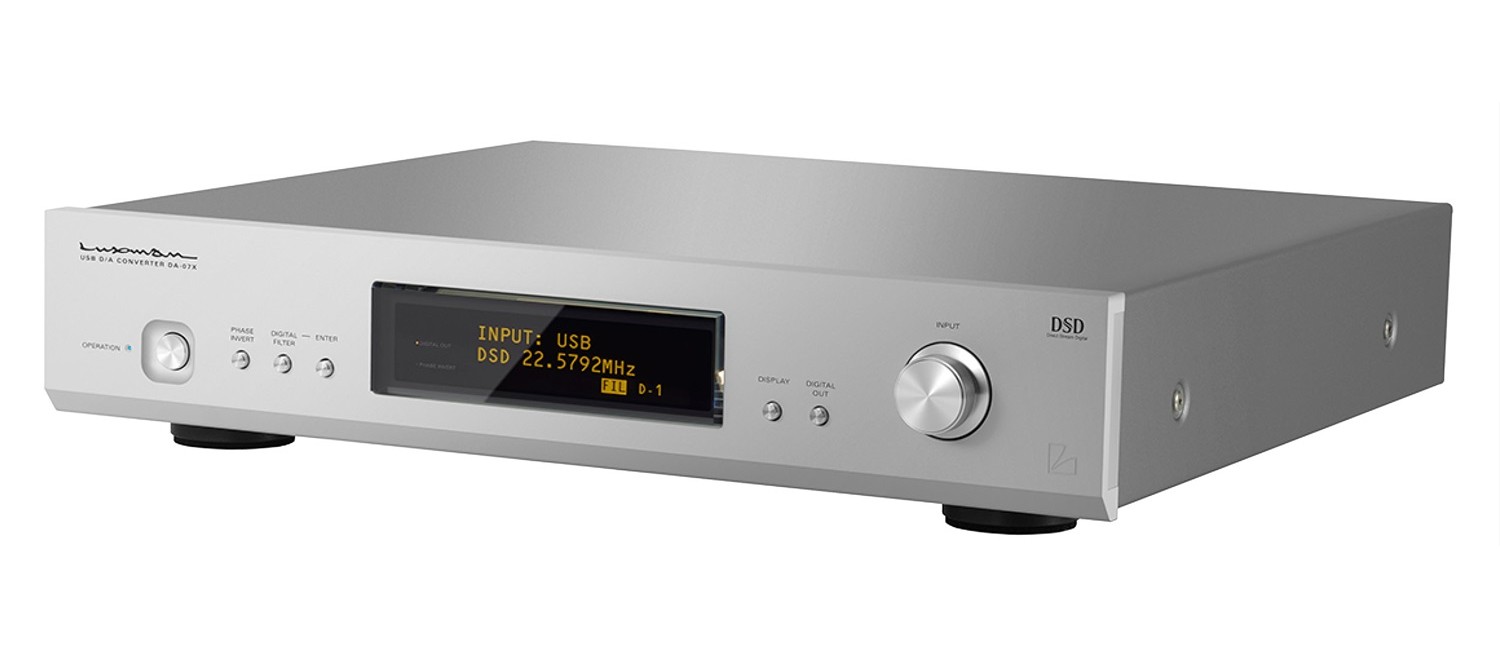

Luxman DA-07X

Luxman’s latest DAC converter is designed to enhance our digital-to-analog conversion needs, delivering exceptional sound quality.

This sleek device features a state-of-the-art digital processing circuit derived from the company’s premier CD player, the D-10X.

The Luxman DA-07X incorporates a high-performance DAC chip from ROHM, specifically the BD34301EKV, configured in dual mono mode. It supports a remarkable range of audio formats from the USB DAC input, accommodating up to 768KHz/32bit PCM and DSD 22.5MHz, and includes a comprehensive MQA decoder.

Luxman DA-07X
Luxman DA-07X

The analog circuitry boasts a fully balanced I/V conversion that utilizes the differential output of the DAC chip in mono operation. Additionally, it features a discrete buffer circuit functioning as a low-pass filter to effectively drive subsequent stages.

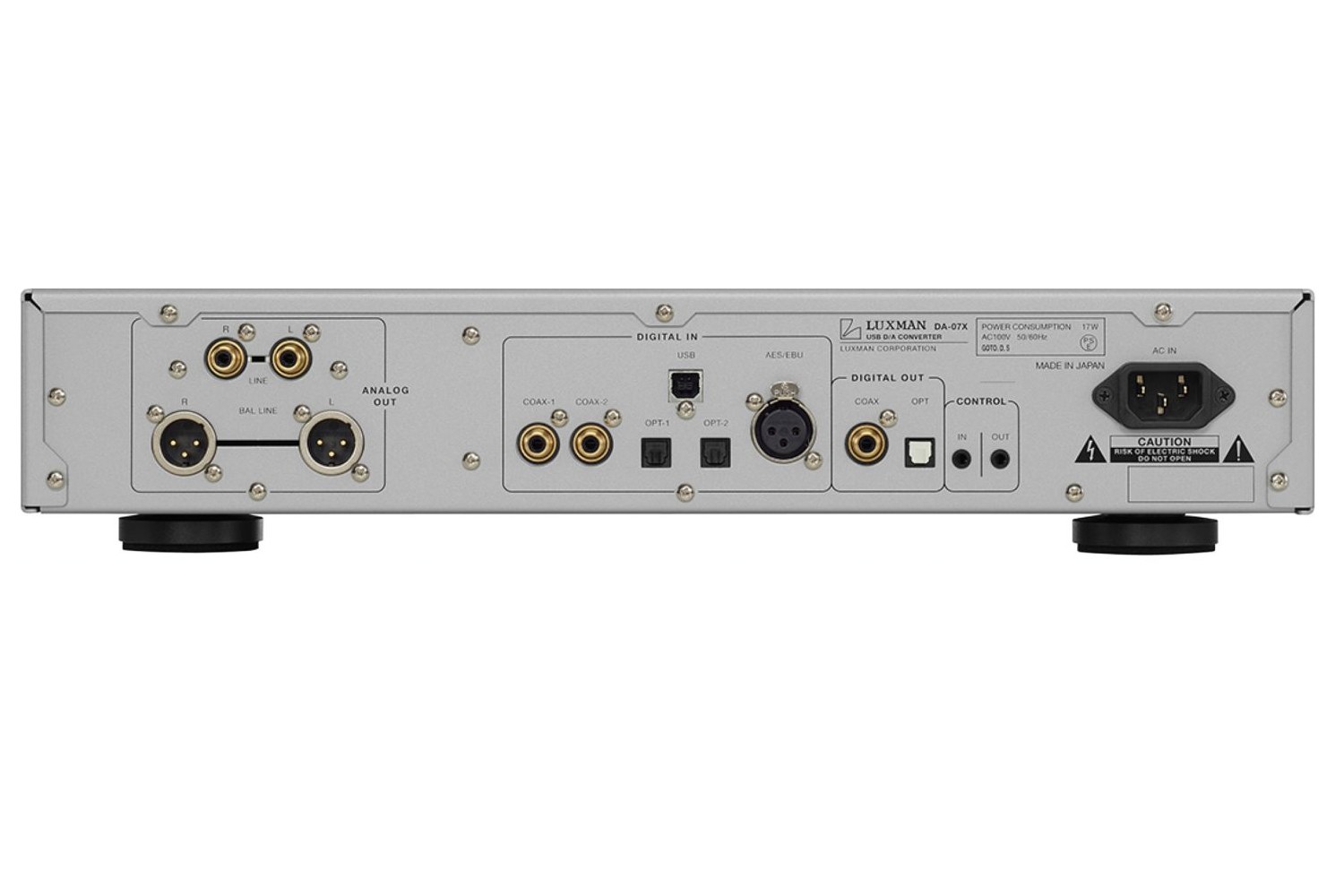

Luxman DA-07X Rear panel
Luxman DA-07X Rear panel

Moreover, the device is equipped with a filter switching capability and anti-jitter technology for each input. In addition to the USB DAC input (USB B), the DA-07X offers two coaxial digital inputs, two optical inputs, and one AES/EBU input. It also includes a digital-to-digital conversion function that can output the digital input signal, supporting up to 192KHz/24 bit in PCM format.

The signal is sent to both RCA and XLR outputs. There is also an option to disable the digital outputs (optical and coaxial) to enhance the quality of the analog outputs by blocking unnecessary signal paths.
