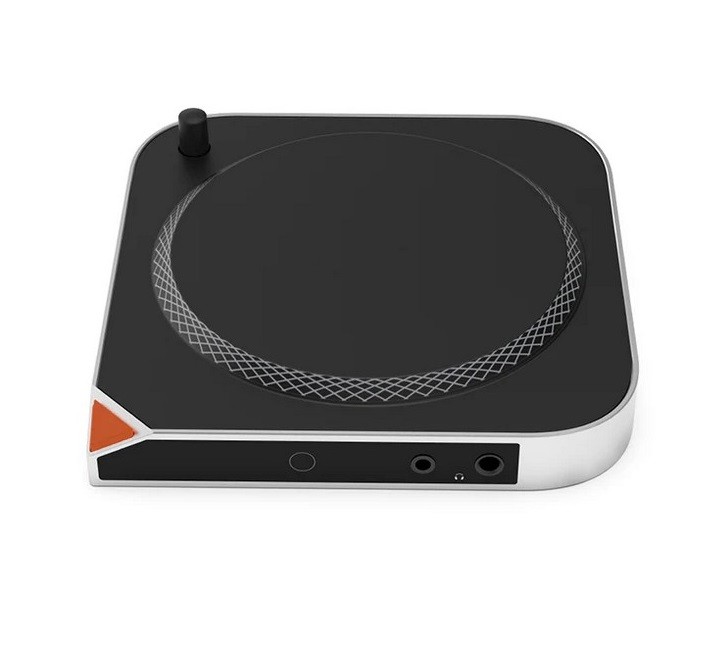

The SMSL DAC MINI is one of those products that makes you smile before you even plug it in. Not because it’s flashy or oversized, but because it’s quietly clever. Designed specifically to live under a Mac mini, this compact DAC and headphone amplifier feels less like an accessory and more like a missing Apple-approved audio module—only far more ambitious than anything Cupertino would dare to ship.
A DAC That Thinks Like a Mac User
Physically, the DAC MINI mirrors the footprint of the Mac mini almost perfectly. CNC-milled from a solid block of aluminum, the enclosure isn’t just about aesthetics—it adds rigidity, reduces resonance, and helps passively dissipate heat. Stack it under a Mac mini and it looks intentional, almost architectural, rather than like another random black box on your desk.
But the real party trick is the mechanical power-on system. Press the button on the front of the DAC MINI and your Mac mini wakes up. No software hacks, no scripts, no flaky USB wake logic—just a satisfying, tactile click that turns your computer on. It’s a small detail, but it’s the kind of detail that tells you the designers actually use this thing.
Under the hood, SMSL didn’t cut corners. The DAC MINI is built around the ESS ES9039Q2M, one of ESS Technology’s latest high-performance DAC chips. This is a modern, low-noise, high-linearity design that excels at both resolution and dynamic contrast—especially when paired with careful analog output stages.
Handling USB duties is the XMOS XU-316, a powerful multi-core USB controller known for rock-solid stability and excellent clocking. On macOS, it’s completely driverless, meaning you get instant plug-and-play support for high-resolution audio without installing anything. It also plays nicely with Windows, Linux, and even Android, making it surprisingly versatile for such a Mac-centric product.
PCM is supported all the way up to 768 kHz / 32-bit, while DSD goes up to DSD512, including DoP256. Overkill for most music libraries? Absolutely. But it guarantees headroom, future-proofing, and extremely gentle digital filtering in real-world playback.
Headphone Amplification

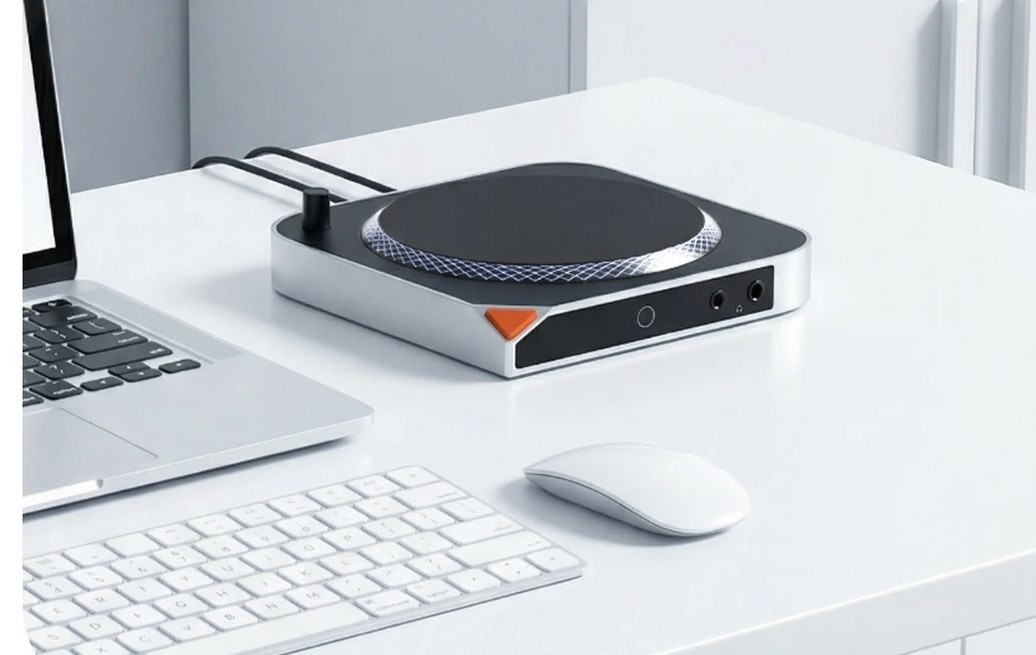

Despite its slim profile, the DAC MINI isn’t shy when it comes to driving headphones. You get both 3.5 mm single-ended and 4.4 mm balanced outputs, which is still rare at this size and price point.
Power output scales sensibly across impedances:
Low-impedance planars get plenty of current
Mid-impedance dynamics sound controlled and punchy
High-impedance headphones up to 600 ohms are handled with composure, even if this isn’t a “desktop brute-force” amp
Measured performance is excellent, with vanishingly low THD+N, a dynamic range up to 122 dB, and a signal-to-noise ratio of 121 dB. Translation: black backgrounds, clean transients, and zero audible hiss—even with sensitive headphones.
Connectivity

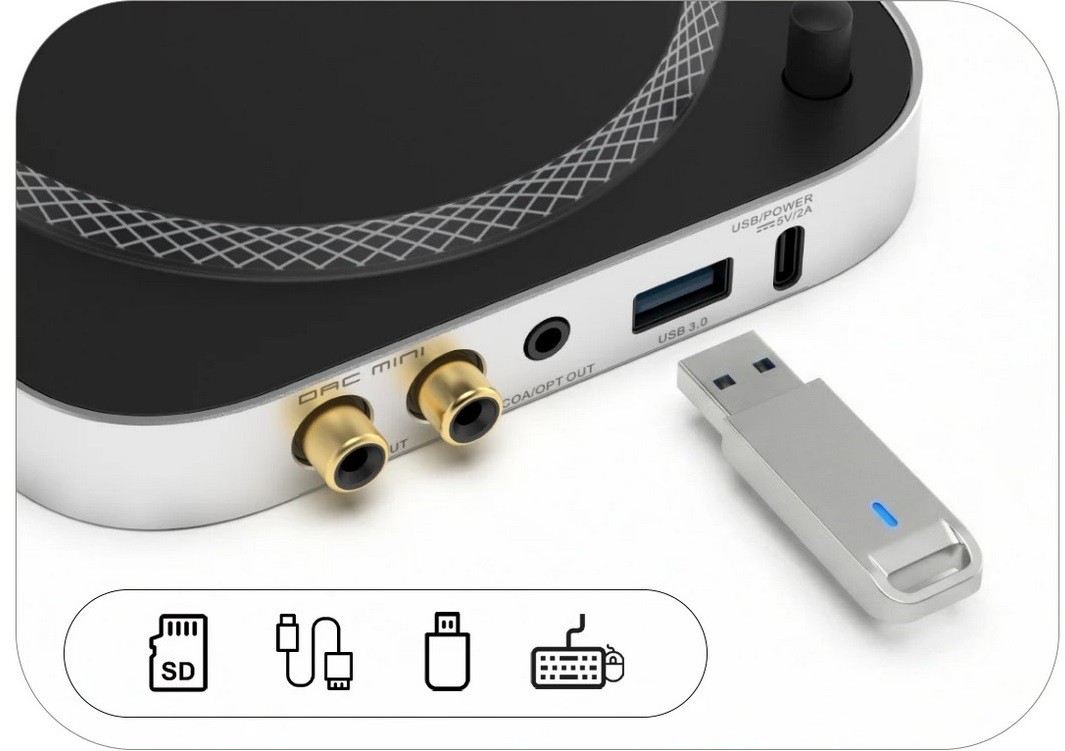

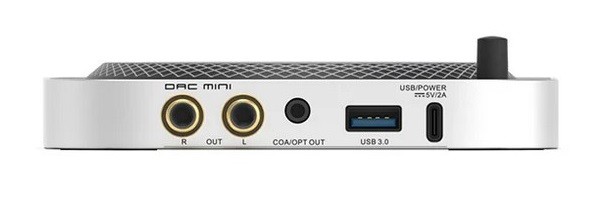

Around the back, the DAC MINI keeps things practical:
Line-level output (2 Vrms) for powered speakers or an external amplifier
Combined optical/coaxial digital output, allowing it to function as a USB-to-SPDIF bridge
An integrated USB hub, which is a subtle but very welcome addition—especially on Mac minis where ports always feel one short
This makes the DAC MINI more than just a DAC/amp. It becomes a desktop audio hub that reduces cable clutter and streamlines your entire setup.
Power Efficiency
In true Mac fashion, power consumption is refreshingly low. The DAC MINI draws less than 4 watts in operation and drops to under 0.3 watts in standby. You can leave it connected 24/7 without guilt—or heat buildup.
The SMSL DAC MINI isn’t trying to be the most powerful or the most exotic DAC on the market. Instead, it’s obsessively focused on integration, usability, and clean engineering. It’s a product that understands modern desktop audio: high resolution, minimal friction, compact form factor, and thoughtful features that actually improve daily use.
If you run a Mac mini and care about sound—even just a little—the DAC MINI feels less like an upgrade and more like a correction. This is what your Mac mini should have shipped with.
SMSL DAC MINI – Specifications
DAC: ESS ES9039Q2M
USB Processor: XMOS XU-316
Headphone Outputs: 3.5 mm / 4.4 mm balanced
Line Output Level: 2 Vrms
Output Power (32 Ω): up to 265 mW ×2
Output Power (150 Ω): up to 120 mW ×2
Output Power (300 Ω): up to 60 mW ×2
Output Power (600 Ω): up to 30 mW ×2
THD+N (Line Out): 0.000125%
THD+N (Headphone Out): 0.000178%
Dynamic Range: up to 122 dB
Signal-to-Noise Ratio: up to 121 dB
PCM Support: 44.1–768 kHz / 32-bit
DSD Support: DSD64–DSD512
DoP: DoP256
Compatibility: Windows / macOS / Linux / Android
Power Consumption: < 4 W
Standby Power: < 0.3 W
Dimensions: 127 × 28.2 × 133.6 mm
Weight: 0.244 kg
