miniDSP Flex is a 3rd generation 2-in/4-out audio processor. It retains the powerful floating-point processor used previously and redesigns the I/O architecture to provide flexible connectivity. This version features single-ended stereo RCA inputs and outputs, as well as a full panel of digital inputs with Bluetooth, USB-B, coaxial and Toslink optical.

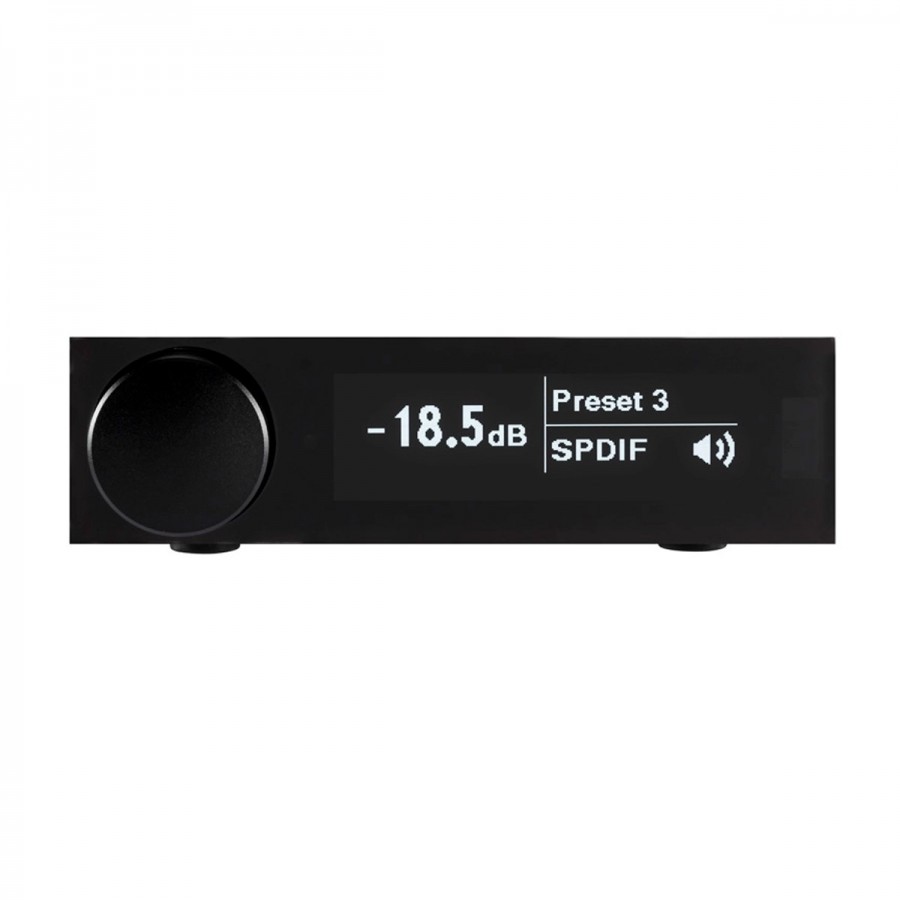

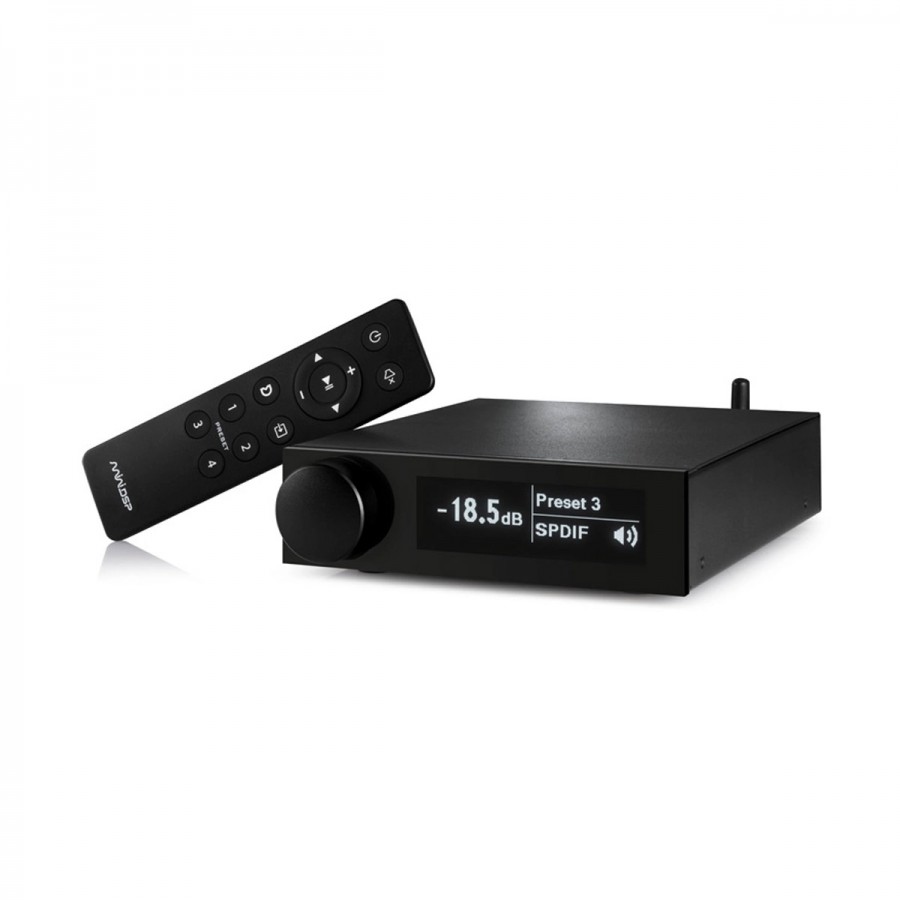

The OLED display on the front panel and volume control make it easy to operate the device. Of course, the Flex series includes powerful audio processing features developed by miniDSP: flexible parametric EQ, IIR and FIR filters, crossovers, programmable bi-quad filter and delay for each output… In addition, all systems can be software enhanced using the Dirac equalizer Live® for precise tuning across the entire frequency range.
miniDSP Flex offers a wide range of applications and uses, whether in combination with a compact digital stereo preamplifier, for subwoofer integration or for active speaker optimization.
MiniDSP Flex Features:
- Product Type: DSP
- PROCESSOR: Analog Devices DSP SHARC ADSP21489 400MHZ floating point
- USB Interface: XMOS
- Inputs: Bluetooth/1x USB-B/1x coaxial/1x optical Toslink/1x stereo RCA
- Outputs: 2x stereo RCA
- Supported Bluetooth codecs: AAC, SBC, aptX, aptX HD, LDAC
- USB recording function: 4-channel output processing
- Processing sampling rate: 32bit 96kHz/(32bit 48kHz with Dirac Live® license)
- Analog input impedance: 100 kOhm
- Analog output impedance: 200 ohms
- Maximum input/output levels: 2Vrms / 2Vrms
- Frequency response: 20Hz-20kHz ±0.1dB
- SNR (digital to analogue): 120 dB(A)
- THD+N (D/A): -110 dB (0.0003%) ±3 dB
- Crosstalk (D/A): -120 dB
- SNR (aanlog – analog): 115 dB(A)
- THD+N (analog – analog): -106 dB (0.0005%) +/-3 dB
- Crosstalk (analog to analog): -115 dB
- Filtering Technology: FIR + IIR/Dirac Live® Optional: 3x Full Band Equalization (20~20kHz)
- DSP presets: up to 4 profiles
- Supply voltage: DC 12V 1.6A (power adapter included)
- Consumption: 9 W
- Standby consumption: 2.5 W
- Dimensions: 150 x 180 x 41 mm
- Black color
