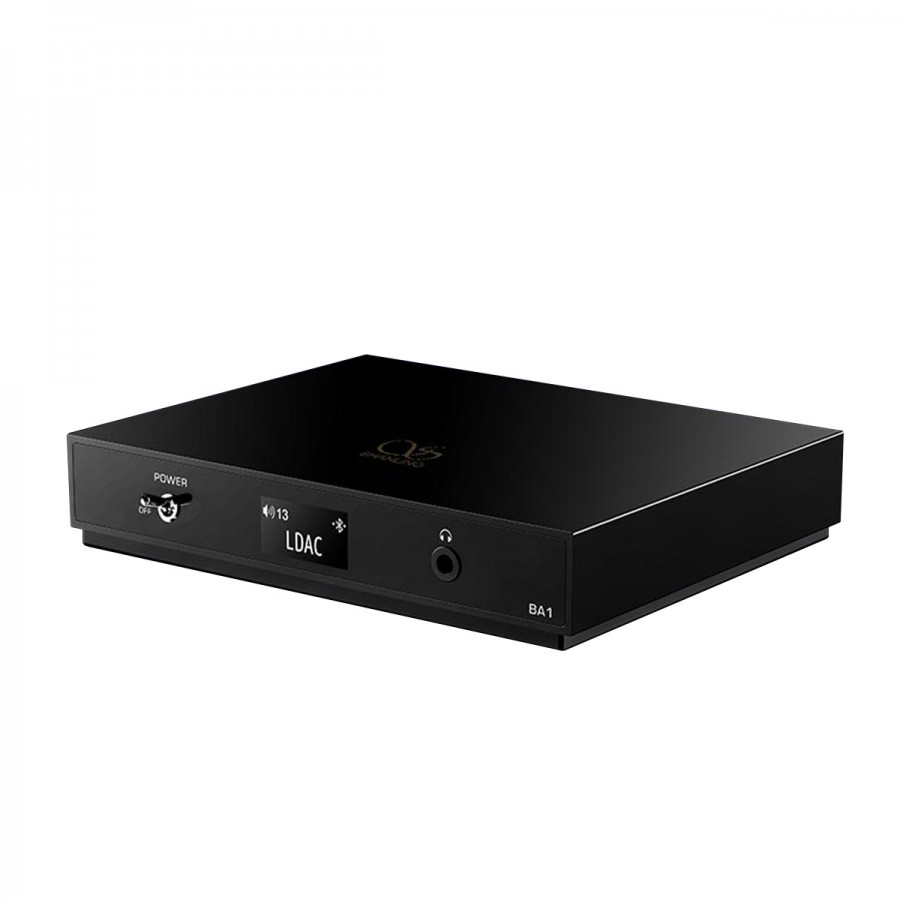

Shanling ‘s BA1 is a desktop Bluetooth 5.0 receiver. It is equipped with CSR8675 Bluetooth receiver chip, ESS ES9218P digital-to-analog conversion chip, and is particularly simple and convenient to use.
The BA1 digital-to-analog conversion stage is equipped with an ESS ES9218P DAC chip. It allows for high-quality sound reproduction, in particular due to the very low level of distortion.
Featuring Qualcomm CSR8675 chip, BA1 supports Bluetooth 5.0, allowing you to transfer audio files easily and remotely. This chip supports high-definition Bluetooth codecs such as HWA, aptX, aptX HD, aptX LL and LDAC, allowing you to enjoy high-quality audio files.

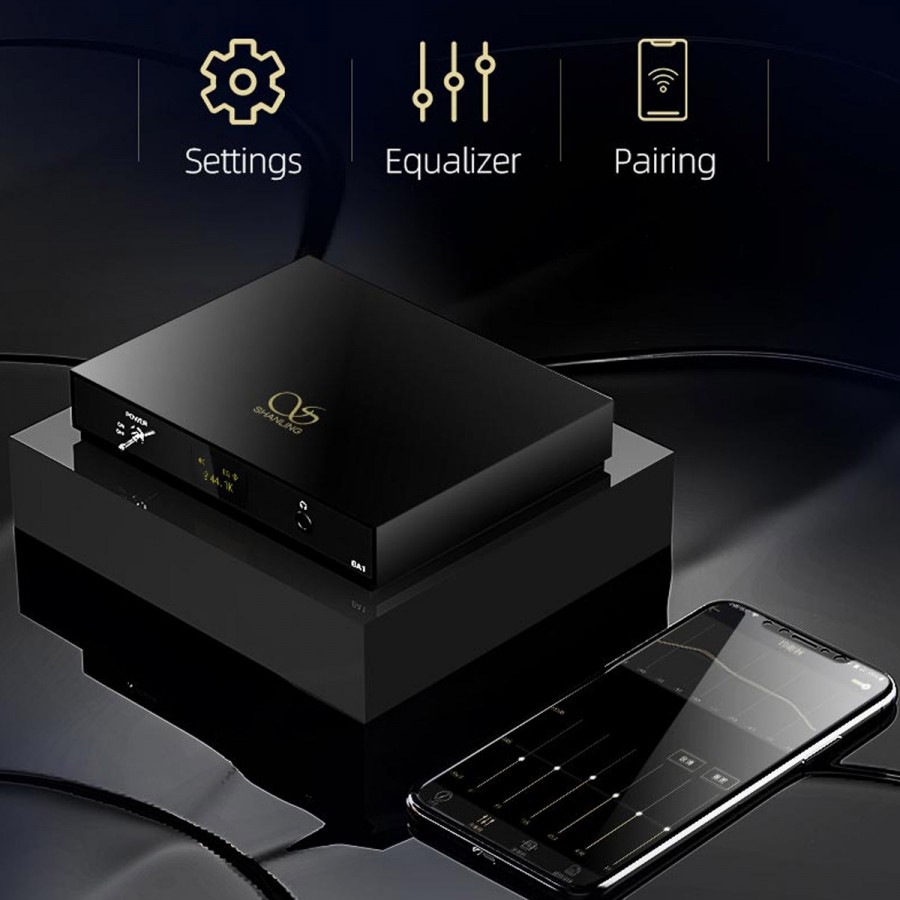

Thanks to a dedicated control app, Shanling BA1 offers advanced settings such as access to digital filters, equalizer and channel balance controls.
Shanling BA1 can also connect directly to a computer via USB to use it as an external USB DAC. Installation is extremely simple and does not require any driver installation.

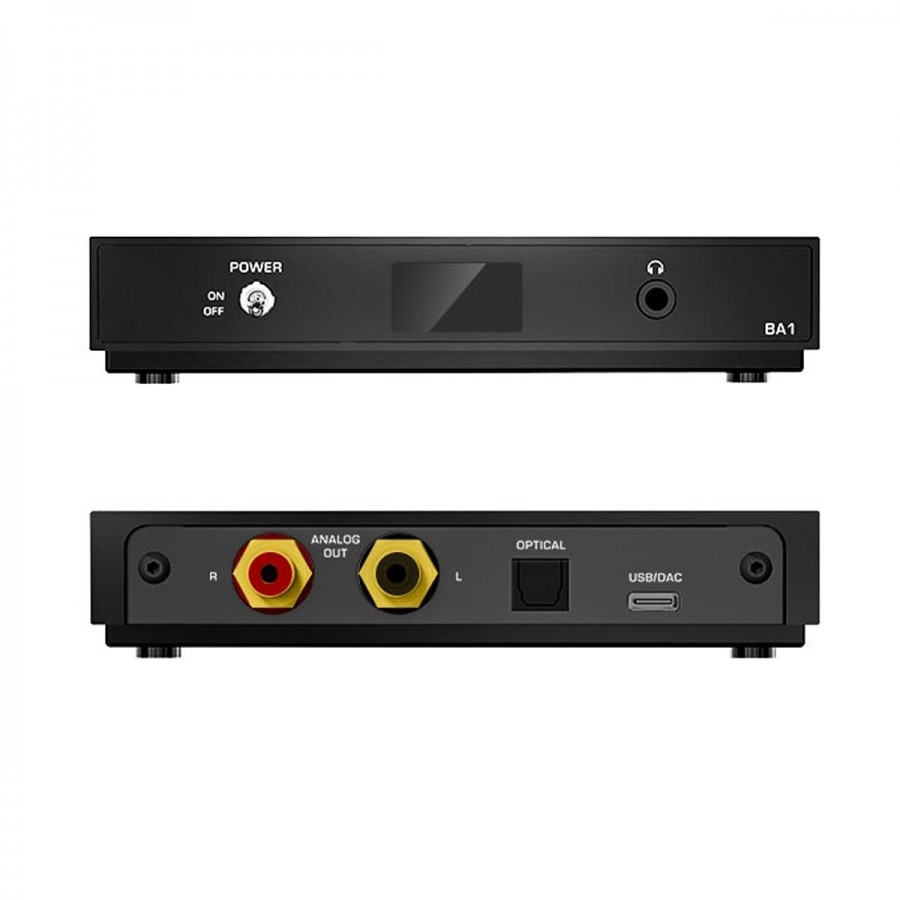

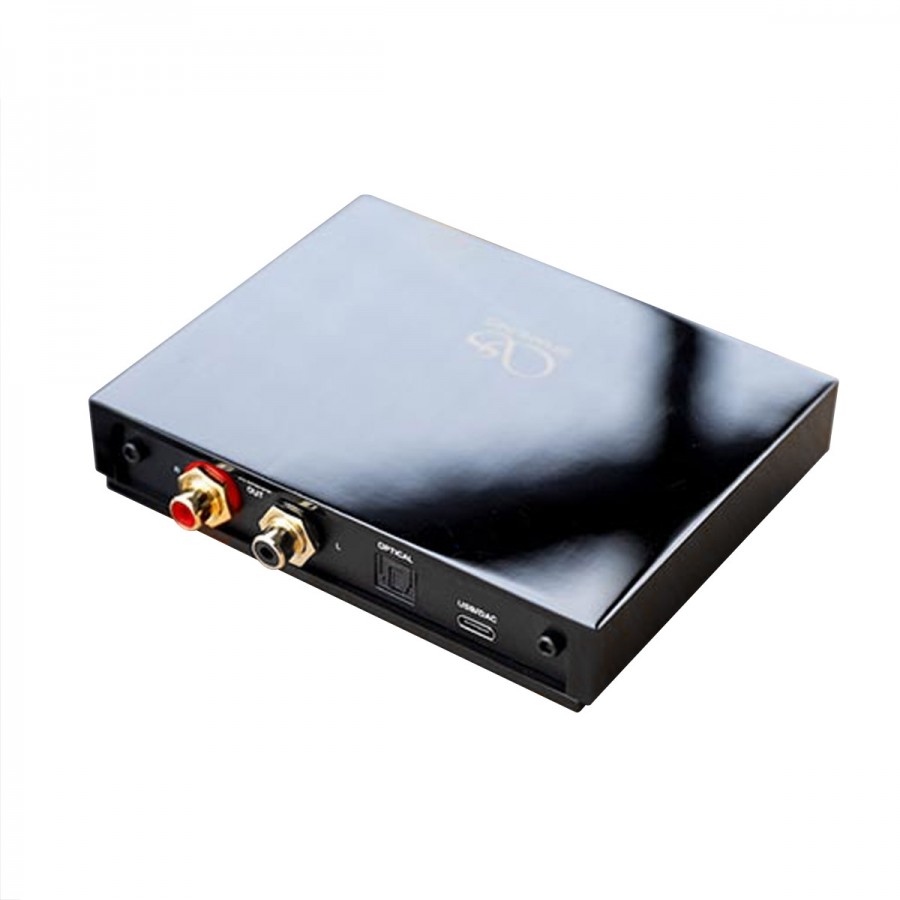

BA1 has 3 different outputs to adapt to each user's audio system. There is a 3.5mm headphone output, a stereo RCA output, and a Toslink optical output.
Shanling BA1 Specifications:
- Product Type: Bluetooth Receiver
- Bluetooth receiving chip: Qualcomm CSR8675
- DAC chip: ESS ES9218P
- Bluetooth version: 5.0
- Supported Bluetooth codecs: SBC, AAC, aptX, aptX HD, aptX LL, LDAC, LHDC
- Inputs: Bluetooth 5.0/1x USB-C
- Output: 1x Jack 3.5mm headphone output/1x stereo RCA/1x optical Toslink
- Supported sampling rates: Bluetooth (LDAC/LHDC) : PCM up to 24bit 96kHz/USB DAC: PCM up to 16bit 48kHz.
- Transmission distance: 10m
- Output Level: Headphone Out: 1.41 V/RCA: 2 V
- SNR: -115 dB
- Channel separation: 73 dB
- THD: 0.0085%
- Power: 5V 1A via USB-C (power supply not included)
- Dimensions: 128 x 100 x 26 mm
- Weight: 205 g
