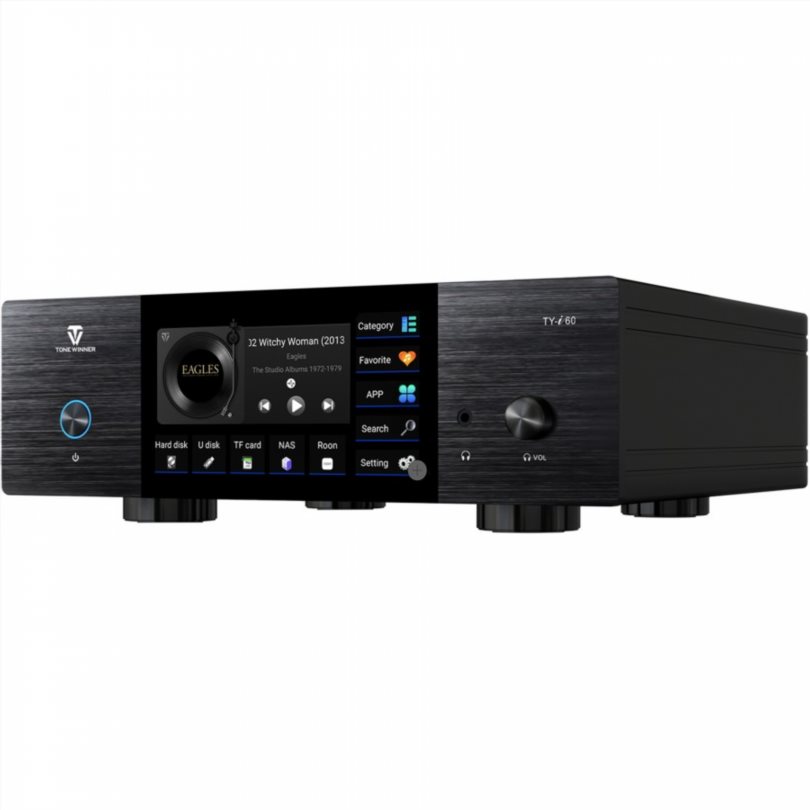

Tonewinner TY-i60 is an innovative network audio player crafted to deliver superior sound quality through advanced components and an intuitive Android-based interface. It features an XMOS XU-316 USB interface and an ES9038 digital-to-analog converter, enabling playback of high-resolution audio formats, including PCM 32-bit 768 kHz, DSD512, and MQA.
The user-friendly 5-inch color touchscreen provides access to widely used streaming platforms including Spotify, Deezer, Qobuz, Tidal, and Apple Music. This device supports AirPlay, DLNA, and Roon protocols, enabling seamless control through a mobile application or remote control.
The TY-i60 offers a diverse array of connectivity options, making it an adaptable choice for integration into different audiophile setups. It includes headphone jacks, a USB OTG port, and an HDMI output that supports video resolutions up to 4K.
Additionally, the TY-i60 supports local playback from multiple media sources, including USB flash drives, TF cards, and M.2 NVME SSDs, which greatly enhances the device’s storage capabilities. It also features a function for playing and ripping CDs through USB-C, complete with metadata editing capabilities.
The device features a MALI G52 2EE graphics processor, enabling 4K video decoding and 1080p encoding capabilities. With its innovative design and cutting-edge technology, the Tonewinner TY-i60 stands out as an ideal option for enthusiasts of superior sound quality and contemporary multimedia solutions.
Tonewinner TY-i60 specifications:
- Product Type: Streamer and Multimedia Player
- OS: Android
- Processor: RK3568
- USB Interface: XMOS XU-316
- DAC chip: ES9038
- Internal memory: 4G DDR4 + 64G eMMC
- Inputs: 1x USB-A/ 1x SD card slot/ 1x SSD hard drive slot/ WiFi
- Outputs: 1x balanced XLR line out/ 1x single-ended RCA line out/ 1x optical Toslink/ 1x coaxial/ 1x USB OTG/ 1x HDMI
- Other connectors: RJ45 port (10/100/1000 Mbps) / Trigger output
- WiFi: WiFi 5, 2.4G+5.8G
- Supported sampling rates: PCM 32bit 768kHz, DSD512, MQA
- Supported formats: DSD512 (DSF, DFF, DIFF), MQA, MP3, APE, WAV, FLAC, AIF, AIFF, SACD, ISO, CUE, DTS
- Online music server: Apple Music, QQ Music, Spotify, etc.
- Supported protocols: DLNA, AirPlay
- Network Storage: NAS, SMB V1/V2/V3
- Output supported sampling rates: Optical/Coaxial: PCM 24-bit 192kHz, DSD256 (PCM mode), DSD DoP64/ HDMI: Video + PCM/ XLR/RCA: PCM 32-bit 768kHz, DSD256 (PCM mode, DoP mode, native), DSD512 (PCM mode, native)

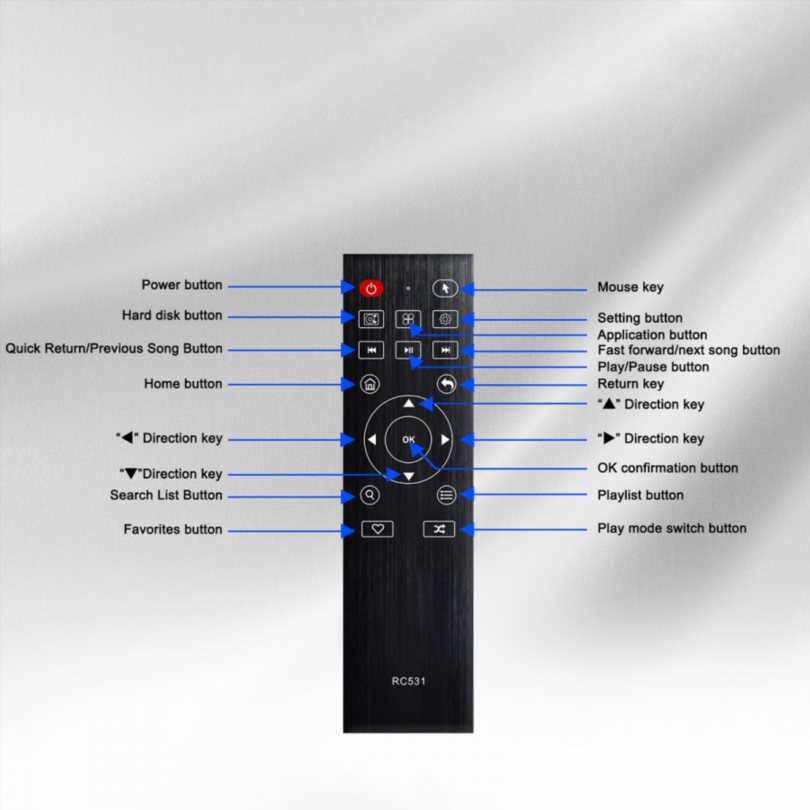

- Device control: Touch screen, remote control, smartphone, TV
- SN: ≥ 115 dB (A-WT, BAL OUT)
- THD: ≤ 0.0006% (1 kHz, BAL OUT)
- Output level: 2Vrms ±1.5dB
- Separation: ≥ 115 dB (BAL OUT)
- Power supply: 100-240V AC
- Power consumption: 50 W / standby: 0.5 W
- Net weight: 2.7 kg
- Gross weight: 3.4 kg
- Dimensions: 300 x 283 x 101 mm

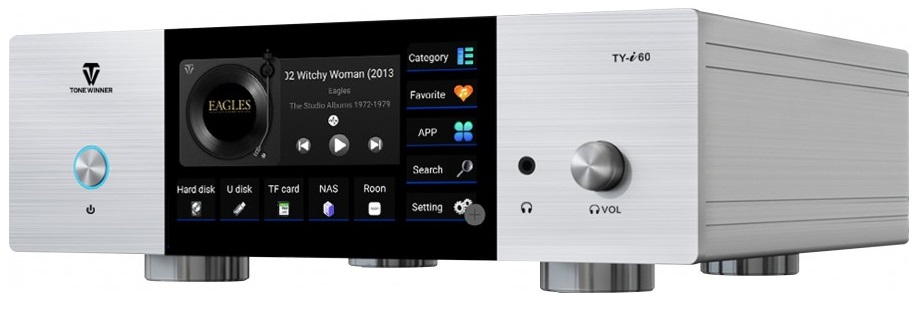

- Color: black or silver
