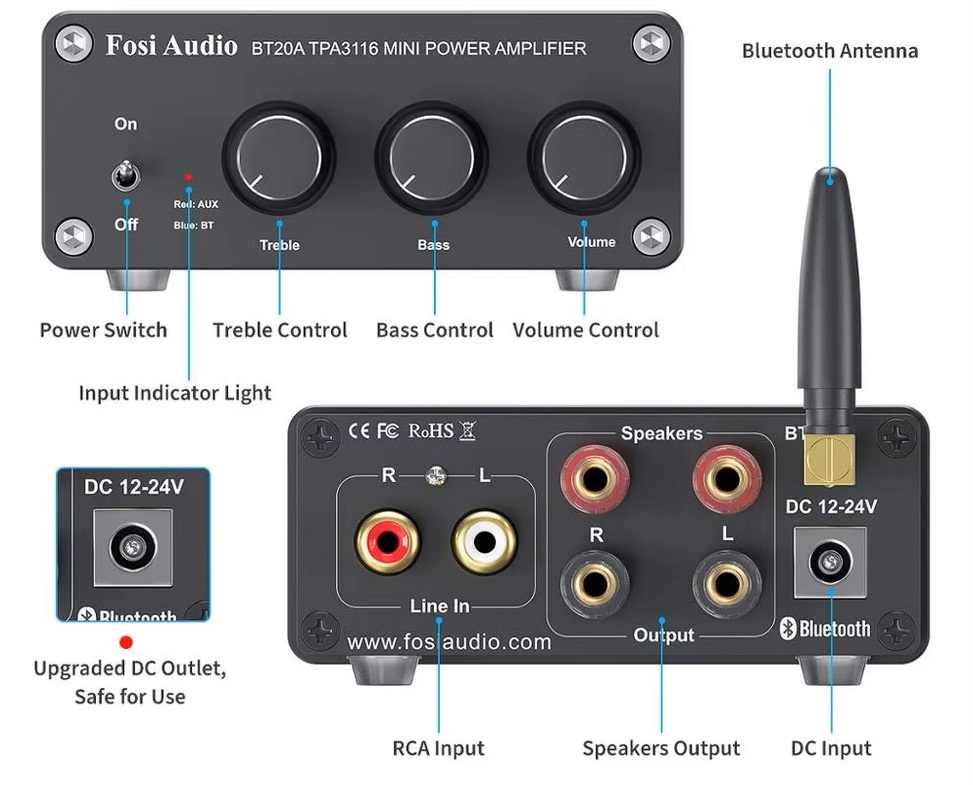

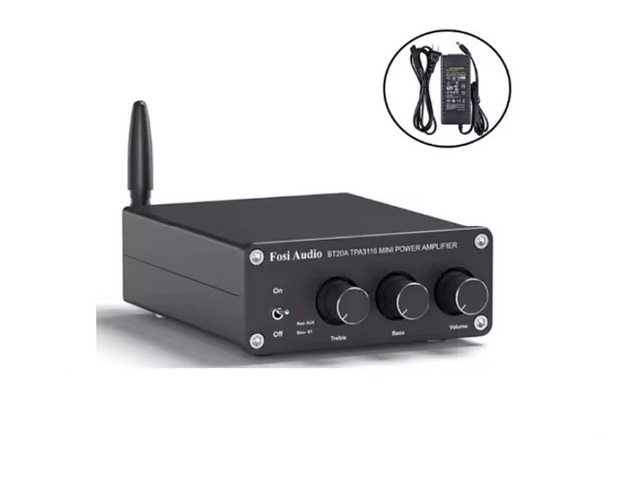

Fosi Audio BT20A-QCC3003 is a sleek and efficient amplifier tailored for home audio setups, delivering exceptional Hi-Fi sound quality. This model features a TPA3116D2 chip and supports a reliable Bluetooth 5.0 connection with a range of up to 15 meters, minimizing signal delay and reducing unwanted noise during playback.
The BT20A-QCC3003 provides a maximum output power of 100W per channel when paired with 4-ohm speakers and powered by a 24V supply. This capability makes it suitable for a range of passive speakers, such as bookshelf, computer, and desktop models. It features both Bluetooth and RCA inputs for versatile connectivity.
Additionally, the amplifier includes a speaker protection circuit that enhances the longevity of the speakers and safeguards against overload during high-volume use. It is specifically designed for passive speakers and accommodates those with an impedance ranging from 2 to 8 ohms.
Fosi Audio BT20A-QCC300 Specifications:
- Output power: up to 100W x 2 (at 4 Ohm and 24V)
- Frequency range: 20 Hz – 20 kHz (±1 dB)
- Total Harmonic Distortion (THD): 0.04%
- Signal to Noise Ratio (SNR): 98 dB
- Input sensitivity: 280 mV
- Power supply: 12-24 V
