The TEAC TN-4D turntable features a unique low-profile brushless DC motor. Its direct drive system allows for a slimmer design, contributing to the turntable’s elegant look. The disc speed control is enhanced by a quartz crystal clock generator, providing exceptional precision and a smooth rotation free from minor fluctuations. The turntable’s chassis boasts excellent anti-resonance properties and is elegantly finished with natural wood veneer. Additionally, the support platter is constructed from aluminum and has a substantial weight, ensuring effective damping of the record.

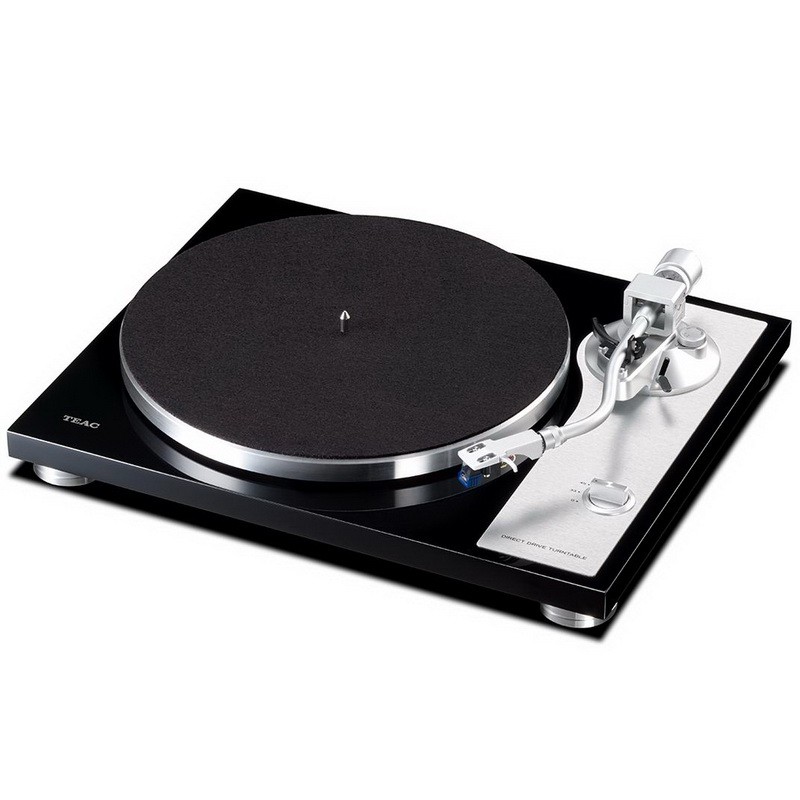

TEAC TN-4D

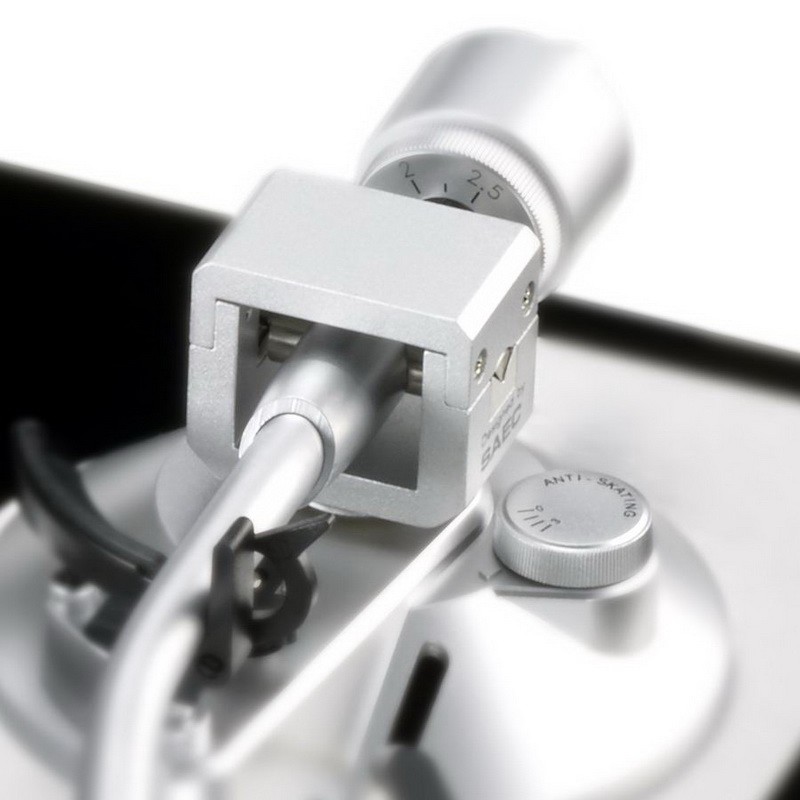

The S-shaped tonearm, designed in partnership with the Japanese firm SAEC, features a statically balanced construction. It comes with a Sumiko Oyster MM (moving magnet) cartridge. The phono preamplifier circuit incorporates advanced high-precision operational amplifiers, specifically the NJM8080 from Japan Radio. The audio signal is transmitted through unbalanced outputs that maintain a low distortion level, ensuring superior sound quality. Additionally, the analog output on RCA connectors is switchable between Phono and LINE, allowing for compatibility with an external phono preamplifier if preferred.
TEAC TN-4D
The correction circuit utilizes low-noise operational amplifiers, specifically the NJM8080, ensuring minimal distortion and delivering high-quality, balanced audio. Additionally, this model features an integrated ADC with a USB output, allowing users to digitize music from vinyl records and transfer it directly to their computer’s hard drive. The TEAC TN-4D can digitize audio at specifications of up to 16 bit / 48 kHz.
The correction circuit utilizes low-noise operational amplifiers, specifically the NJM8080, ensuring minimal distortion and delivering high-quality, balanced audio.

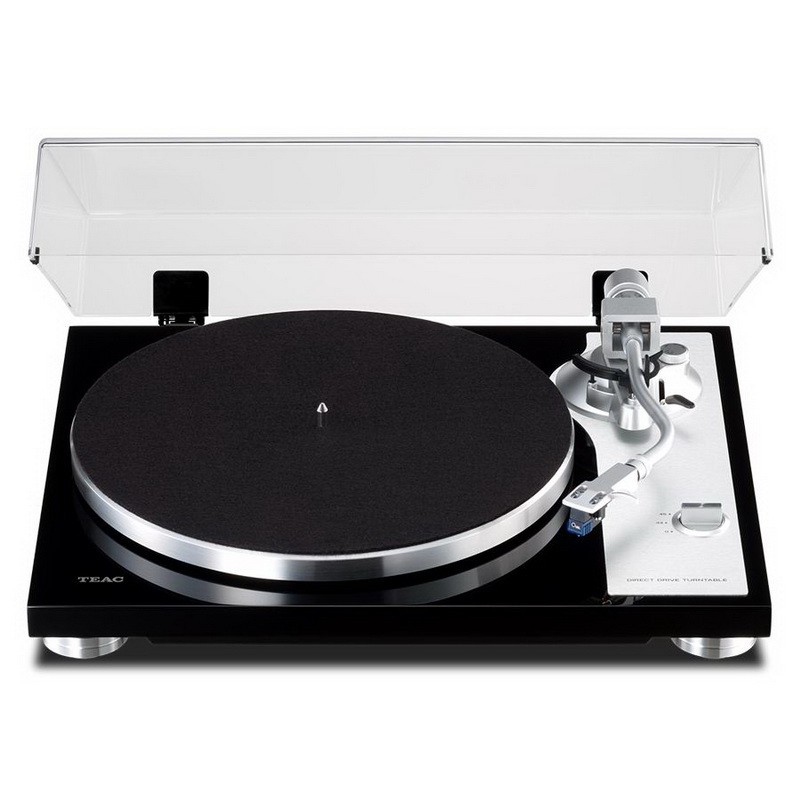

The TEAC TN-4D turntable is sold fully assembled, including a lightweight dust cover. In addition, the S-shaped tonearm design allows for easy cartridge replacement using a simple and versatile headshell. The turntable is available in two finishes: Piano Black (black piano lacquer) or Walnut (walnut veneer).
TEAC TN-4D Specifications:
- Type Direct Drive
- DC Motor, Electronic Speed Switching 33.3, 45 RPM Wow
- & Flutter 0.1%
- Signal-to-Noise Ratio 67 dB
- Tonearm S-shaped, statically balanced
- Tonearm Length 223 mm
- Platter 300 mm, aluminum
- Tonearm Tracking Force Range 0-5 g
- Cartridge Weight Range 4.0 – 13.0 g
- Built-in MM Phono Preamplifier
- Installed MM Cartridge, Sumiko Oyster
- Head Tracking Force Range 1.5 – 2.5 g
- Recommended Tracking Force 2.3 g
- Outputs Phono/Line (RCA), USB
- Output Voltage 4.0 mV (Phono), 224 mV (Line)
- Frequency Response 20 Hz – 20 kHz
- USB Output PCM 16 bit / 48 kHz
- Anti-skating adjustment yes
- Dust Cover Included in the set
- Disc mat, RCA phono cable
- Dimensions (W x H x D) 420 x 117 x 356 mm
- Weight 6.1 kg
