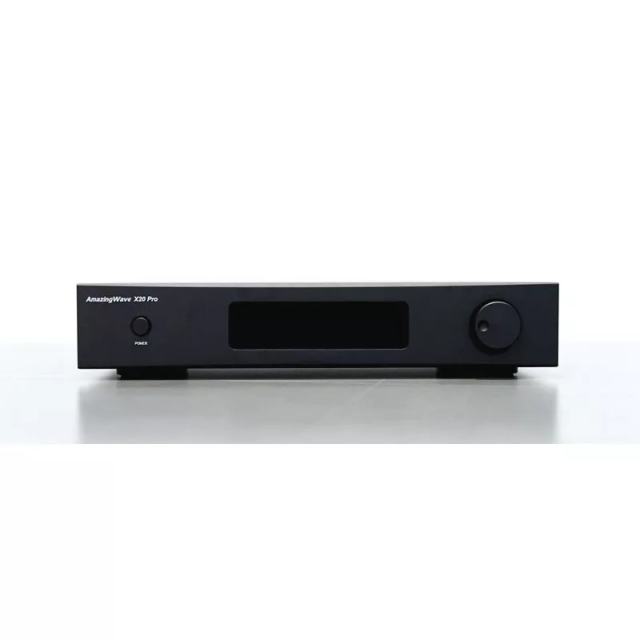

The AmazingWave X20 Pro is an innovative DAC featuring a sleek design crafted from a robust aluminum alloy casing. Its minimalist aesthetic is paired with practical functionality, including an OLED display on the front panel that provides clear indications, along with a volume control that enables the device to function as a preamplifier.
The decoder features an extensive array of outputs, such as coaxial, optical, USB, HDMI IIS, and balanced XLR, facilitating seamless connections to various audio systems. It supports high-resolution playback, accommodating up to PCM 1.768kHz and DSD512 formats.
Significant emphasis has been placed on the design of the power supply. Inside, two specially designed toroidal transformers made from oxygen-free copper and multilayer magnetic insulation are utilized. This configuration minimizes noise levels and enhances the device’s stability. The power supply employs the Sigma22 system, which offers a high degree of voltage regulation accuracy, ensuring both energy efficiency and stable audio signal transmission.
For signal processing, advanced digital technology utilizing FPGA/CPLD is implemented. This enables precise decoding of audio data, featuring a 24-bit R2R resistive array for analog output. The integrated control and calibration system enhances sound precision, with all components meticulously selected and matched to ensure exceptional reliability.
The AmazingWave X20 Pro is an excellent choice for those seeking a dependable and versatile device for high-quality audio playback.
AmazingWave X20 Pro Specifications:
- Input interfaces: coaxial, optical, USB, HDMI IIS, Bluetooth (aptX-HD/LDAC)
- Output interfaces: RCA (single-end), XLR (balanced)
- Supported formats: PCM 44.1–768 kHz, DSD64–DSD512
- Dimensions: 350×250×60 mm
- Weight: 3.9 kg
- Power supply: AC 110V/220V
- Power consumption: 25 W.
