The Marantz AMP 10 is a top-of-the-line 16-channel amplifier with 200W per channel power, current feedback amplification and balanced line input. Create a high-end home theater experience with AV 10. Marantz HDAM, current feedback amplification and line balanced inputs. Built on a long-standing rich heritage, designed with timeless style and delivering peak performance, the Marantz CINEMA Series is the foundation of the world’s most demanding home theaters. The company’s 16-channel Class D power amplifier is designed to work in conjunction with the Marantz AV 10 reference home theater processor .

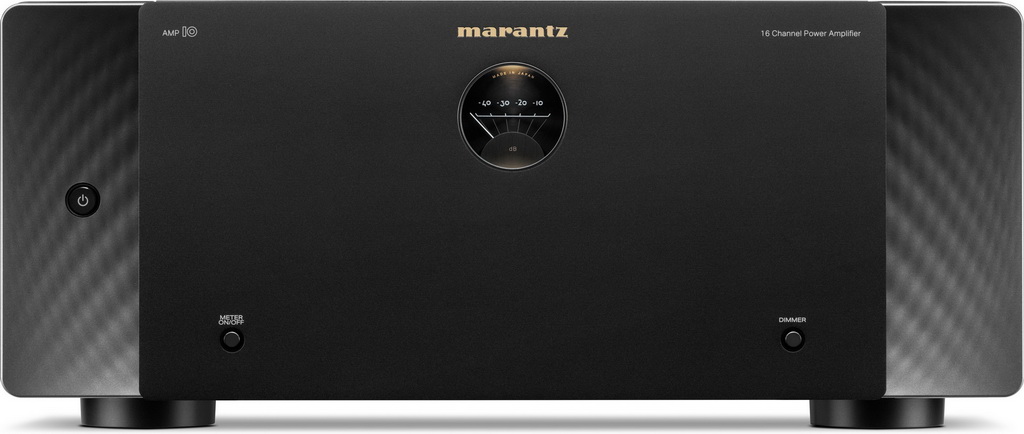

The Marantz AMP 10 features the iconic Marantz level indicator in the window, premium materials and subtle side lights that illuminate the front fascia. Carefully selected connectivity options, flexible speaker placement and fine-tuning capabilities ensure AMP 10 is customized just for you. A cinema is an integral part of your home. That’s why Marantz offers a wide range of connectors and configuration options to make the AMP 10 the ideal device. Customize your speaker placement to suit your space and customize it with the included Audyssey MultEQ XT.

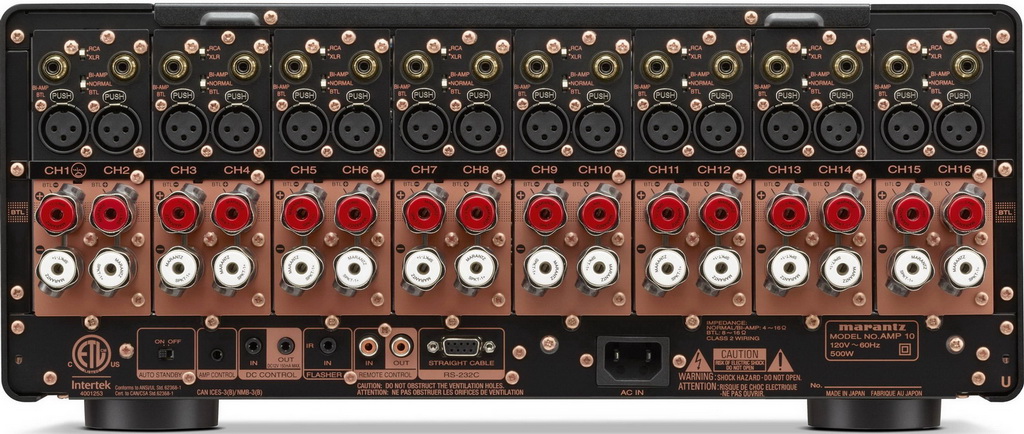

Carefully designed connectivity options and selectable amplifier modes allow you to make the Marantz AMP 10 exactly the way you want it. Ample input and output capabilities make it easy to upgrade your system as your home theater components grow. A home theater is an investment in your own pleasure and well-being. With extensive connectivity and a powerful technology foundation, you can add new components to expand your system for years to come.
Breathtaking spaciousness, warm and rich sound, exceptional detail and lifelike dynamics are the legendary hallmarks of Marantz sound. AMP 10 is designed with best-in-class technology to deliver incredible power output; a large number of channels; and the dynamic, rich, warm sound that Marantz is famous for. An ideal partner for the Marantz AV 10
AV processor Marantz AMP 10 characteristics Minimum frequency: 5 Hz Maximum frequency: 70000 Hz Signal-to-noise ratio: 110 dB Total harmonic distortion: 0.05% Amplification channels: 16 Power per channel (2 Ohms): 2×400 W Power per channel (8 Ohms): 2×200, 2×400 W Number of analog inputs 2RCA: 8 Number of analog inputs XLR: 8 Balanced input Preamplifier output RCA line outputs: 2 Power consumption: 500 W Power consumption in standby mode: 0.2 W Dimensions (HxWxD) : 188x422x488 mm Weight: 19.8 kg
